Tiller 1 - Cub Cadet Tiller Attachment Hitch and Shields Parts Diagram

Tiller Attachment

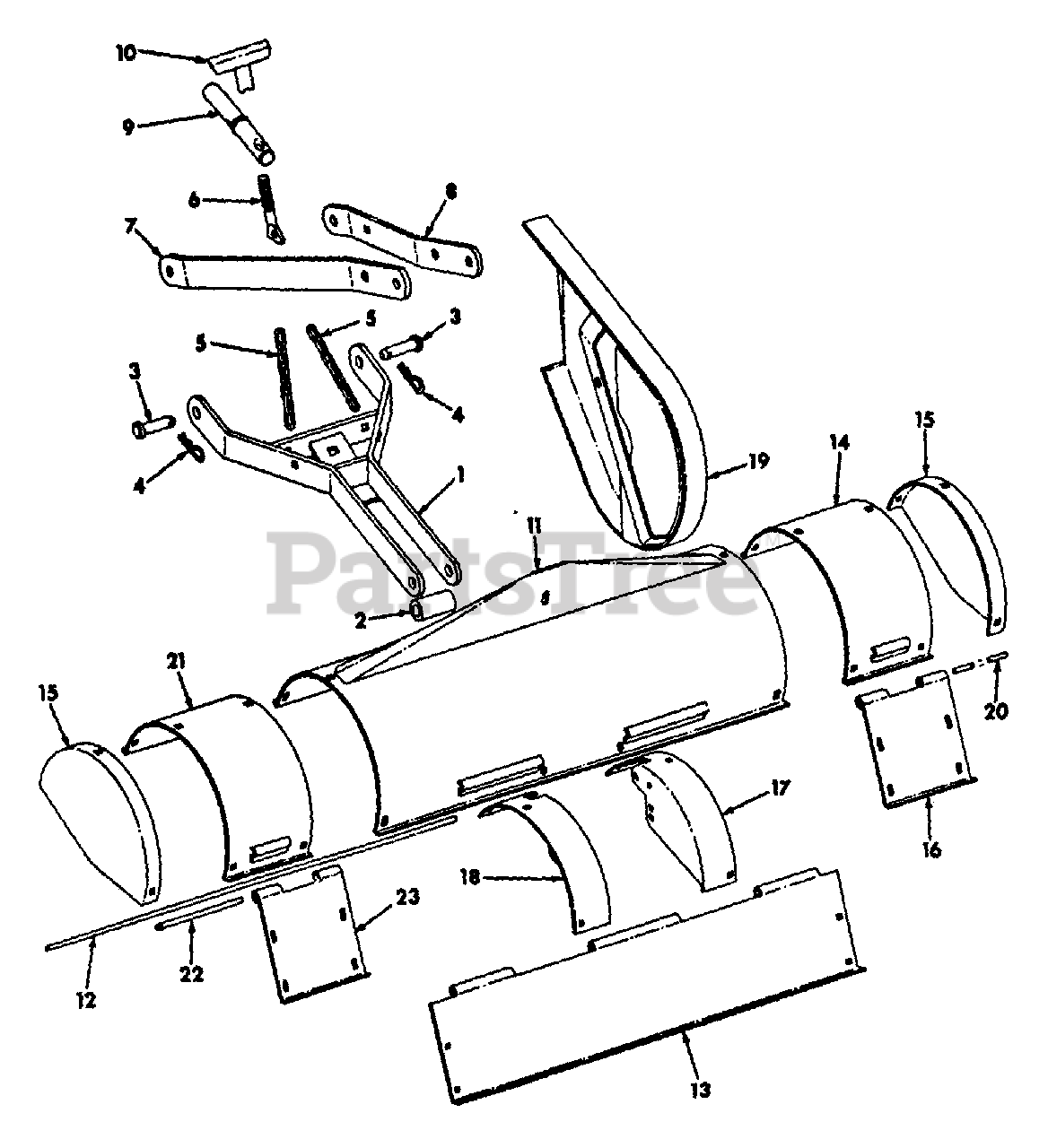

Hitch and Shields Parts Diagram

  • Title

1

Cub Cadet IH-485286-R3

BRACKET ASSY, LOWER SUPPORT

$

$

Not available

460869-R1

NUT, 1/2-13 C-Z HEX. LOCK

$

$

Not available

180192

SCREW, 1/2-13 x 3-1/2 C-Z HEX-HD CAP

$

$

Not available

2

Cub Cadet IH-485288-R1

BUSHING, PIVOT

$

$

Not available

3

Cub Cadet IH-485289-R1

PIN, CLEVIS
(Superseded to 911-0231)

$6.49

$

In Stock, only 3 left!

0

4

Cub Cadet IH-480523-R1

PIN, QUICK ATTACHING COT.
(Superseded to 714-0117)

$4.49

$

In Stock, Qty 16

0

5

Cub Cadet IH-485352-R1

CHAIN LIFT

$

$

Currently unavailable

16888-R1

BOLT 5/16-18 x 1-1/4 C-Z SQ-NK CRG

$

$

Not available

Cub Cadet 9412083

NUT, 5/16-18 C-Z STOVER LOCK

$

$

Currently unavailable

6

485290-R1

ROD, ADJUSTMENT

$

$

Not available

Cub Cadet IH-180081

SCREW, 5/16-18 x 1-1/4 C-Z HEX-HD CAP
(Superseded to 710-0528)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-9412083

NUT, 5/16-18 HEX. LOCK
(Superseded to 912-3009)

$

$

Not available

120386

WASHER, 5/16 x 3/4 x .051 C-Z

$

$

Not available

7

485291-R1

BAR, SUPPORT LH

$

$

Not available

8

485292-R1

BAR, SUPPORT RH

$

$

Not available

460869-R1

NUT, 1/2-13 C-Z HEX. LOCK

$

$

Not available

189314

SCREW, 1/2-13 x 4-3/4 C-Z HEX-HD CAP

$

$

Not available

9

485294-R1

SHAFT ASSY, SUPPORT

$

$

Not available

Cub Cadet 137263

PIN, 3/16 x 2 COT.

$

$

Currently unavailable

10

Cub Cadet IH-485295-R2

TEE ASSY, DEPTH CONTROL

$

$

Not available

11

485278-R1

SHIELD ASSY, SAFETY

$

$

Not available

Cub Cadet IH-16897-R1

BOLT, 5/16-18 x 3/4 C-Z SQ-NK CRG
(Superseded to 710-0451)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-9412083

NUT, 5/16-18 C-Z HEX. LOCK
(Superseded to 912-3009)

$

$

Not available

120386

WASHER, 5/16 x 3/4 x .051 C-Z

$

$

Not available

12

485280-R1

ROD, PIVOT

$

$

Not available

13

485279-R1

PLATE, BACK

$

$

Not available

14

Cub Cadet IH-485281-R1

SHIELD ASSY, EXTENSION

$

$

Not available

18626-R1

BOLT, 1/4-20 x 1/2 C-Z SQ-NK CRG

$

$

Not available

Cub Cadet IH-273924

NUT, 1/4-20 C-Z HEX. LOCK

$

$

Currently unavailable

Cub Cadet IH-16559-R1

WASHER, 17/64 x 5/8 x .036 C-Z
(Superseded to 936-3020)

$

$

Not available

15

Cub Cadet IH-485282-R1

CAP, END

$

$

Currently unavailable

16

Cub Cadet IH-485283-R1

PLATE, EXTENSION

$

$

Not available

18626-R1

BOLT, 1/4-20 x 1/2 C-Z SQ-NK CRG

$

$

Not available

Cub Cadet IH-273924

NUT, 1/4-20 C-Z HEX. LOCK

$

$

Currently unavailable

Cub Cadet IH-16559-R1

WASHER, 17/64 x 5/8 x .036 C-Z
(Superseded to 936-3020)

$

$

Not available

17

485276-R1

SHIELD, MOUNTING BRACKET RH

$

$

Not available

18

485277-R1

SHIELD, MOUNTING BRACKET LH

$

$

Not available

142680-H

BOLT, 3/8-16 x 2-1/2 C-Z TYPE 4

$

$

Not available

Cub Cadet IH-9411655

NUT, 3/8 C-Z HEX. LOCK
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

19

Cub Cadet IH-485293-R1

GUARD ASSY. BELT

$

$

Not available

12872-R1

BOLT, 5/16-18 x 1 C-Z SQ-NK CRG

$

$

Not available

Cub Cadet IH-9412083

NUT, 5/16-18 C-Z HEX. LOCK
(Superseded to 912-3009)

$

$

Not available

20

485284-R1

ROD, PIVOT

$

$

Not available

21

485281-R1

SHIELD ASSY, EXTENSION

$

$

Not available

18626-R1

BOLT, 1/4-20 x 1/2 C-Z SQ-NK CRG

$

$

Not available

Cub Cadet 273924

NUT, 1/4-20 C-Z HEX. LOCK

$

$

Currently unavailable

16559-R1

WASHER, 17/64 x 5/8 x .036 C-Z

$

$

Not available

22

Cub Cadet IH-485284-R1

ROD, PIVOT

$

$

Not available

23

485283-R1

PLATE, EXTENSION

$

$

Not available

18626-R1

BOLT, 1/4-20 x 1/2 C-Z SQ-NK CRG

$

$

Not available

Cub Cadet IH-273924

NUT, 1/4-20 C-Z HEX. LOCK

$

$

Currently unavailable

Cub Cadet IH-16559-R1

WASHER, 17/64 x 5/8 x .036 C-Z
(Superseded to 936-3020)

$

$

Not available
