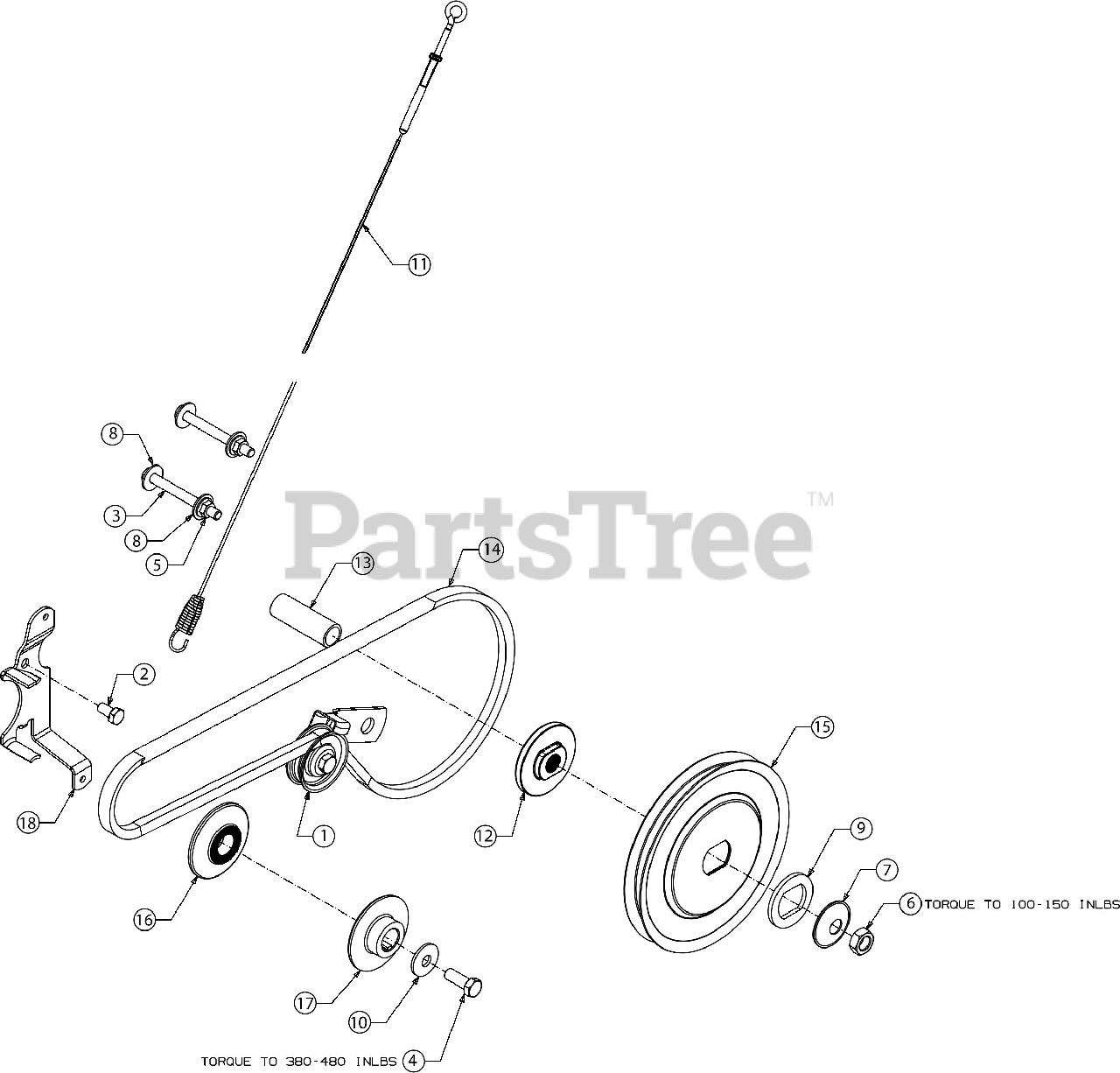

TI 110 (CMXGVAM1144043) (21B-34M8B93) - Craftsman 24" Tiller (2023) Drive Parts Diagram

24" Tiller

Drive Parts Diagram

  • Title

1

MTD 686-0088

IDLER BRACKET ASSEMBLY

$143.99

$

Usually ships in 3-6 days

0

1

MTD 710-3005

SCREW 3/8-16 X 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

1

MTD 712-0266A

JAM LOCK NUT

$3.99

$

In Stock, Qty 20+

0

1

MTD 756-0313

IDLER PULLEY

$26.99

$

In Stock, Qty 5

0

1

MTD 786-0144-0637

IDLER BRACKET

$13.99

$

Usually ships in 3-6 days

0

1

MTD 786-0149

BELT KEEPER

$9.99

$

Usually ships in 3-6 days

0

2

MTD 710-0170

HEX SCREW 5/16-24 X .62

$6.99

$

In Stock, only 1 left!

0

3

MTD 710-0189

HEX SCREW 5/16-18 X 3.00

$6.49

$

In Stock, Qty 5

0

4

MTD 710-1039

SCREW 3/8-24 X 1.00 GR8

$4.49

$

In Stock, Qty 20+

0

5

MTD 712-0720

FLANGE NUT 5/16-18

$4.99

$

Usually ships in 3-6 days

0

6

MTD 712-3029

NUT

$6.99

$

In Stock, Qty 6

0

7

MTD 736-0112

BELL WASHER .535 ID X1.50 OD X.052

$9.99

$

Usually ships in 3-6 days

0

8

MTD 736-0242

BELL WASHER .337 X.867 X .057

$4.49

$

In Stock, Qty 20+

0

9

MTD 736-0312

RETAINING WASHER

$3.99

$

Usually ships in 3-6 days

0

10

MTD 936-0452

BELL WASHER
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 5

0

11

MTD 746-04172

FORWARD CLUTCH CABLE
(Superseded to 746P04172)

$46.99

$

In Stock, only 1 left!

0

12

MTD 948-0350

PULLEY MOUNTING ADAPTER

$21.99

$

Usually ships in 3-6 days

0

13

MTD 950-0892

SPACER

$11.99

$

Usually ships in 3-6 days

0

14

MTD 954-0428

V-BELT

$34.99

$

In Stock, only 1 left!

0

15

MTD 756-0585

PULLEY

$41.99

$

Usually ships in 3-6 days

0

16

MTD 756-0971

ENGINE PULLEY INNER HALF

$14.99

$

Usually ships in 3-6 days

0

17

MTD 756-0972

ENGINE PULLEY OUTER HALF

$16.99

$

Usually ships in 3-6 days

0

18

MTD 786-0039B-0637

BELT COVER BRACKET

$47.99

$

Usually ships in 3-6 days

0
