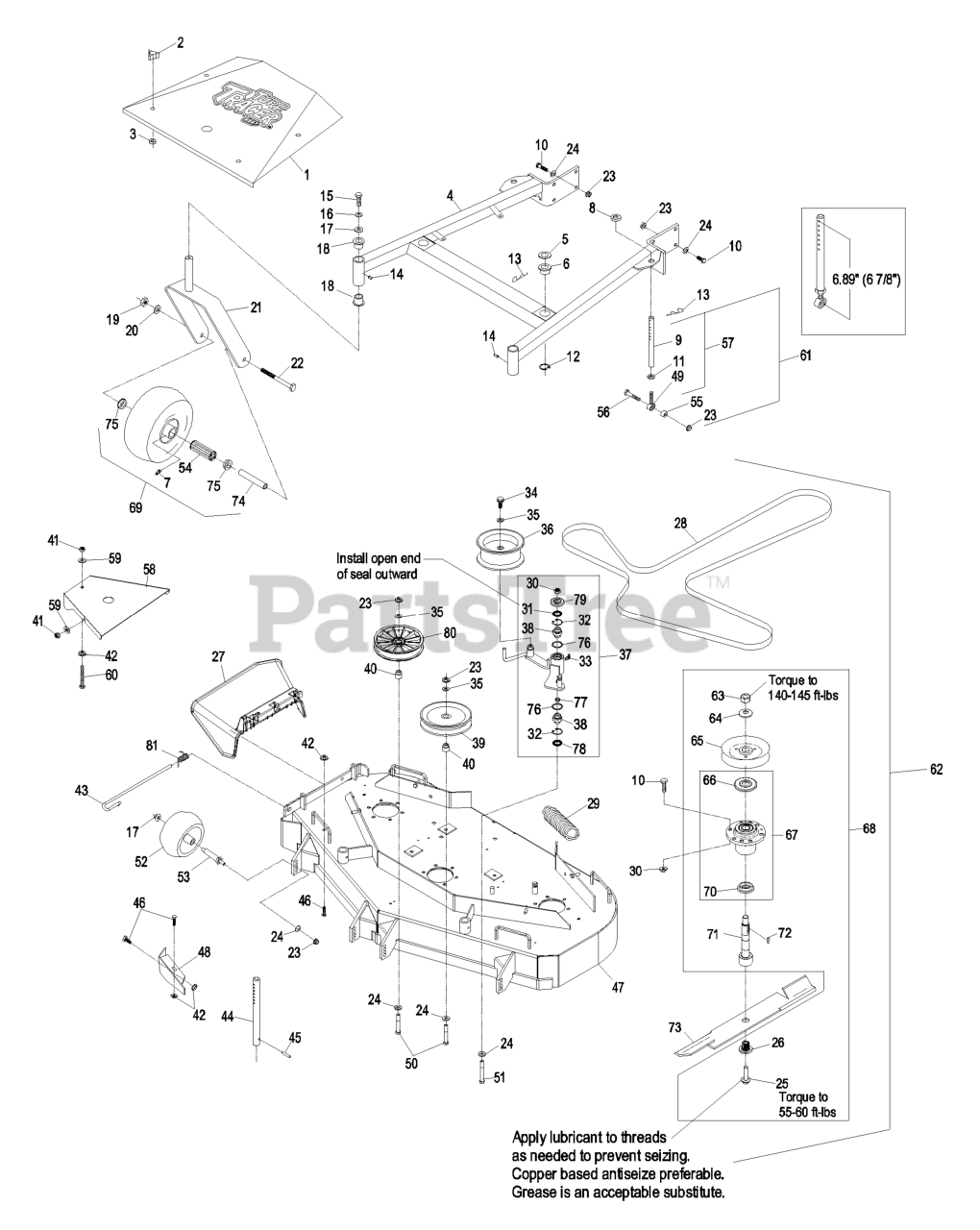

Exmark THP19KAE523 - Exmark 52" Turf Tracer HP Walk-Behind Mower, 19hp Kawasaki (SN: 790000 - 849999) (2009) 48" Mower Deck Parts Lookup with Diagrams

1

Exmark 1-414387

116-2711

(Superseded to 116-2711) 

Note: (1-413101-01)

$329.99

$

In Stock, only 1 left!

2

Exmark 1-414310

DECK SUPPORT W/BSHGS 48"

Note: (1-412110-01)

$1155.99

$

Usually ships in 3-6 days

5

Exmark 1-413425

SPACER-DECK SUPPORT

$6.49

$

In Stock, Qty 14

6

Exmark 302-61

FITTING-GREASE

$11.99

$

In Stock, only 2 left!

8

Exmark 1-413525

LINK,SUPPORT

$44.99

$

In Stock, only 2 left!

10

Exmark 32120-33

RING-RETAINING

$7.49

$

In Stock, only 4 left!

13

Exmark 1-806009

PIN,HAIR COTTER

$2.99

$

In Stock, Qty 20+

14

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

18

Exmark 1-303514

BEARING-FLANGED

$12.99

$

In Stock, Qty 20+

19

Exmark 1-522143-01

116-7941-01

(Superseded to 116-7941-01) 

$90.99

$

In Stock, Qty 7

22

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

25

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

$8.49

$

In Stock, Qty 20+

26

Exmark 103-3037

BUSHING,SPLINED

$22.99

$

In Stock, Qty 20+

27

Exmark 109-5151

CHUTE DEFLECTOR XRK M056

$52.99

$

In Stock, Qty 11

28

Exmark 1-413093

BELT - V, B

$137.99

$

In Stock, only 2 left!

29

Exmark 103-3330

116-6317

(Superseded to 116-6317) 

$28.99

$

In Stock, Qty 7

30

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

32

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

34

Exmark 1-413099

116-4666

(Superseded to 116-4666) 

$67.99

$

In Stock, Qty 17

37

Exmark 103-8585

KIT, DECK IDLER TTHP48&52

Note: (103-7356-03) Idler arm kit also includes items 24 & 51.

$200.99

$

In Stock, only 1 left!

38

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

39

Exmark 1-413113

BUSHING-IDLER

$5.99

$

In Stock, only 1 left!

41

Exmark 109-8854

PIN-CHUTE

$15.99

$

In Stock, only 1 left!

44

Exmark 1-603001

ROD,DECK SUPPORT

$45.99

$

In Stock, only 3 left!

45

Exmark 1-806332

32121-15

(Superseded to 32121-15) 

$1.99

$

In Stock, Qty 7

46

Exmark 1-414384

ASM,DECK W/DECALS TTHP/MH

Note: (116-0614-01)

$2638.99

$

Usually ships in 3-6 days

48

Exmark 1-522480-01

116-2297-01

(Superseded to 116-2297-01) 

$28.99

$

In Stock, only 1 left!

49

Exmark 1-613204

BALLJOINT

$31.99

$

In Stock, only 2 left!

50

Exmark 1-603299

ROLLER-SCALP, ANTI

Note: Kit 103-4051 includes antiscalp roller, spacer, & mounting hardware.

$23.99

$

In Stock, Qty 10

53

Exmark 99-2842

126-2928

(Superseded to 126-2928) 

$27.99

$

In Stock, Qty 5

54

Note: Link assembly nominal length is 6.89" (or approximately 6 7/8") between center of ball joint and center of furthest hole. See diagram on next page. Initially adjust both links to this dimension, then adjust to where both links are equally supporting rear

$147.99

$

In Stock, Qty 5

58

Exmark 103-2970-01

SHIELD,BELT

$33.99

$

In Stock, Qty 5

59

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

60

Exmark 1-800017

BOLT,TAP HH

$6.99

$

In Stock, only 2 left!

61

Exmark 1-411532

KIT,SUPPORT LINK W/PIN

$147.99

$

In Stock, Qty 5

62

Exmark 103-0321

Asm, Deck Complete

$

Currently unavailable 

63

Exmark 3217-46

NUT-HH

$12.99

$

In Stock, Qty 13

64

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 14

65

Exmark 1-413424

SHEAVE,W/HUB 5.72

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$67.99

$

In Stock, Qty 8

66

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize.

$5.49

$

In Stock, only 2 left!

67

Exmark 103-8280

KIT, CUTTER HOUSING

$254.99

$

In Stock, only 3 left!

68

Exmark 103-9081

ASM, CUTTER HSG

$438.99

$

In Stock, only 1 left!

69

Exmark 103-2171

KIT, SP CASTER WHEEL REPL

$126.99

$

In Stock, only 4 left!

70

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

71

Exmark 103-9071

KIT, SPLINED SPINDLE 103-

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-seize. Kit includes items 25, 26, 63, 64, & 72.

$220.99

$

In Stock, only 3 left!
