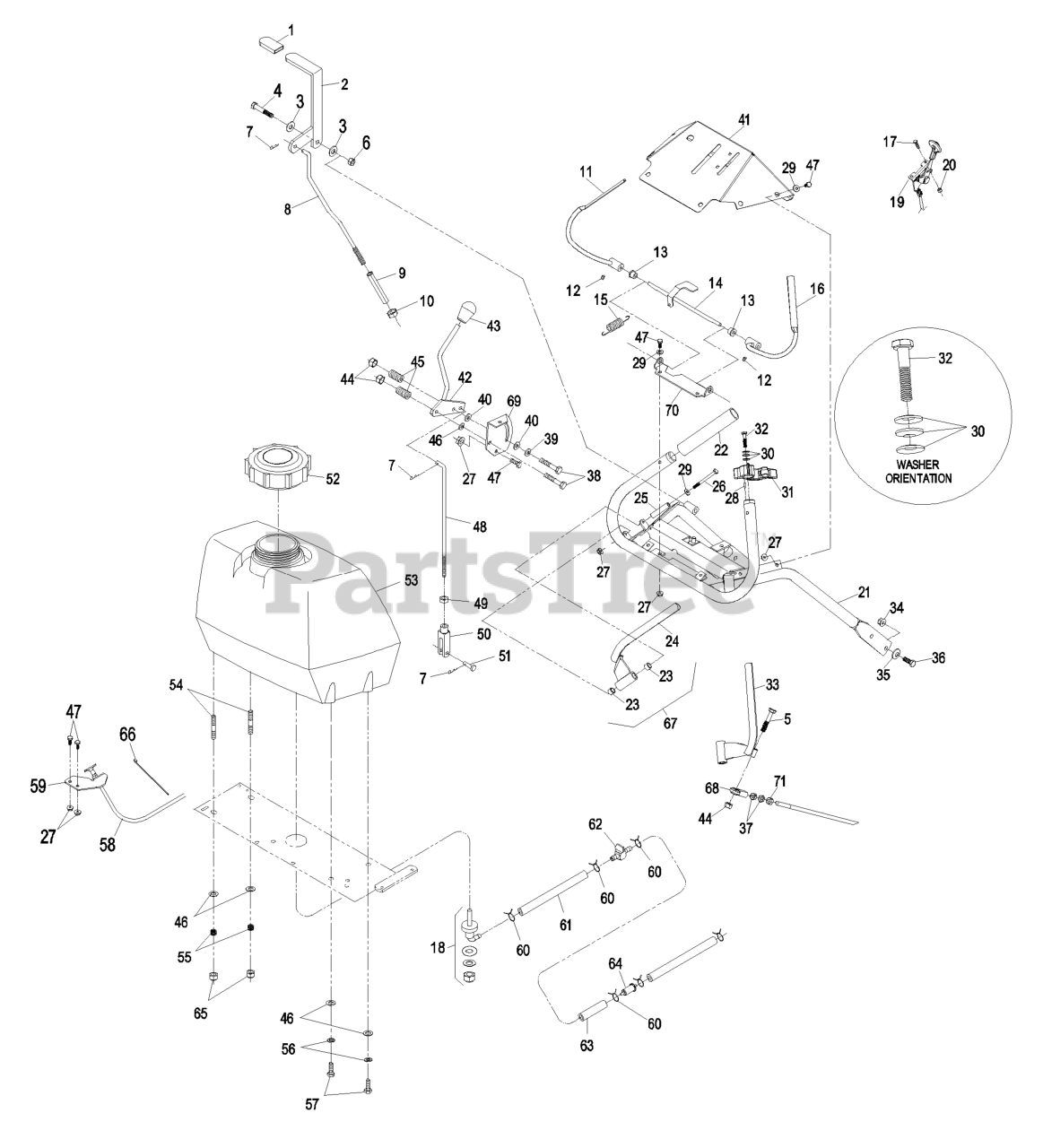

Exmark THP19KAE483 - Exmark 48" Turf Tracer HP Walk-Behind Mower, 19hp Kawasaki (SN: 790000 - 849999) (2009) ECS Upper Handles and Controls Parts Lookup with Diagrams

1

Exmark 1-303020

GRIP-LEVER

$2.99

$

In Stock, Qty 6

2

Exmark 1-414234

116-6334

(Superseded to 116-6334) 

Note: (1-412295-03)

$59.99

$

In Stock, only 3 left!

3

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

4

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

5

Exmark 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

6

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

7

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

8

Exmark 103-1149

LINK,BLADE ENGAGE (PLTD)

$25.99

$

In Stock, only 4 left!

9

Exmark 1-413279

TURNBUCKLE

$45.99

$

In Stock, only 1 left!

10

Exmark 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

11

Exmark 103-1566-03

116-4079

(Superseded to 116-4079) 

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs, where studs are inserted into tank.

$33.99

$

In Stock, only 1 left!

12

Exmark 1-803322

SCREW-SET

Note: Use Pro-Lock nut type, Part no. 1-840022 (.5cc tube) on setscrew threads, on thumblatch screws and on fuel fitting.

$1.49

$

In Stock, Qty 5

13

Exmark 1-303365

BUSHING-NYLON

$5.49

$

In Stock, Qty 10

14

Exmark 103-0769-03

WLD,OPC LEVER AXLE

$42.99

$

In Stock, Qty 7

15

Exmark 1-303363

SPRING-EXTENSION

$6.49

$

In Stock, only 1 left!

16

Exmark 103-1567-03

116-4080

(Superseded to 116-4080) 

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs, where studs are inserted into tank.

$33.99

$

In Stock, only 1 left!

17

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

18

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Pro-Lock nut type, Part no. 1-840022 (.5cc tube) on setscrew threads, on thumblatch screws and on fuel fitting.

$36.99

$

In Stock, only 2 left!

19

Exmark 109-3958

CONTROL-THROTTLE

$41.99

$

In Stock, only 2 left!

20

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

21

Exmark 103-0770-03

WLD,UPPER ECS HANDLE

$608.99

$

Usually ships in 3-6 days

22

Exmark 103-0815

GRIP-BAR, HANDLE

$10.99

$

In Stock, Qty 10

23

Exmark 1-413152

BUSHING-SLEEVE

$2.99

$

In Stock, Qty 8

24

Exmark 103-2466-03

103-2514

(Superseded to 103-2514) 

$127.99

$

In Stock, only 4 left!

25

Exmark 103-0027

BUSHING-LEVER, DRIVE

$20.99

$

In Stock, only 3 left!

26

Exmark 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

27

Exmark 32128-33

NUT-HF

Note: Electric start only.

$0.99

$

In Stock, Qty 6

Exmark 32128-33

NUT-HF

Note: Manual start only.

$0.99

$

In Stock, Qty 6

28

Exmark 103-0464

126-2925

(Superseded to 126-2925) 

$1.49

$

In Stock, only 2 left!

29

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

30

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

31

Exmark 103-1371

ASM,LATCH RH THUMB

Note: (Shown)

$28.99

$

In Stock, Qty 5

Exmark 103-1372

ASM,LATCH LH THUMB

Note: (Not Shown)

$28.99

$

In Stock, only 1 left!

32

Exmark 103-0235

SCREW-HH

Note: Use Pro-Lock nut type, Part no. 1-840022 (.5cc tube) on setscrew threads, on thumblatch screws and on fuel fitting.

$1.49

$

In Stock, Qty 19

33

Exmark 103-2465-03

116-4082

(Superseded to 116-4082) 

$51.99

$

Usually ships in 3-6 days

34

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

35

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

36

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

37

Exmark 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

38

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

39

Exmark 1-603716

WASHER-FRICTION

$5.49

$

In Stock, only 2 left!

40

Exmark 1-323244

WASHER-FRICTION

$7.99

$

Usually ships in 3-6 days

41

Exmark 109-4650

ASM,CONSOLE W/DECALS

Note: (109-4649-03) Electric start only.

$

Not available 

Exmark 109-4651

ASM,CONSOLE W/DECALS

Note: (109-4649-03) Manual start only.

$

Not available 

42

Exmark 103-0773

116-8632

(Superseded to 116-8632) 

$62.99

$

In Stock, only 1 left!

43

Exmark 103-0423

KNOB, FE.LCKG. BLACK

$22.99

$

Usually ships in 3-6 days

44

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

45

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

46

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

47

Exmark 321-3

SCREW-HH

Note: Electric start only.

$1.49

$

In Stock, Qty 20+

Exmark 321-3

SCREW-HH

Note: Manual start only.

$1.49

$

In Stock, Qty 20+

48

Exmark 1-413225

ROD,SPEED CONTROL

$15.99

$

In Stock, Qty 5

49

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

50

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

51

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

52

Exmark 109-0346

CAP-FUEL, GAS

$21.99

$

In Stock, only 1 left!

53

Exmark 103-2893

ASM,FUEL TANK W/B

$276.99

$

Usually ships in 3-6 days

54

Exmark 1-633023

STUD

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on inside of bore of OPC hub and on fuel tank studs, where studs are inserted into tank.

$6.49

$

Usually ships in 3-6 days
