THP17KA483 - Exmark 48" Turf Tracer HP Walk-Behind Mower, 17hp Kawasaki (SN: 670000 - 719999) (2007) Manual Start Parts Diagram

48" Turf Tracer HP Walk-Behind Mower, 17hp Kawasaki

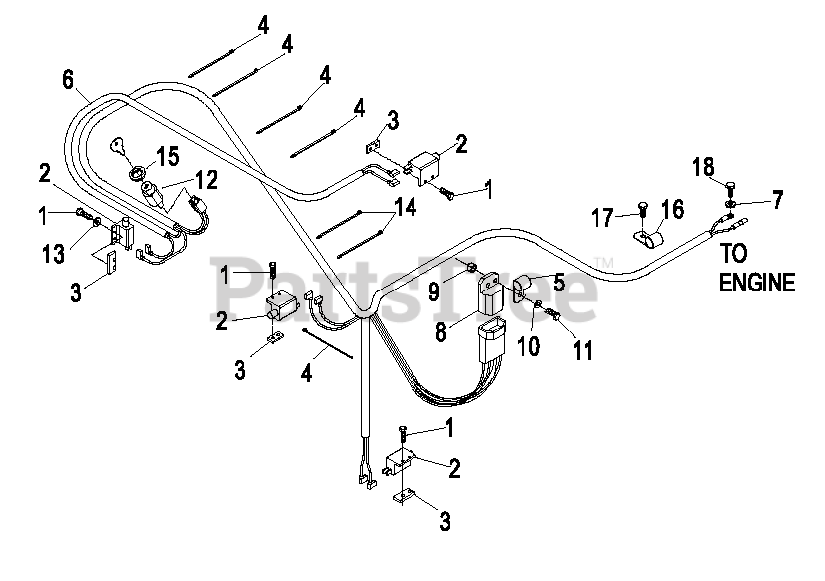

Manual Start Parts Diagram

  • Title

1

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

2

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

3

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

4

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

5

Exmark 1-323229

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

6

Exmark 103-2005

HARNESS,WIRING KA PULL ST

$86.99

$

In Stock, only 3 left!

0

7

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

8

Exmark 1-323430

MODULE-INTERLOCK

$140.99

$

In Stock, only 1 left!

0

9

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

10

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Exmark 1-403121

SWITCH & KEY (INCLUDES NU

$22.99

$

In Stock, only 3 left!

0

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 7

0

13

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

15

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 6

0

16

Exmark 1-413510

CLIP-LOOM

$2.99

$

In Stock, Qty 13

0

17

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

18

Exmark 33113-016

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0
