THP17KA483 - Exmark 48" Turf Tracer HP Walk-Behind Mower, 17hp Kawasaki (SN: 670000 - 719999) (2007) Electrical Group Parts Diagram

48" Turf Tracer HP Walk-Behind Mower, 17hp Kawasaki

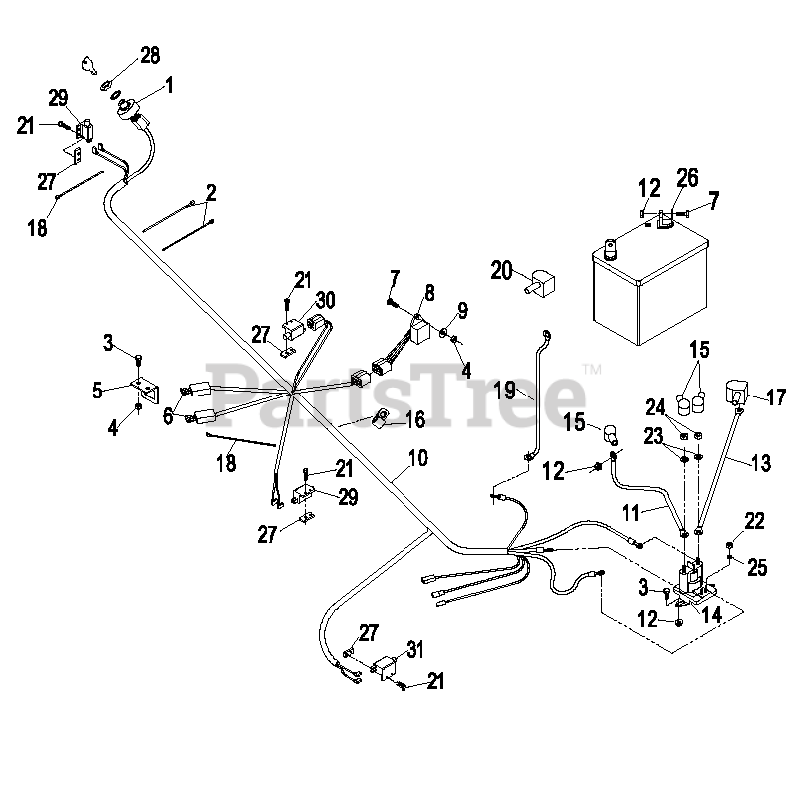

Electrical Group Parts Diagram

  • Title

1

Exmark 1-543070

SWITCH,IGNITION

$46.99

$

In Stock, Qty 16

0

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

2

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

3

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Exmark 1-323442-01

BRACKET,FUSE

$

$

Not available

6

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.99

$

In Stock, only 3 left!

0

7

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Exmark 1-613198

MODULE-OPC NO TIME DELAY

$242.99

$

In Stock, only 4 left!

0

9

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Exmark 103-2006

HARNESS,WIRING ELEC ST

Note: Use dielectric grease on all electrical connectors.

$249.99

$

Usually ships in 3-6 days

0

11

Exmark 1-633306

109-7620
(Superseded to 109-7620)

$27.99

$

In Stock, only 1 left!

0

12

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

13

Exmark 1-603490

109-7628
(Superseded to 109-7628)

$30.99

$

In Stock, only 1 left!

0

14

Exmark 1-513075

117-1197
(Superseded to 117-1197)

$47.99

$

In Stock, Qty 20+

0

15

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 1 left!

0

16

Exmark 1-603727

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

0

17

Exmark 1-543391

109-2407
(Superseded to 109-2407)

$5.49

$

In Stock, only 2 left!

0

18

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

19

Exmark 1-413540

CABLE-BATTERY, NEGATIVE

$14.99

$

Usually ships in 3-6 days

0

20

Exmark 1-543390

INSULATOR, BATTERY -

$8.49

$

Usually ships in 3-6 days

0

21

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

22

Exmark 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

23

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

24

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

25

Exmark 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

26

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 18

0

27

Exmark 1-633181

PLATE-TAPPED

$6.99

$

In Stock, Qty 8

0

28

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 20+

0

29

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$20.99

$

In Stock, Qty 20+

0

30

Exmark 1-633111

SWITCH

$22.99

$

In Stock, Qty 20+

0

31

Exmark 1-513152

SWITCH-CLOSED, NORMALLY

$14.99

$

In Stock, Qty 11

0
