TH18-54530 - Kohler Triad Engine, Made for CPD, 18hp, 13.4kW Ignition/Electrical Parts Diagram

Triad Engine, Made for CPD, 18hp, 13.4kW

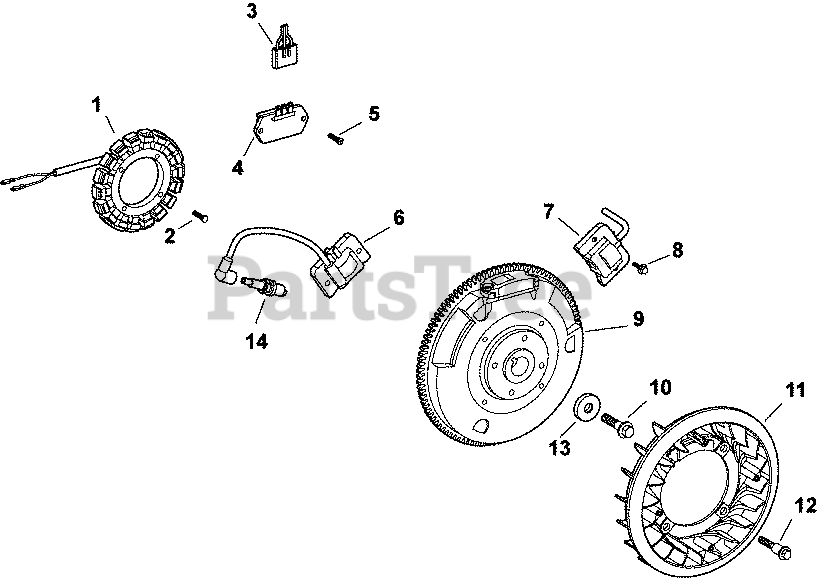

Ignition/Electrical Parts Diagram

  • Title

1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (includes 25 452 01-S)

$149.99

$

In Stock, Qty 5

0

2

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

3

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$24.99

$

In Stock, only 1 left!

0

4

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$

$

Not available

5

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

Usually ships in 2-5 days

0

6

Kohler 28 584 02-S

MODULE, IGNITION - #1 CYLINDER-USE 24 58
(Superseded to 66 584 10-S)

$

$

Not available

7

Kohler 28 584 01-S

MODULE, #2 CYLINDER-USE 66 584 09-S
(Superseded to 66 584 09-S)

$64.99

$

In Stock, only 2 left!

0

8

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

9

Kohler 28 025 01-S

USE 28 025 02-S FLYWHEEL
(Superseded to 28 025 02-S)

$

$

Not available

10

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

11

Kohler 28 157 01-S

FAN - (#DSC)

$

$

Not available

12

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

13

Kohler 12 468 03-S

WASHER, FLAT 13/32"

$

$

Not available

14

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

X-25-63-S

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2817602-S

Kohler 28 176 02-S

HARNESS, WIRING

Note: NOT ILLUSTRATED

$

$

Not available

M-448010-S

Kohler M-448010-S

SCREW, THD FRM M4X0.7X10

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

M-645016-S

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

Note: NOT ILLUSTRATED

$3.99

$

In Stock, Qty 15

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0
