TH18-54510 - Kohler Triad Engine, Made for Simplicity, 18hp, 13.4kW Ignition/Electrical (cont.) (TP-2481) Rev 10/26/2006 Parts Diagram

Triad Engine, Made for Simplicity, 18hp, 13.4kW

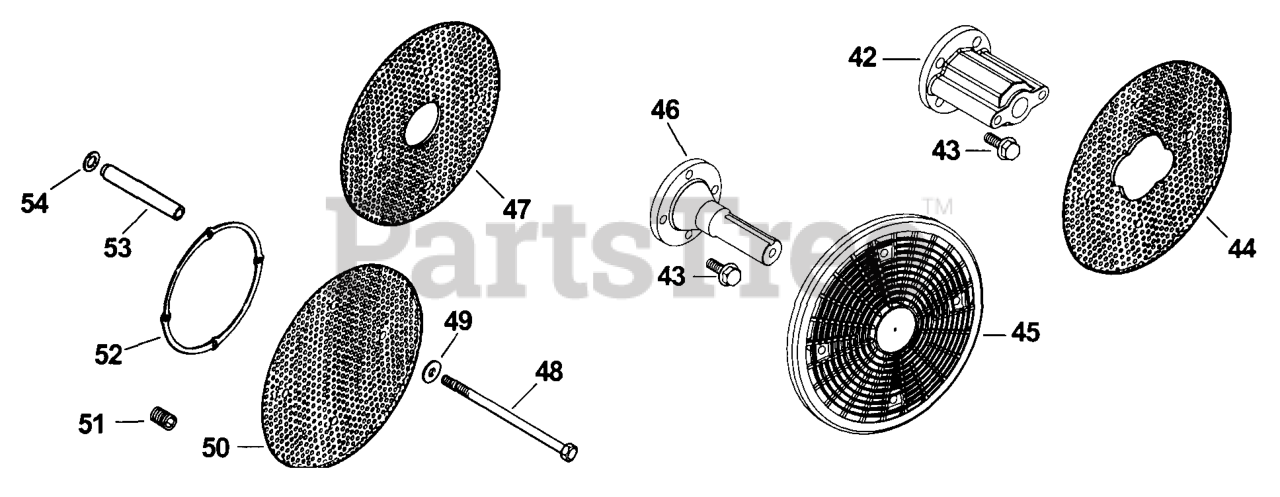

Ignition/Electrical (cont.) (TP-2481) Rev 10/26/2006 Parts Diagram

  • Title

42

Kohler 24 029 09-S

ADAPTER, FRONT DRIVE

$81.99

$

Usually ships in 2-5 days

0

43

Kohler M-839025-S

SCREW, FLG M8X1.25X25

$2.49

$

Usually ships in 2-5 days

0

44

Kohler 28 162 02-S

SCREEN, GRASS (#DSC)

$

$

Not available

48

Kohler 28 086 03-S

SCREW, CAP M6X1.0X75 - DISCONTINUED

$

$

Not available

49

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

Usually ships in 2-5 days

0

51

Kohler 25 086 43-S

SCREW, SKT SET #10-24X1/4"

$2.49

$

Usually ships in 2-5 days

0

52

Kohler 24 141 06-S

RING, SUPPORT USE 25 141 08-S
(Superseded to 25 141 08-S)

$5.49

$

Usually ships in 2-5 days

0

53

Kohler 28 112 06-S

SPACER, GRASS SCREEN (#DSC)

$

$

Not available

54

Kohler 24 468 11-S

WASHER, SPRING 10 MM

$2.49

$

Usually ships in 2-5 days

0

2817602-S

Kohler 28 176 02-S

HARNESS, WIRING

$

$

Not available

M-645016-S

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 13

0

X-468-1-S

Kohler X-468-1-S

TIE, WIRE USE 25 454 03-S
(Superseded to 25 454 03-S)

$2.49

$

Usually ships in 2-5 days

0

X-25-63-S

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0
