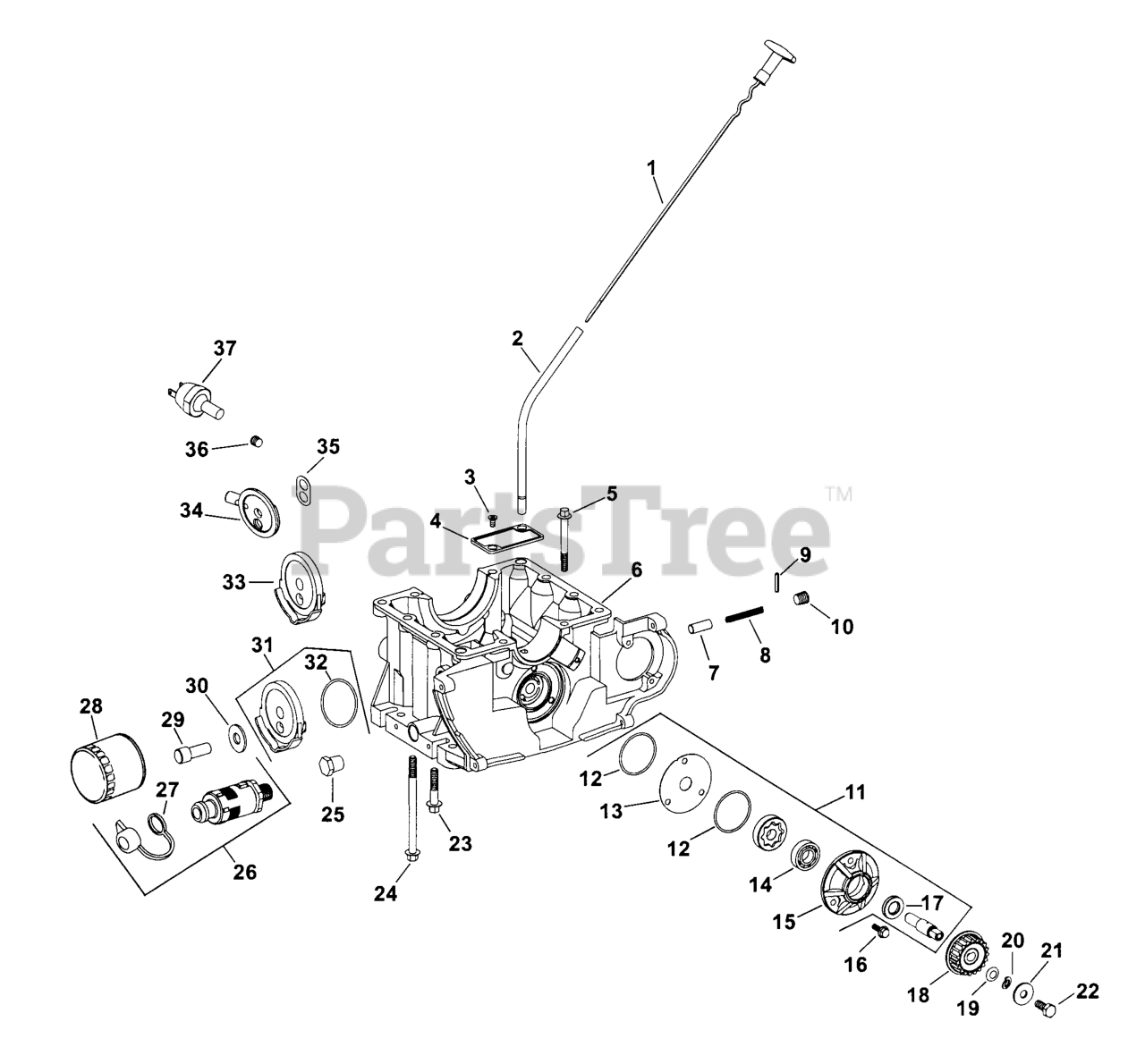

TH18-54503 - Kohler Triad Engine, Basic Version, 18hp, 13.4kW Oil Pan/Lubrication 3-28-5 (TP-2481) Rev 10/26/2006 Parts Diagram

Triad Engine, Basic Version, 18hp, 13.4kW

Oil Pan/Lubrication 3-28-5 (TP-2481) Rev 10/26/2006 Parts Diagram

  • Title

1

Kohler 28 038 01-S

DISC'D SEE EPB227
(Superseded to 28 755 35-S)

$42.99

$

Usually ships in 2-5 days

0

2

Kohler 28 123 01-S

USE 28 123 05-S TUBE
(Superseded to 28 123 05-S)

$

$

Not available

3

Kohler M-563010-S

SCREW, TORX COUNTRSUNK HD

$

$

Not available

4

Kohler 28 162 01-S

SCREEN, OIL PICK-UP - (#DSC)

$

$

Not available

5

Kohler M-839070-S

SCREW, FLG M8X1.25X70

$9.49

$

Usually ships in 2-5 days

0

6

Kohler 28 561 13-S

CRANKCASE-LOWER ASSEMBLY

Note: Includes 3,4,7-10, and 28-561-08-S which is replaced by 28-561-13-S

$

$

Not available

7

Kohler 12 462 02-S

VALVE, PISTON RELIEF

$3.99

$

Usually ships in 2-5 days

0

8

Kohler 12 089 16-S

SPRING - DISCONTINUED

$

$

Not available

9

Kohler X-280-3-S

DISCONTINUED

$

$

Not available

10

Kohler X-75-38-S

PLUG USE 25 139 64-S
(Superseded to 25 139 64-S)

$3.49

$

Usually ships in 2-5 days

0

11

Kohler 28 393 02-S

PUMP ASSEMBLY, OIL - DISC.

Note: Includes 12-15,17

$

$

Not available

12

Kohler 28 153 01-S

O-RING - DISCONTINUED

$

$

Not available

13

Kohler 28 146 01-S

PLATE, WEAR - DISCONTINUED

$

$

Not available

14

Kohler 28 030 01-S

BEARING, BALL

$15.99

$

Usually ships in 2-5 days

0

15

Kohler 28 096 02-S

USE 28 096 21-S COVER
(Superseded to 28 096 21-S)

$

$

Not available

16

Kohler M-651020-S

SCREW, FLG M6x1.0x20

$2.49

$

In Stock, Qty 6

0

17

Kohler 28 032 02-S

SEAL, OIL - DISCONTINUED

$

$

Not available

18

Kohler 28 093 03-S

USE 28 093 05-S SPROCKET
(Superseded to 28 093 05-S)

$

$

Not available

19

Kohler 28 468 04-S

WASHER, SPRING 13 MM

$2.49

$

In Stock, only 3 left!

0

20

Kohler X-20-1-S

WASHER, SPRING LOCK 1/4"

$3.99

$

In Stock, only 1 left!

0

21

Kohler X-25-52-S

WASHER, FLAT 1/4"

$3.99

$

In Stock, only 1 left!

0

22

Kohler M-610016-S

SCREW, HEX HEAD MACHINE

$2.49

$

Usually ships in 2-5 days

0

23

Kohler M-839040-S

SCREW, FLG M8X1.25X40 - (#M851040S)
(Superseded to M-851040-S)

$3.99

$

Usually ships in 2-5 days

0

24

Kohler M-839115-S

SCREW, FLG M8X1.25X115

$2.99

$

In Stock, only 4 left!

0

25

Kohler 52 139 02-S

PLUG, HD PIPE 3/8"

$8.49

$

In Stock, only 2 left!

0

28

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

29

Kohler 28 136 01-S

NIPPLE, OIL FILTER

$90.99

$

Usually ships in 2-5 days

0

30

Kohler 28 468 05-S

WASHER, FLAT - DISCONTINUED

$

$

Not available

31

Kohler 28 755 19-S

KIT, PLASTIC FILTER ADAPTER - DISCONTINUED

Note: Includes 32

$

$

Not available

32

Kohler 28 153 03-S

O-RING - DISCONTINUED

$

$

Not available

37

Kohler 28 704 02-S

KIT, OIL SENTRY(PRESSURE) - (#DSC)

Note: Includes switch and Oil Sentry Lead 28-518-02-S

$

$

Not available
