TH18-54503 - Kohler Triad Engine, Basic Version, 18hp, 13.4kW Crankcase 2-28-2 (TP-2481) Rev 10/26/2006 Parts Diagram

Triad Engine, Basic Version, 18hp, 13.4kW

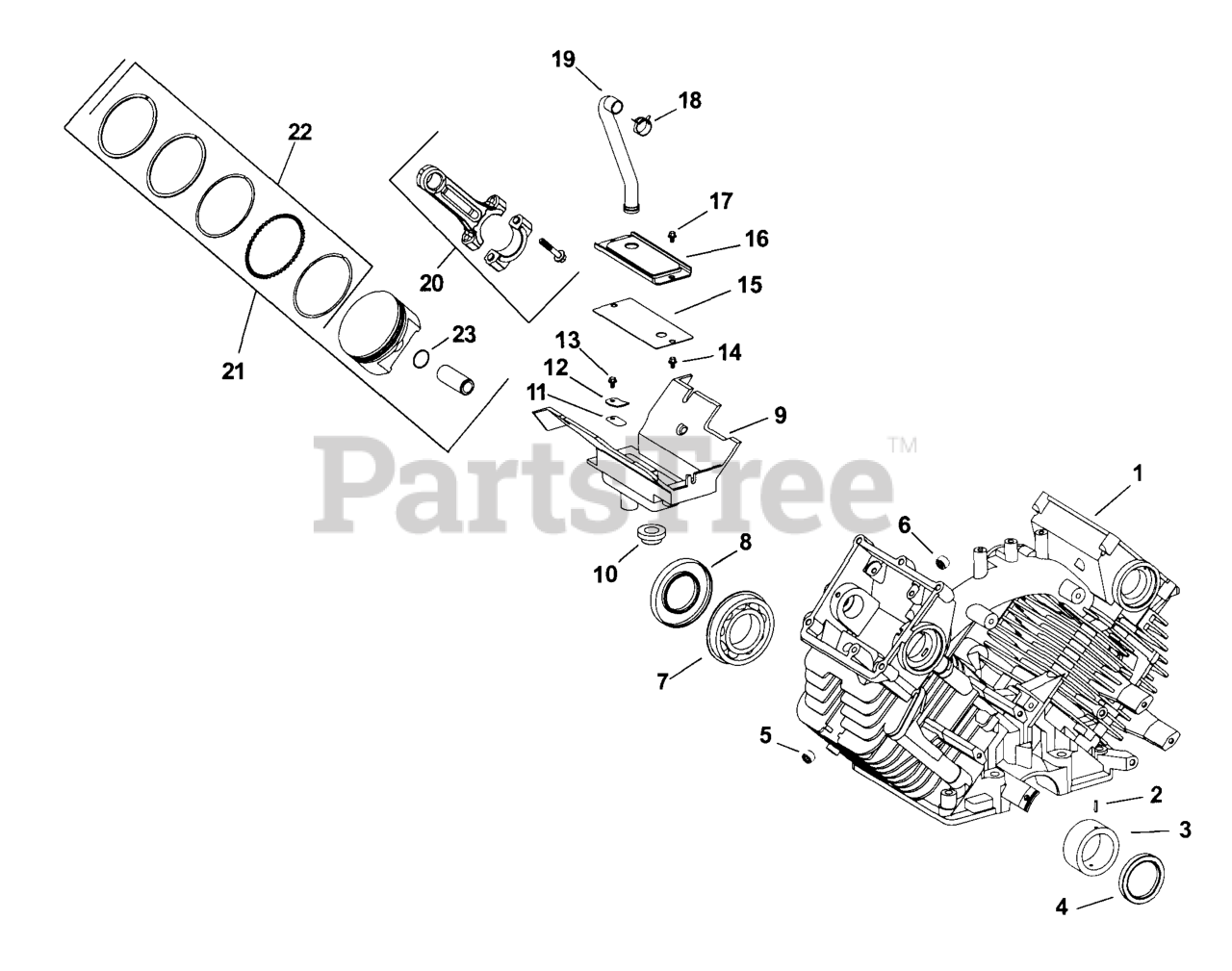

Crankcase 2-28-2 (TP-2481) Rev 10/26/2006 Parts Diagram

  • Title

1

Kohler 28 260 04-S

CRANKCASE ASSY-UPPER - DISC

Note: Includes 2, stud 28-072-01-S, dipstick tube 28-123-01-S, and screw [qty. 3] M-645030-S

$

$

Not available

2

Kohler X-280-15-S

PIN, ROLL

$5.49

$

Usually ships in 2-5 days

0

3

Kohler 28 030 07-S

BEARING, SLEEVE

$37.99

$

Usually ships in 2-5 days

0

4

Kohler 28 032 05-S

SEAL, OIL
(Superseded to 62 032 21-S)

$9.99

$

In Stock, only 1 left!

0

7

Kohler 28 030 04-S

BEARING, BALL

$

$

Not available

8

Kohler 28 032 03-S

SEAL, OIL - DISCONTINUED

$

$

Not available

9

Kohler 28 035 01-S

USE 28 035 02-S BREATHER
(Superseded to 28 755 26-S)

Note: Use Before Serial Number 2826600001

$

$

Not available

9

Kohler 28 755 26-S

KIT, BREATHER - DISCONTINUED

Note: Use After Serial Number 2826600011

$

$

Not available

10

Kohler 28 313 01-S

USE 28 313 04-S GROMMET
(Superseded to 28 313 04-S)

$

$

Not available

11

Kohler 28 402 01-S

REED, BREATHER

$23.99

$

Usually ships in 2-5 days

0

12

Kohler 28 018 02-S

RETAINER, REED - DISCONTINUED

$

$

Not available

13

Kohler M-545010-S

SCREW, FLG THD FRM M5X.8X10

Note: Use Before Serial Number 2826600001

$4.49

$

In Stock, only 2 left!

0

13

Kohler 28 086 07-S

SCREW, THREAD FORMING - DISCONTINUED

Note: Use After Serial Number 2826600011

$

$

Not available

14

Kohler M-639010-S

SCREW, FLG M6X1.0X10

$2.49

$

Usually ships in 2-5 days

0

15

Kohler 28 041 06-S

GASKET, BREATHER COVER

$8.49

$

In Stock, only 3 left!

0

16

Kohler 28 096 08-S

COVER, BREATHER - DISCONTINUED

$

$

Not available

17

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

Note: Use Before Serial Number 2826600001

$3.99

$

In Stock, Qty 15

0

17

Kohler 28 086 06-S

SCREW, THREAD FORMING

Note: Use After Serial Number 2826600011

$2.49

$

In Stock, only 1 left!

0

18

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

19

Kohler 28 326 01-S

HOSE, BREATHER

$80.99

$

Usually ships in 2-5 days

0

20

Kohler 28 067 04-S

ROD, CONNECTING - (#DSC)

$49.99

$

In Stock, only 1 left!

0

20

Kohler 28 067 05-S

ROD, CONNECTING - DISC.

$

$

Not available

21

Kohler 28 874 02-S

PISTON W/RING SET (STD) - (#DSC)

Note: Includes 22,23

$

$

Not available

22

Kohler 28 108 02-S

RING SET, STD - DISCONTINUED

$

$

Not available

23

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0
