TH16-52546 - Kohler Triad Engine, Made for Walker Mfg., 16hp, 11.9kW Oil Pan/Lubrication 3-28-24 Parts Diagram

Triad Engine, Made for Walker Mfg., 16hp, 11.9kW

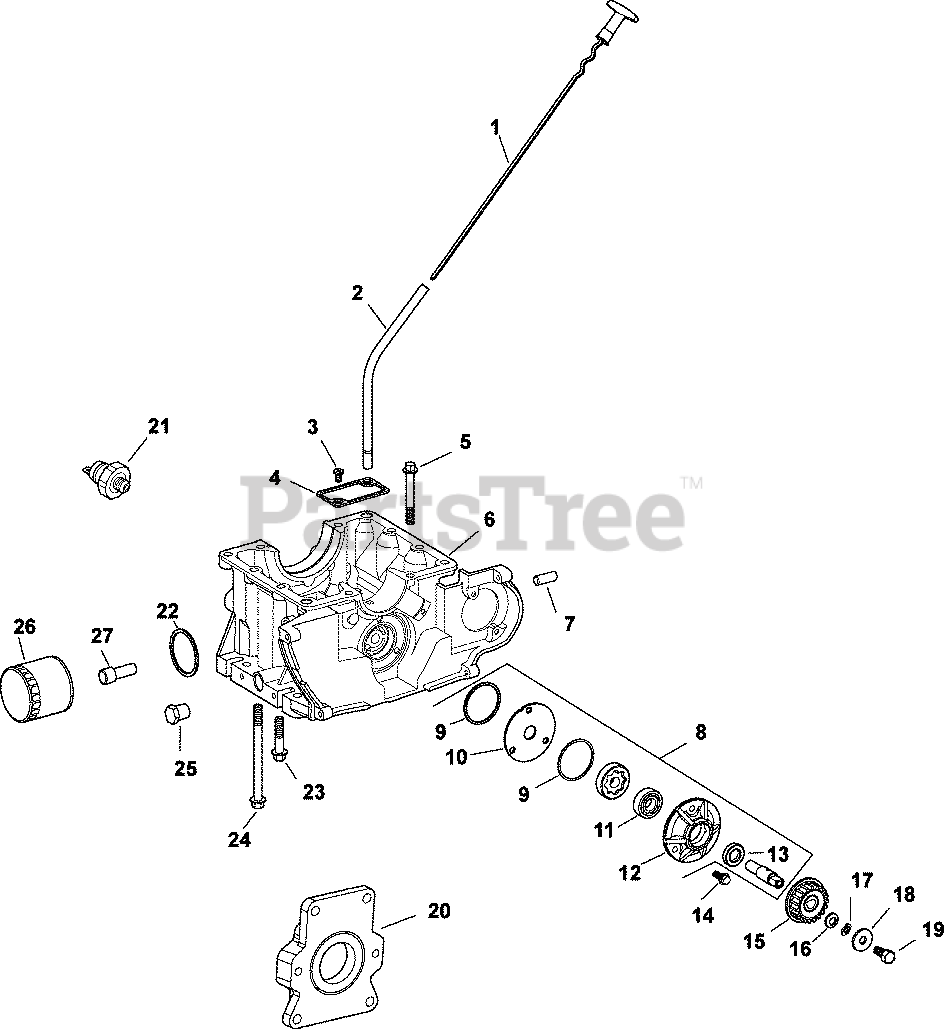

Oil Pan/Lubrication 3-28-24 Parts Diagram

  • Title

1

Kohler 28 038 03-S

DIPSTICK - DISCONTINUED

$

$

Not available

2

Kohler 28 123 05-S

TUBE, DIPSTICK - DISCONTINUED

$

$

Not available

3

Kohler M-563010-S

SCREW, TORX COUNTRSUNK HD

$

$

Not available

4

Kohler 28 162 01-S

SCREEN, OIL PICK-UP - (#DSC)

$

$

Not available

5

Kohler M-839070-S

SCREW, FLG M8X1.25X70

$9.49

$

Usually ships in 2-5 days

0

6

CRANKCASE

Note: (USE:SHORT BLOCK)

$

$

Not available

7

Kohler 12 462 02-S

VALVE, PISTON RELIEF

$3.99

$

Usually ships in 2-5 days

0

8

Kohler 28 393 02-S

PUMP ASSEMBLY, OIL - DISC.

Note: (includes 9-13)

$

$

Not available

9

Kohler 28 153 01-S

O-RING - DISCONTINUED

$

$

Not available

10

Kohler 28 146 01-S

PLATE, WEAR - DISCONTINUED

$

$

Not available

11

Kohler 28 030 01-S

BEARING, BALL

$15.99

$

Usually ships in 2-5 days

0

12

Kohler 28 096 21-S

COVER, OIL PUMP - DISCONTINUED

$

$

Not available

13

Kohler 28 032 02-S

SEAL, OIL - DISCONTINUED

$

$

Not available

14

Kohler M-651020-S

SCREW, FLG M6x1.0x20

$2.49

$

In Stock, Qty 6

0

15

Kohler 28 093 05-S

SPROCKET, OIL PUMP - (#DSC)

$

$

Not available

16

Kohler 28 468 04-S

WASHER, SPRING 13 MM

$2.49

$

In Stock, only 3 left!

0

17

Kohler X-20-1-S

WASHER, SPRING LOCK 1/4"

$3.99

$

In Stock, only 1 left!

0

18

Kohler X-25-52-S

WASHER, FLAT 1/4"

$3.99

$

In Stock, only 1 left!

0

19

Kohler M-610016-S

SCREW, HEX HEAD MACHINE

$2.49

$

Usually ships in 2-5 days

0

20

Kohler 28 029 13-S

ADAPTER, OIL FILTER

$94.99

$

Usually ships in 2-5 days

0

21

Kohler 25 099 24-S

SWITCH, PRESSURE (CLOSED)-USE 25 099 27-
(Superseded to 25 099 27-S)

$15.99

$

In Stock, Qty 5

0

22

Kohler 28 153 03-S

O-RING - DISCONTINUED

$

$

Not available

23

Kohler M-839040-S

SCREW, FLG M8X1.25X40 - (#M851040S)
(Superseded to M-851040-S)

$3.99

$

Usually ships in 2-5 days

0

24

Kohler M-839115-S

SCREW, FLG M8X1.25X115

$2.99

$

In Stock, only 4 left!

0

25

Kohler 52 139 02-S

PLUG, HD PIPE 3/8"

$8.49

$

In Stock, only 2 left!

0

26

Kohler 28 050 01-S

FILTER, OIL

$22.99

$

In Stock, only 1 left!

0

27

Kohler 28 136 01-S

NIPPLE, OIL FILTER

$90.99

$

Usually ships in 2-5 days

0

2513964-S

Kohler 25 139 64-S

PLUG

Note: NOT ILLUSTRATED

$3.49

$

Usually ships in 2-5 days

0
