TH16-52545 - Kohler Triad Engine, Made for Walker Mfg., 16hp, 11.9kW Ignition/Electrical Parts Diagram

Triad Engine, Made for Walker Mfg., 16hp, 11.9kW

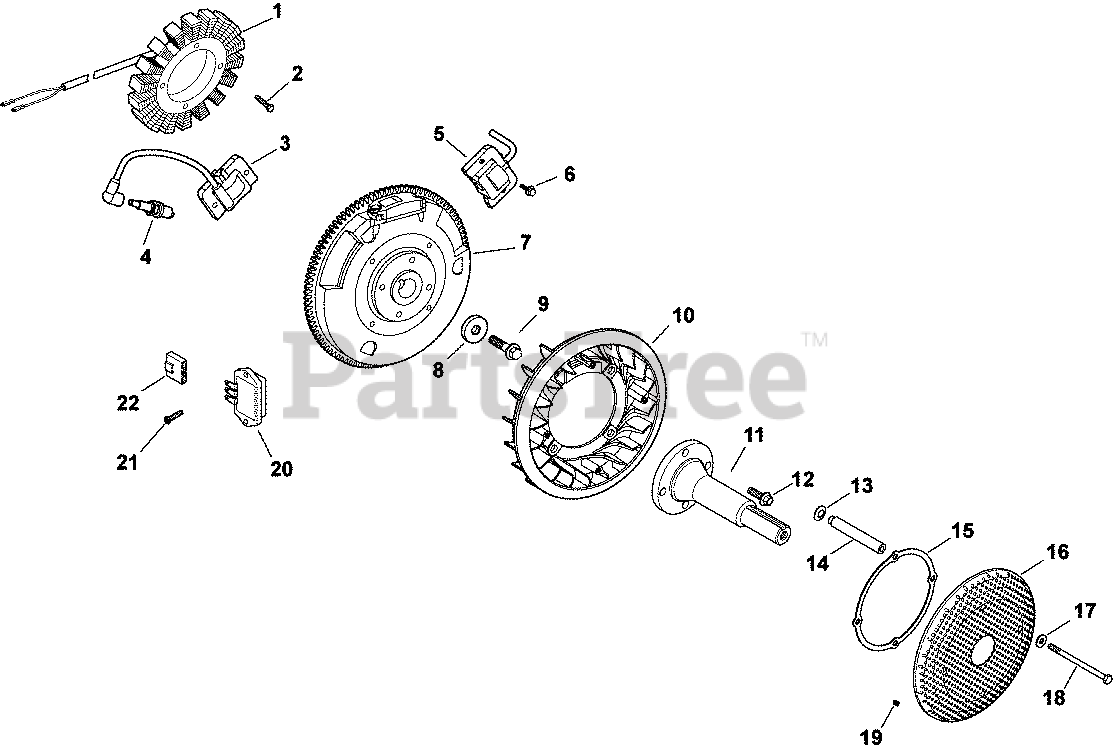

Ignition/Electrical Parts Diagram

  • Title

1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: (includes 25 452 01-S)

$149.99

$

In Stock, Qty 15

0

2

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

3

Kohler 28 584 01-S

MODULE, #2 CYLINDER-USE 66 584 09-S
(Superseded to 66 584 09-S)

$64.99

$

In Stock, only 2 left!

0

4

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

5

Kohler 28 584 02-S

MODULE, IGNITION - #1 CYLINDER-USE 24 58
(Superseded to 66 584 10-S)

$

$

Not available

6

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 5

0

7

Kohler 28 025 02-S

FLYWHEEL - (#DSC)

$

$

Not available

8

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

9

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

10

Kohler 28 157 01-S

FAN - (#DSC)

$

$

Not available

11

Kohler 28 144 05-S

SHAFT, FRONT DRIVE

$266.99

$

Usually ships in 2-5 days

0

12

Kohler M-839025-S

SCREW, FLG M8X1.25X25

$2.49

$

Usually ships in 2-5 days

0

13

Kohler 24 468 11-S

WASHER, SPRING 10 MM

$2.49

$

Usually ships in 2-5 days

0

14

Kohler 28 112 06-S

SPACER, GRASS SCREEN (#DSC)

$

$

Not available

15

Kohler 24 141 06-S

RING, SUPPORT USE 25 141 08-S
(Superseded to 25 141 08-S)

$5.49

$

Usually ships in 2-5 days

0

16

Kohler 24 162 38-S

SCREEN, GRASS

$24.99

$

Usually ships in 2-5 days

0

17

Kohler X-25-53-S

WASHER, FLAT 1/4" (O.D. 5/8")

$3.49

$

In Stock, only 3 left!

0

18

Kohler 28 086 03-S

SCREW, CAP M6X1.0X75 - DISCONTINUED

$

$

Not available

19

Kohler 25 086 43-S

SCREW, SKT SET #10-24X1/4"

$2.49

$

Usually ships in 2-5 days

0

20

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$

$

Not available

21

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

Usually ships in 2-5 days

0

22

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$24.99

$

In Stock, only 1 left!

0

M-448010-S

Kohler M-448010-S

SCREW, THD FRM M4X0.7X10

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

M-645016-S

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

Note: NOT ILLUSTRATED

$3.99

$

In Stock, Qty 14

0

X-25-63-S

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

Note: NOT ILLUSTRATED

$2.49

$

In Stock, only 3 left!

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

Note: NOT ILLUSTRATED

$2.49

$

Usually ships in 2-5 days

0

2817629-S

Kohler 28 176 29-S

HARNESS, WIRING

Note: NOT ILLUSTRATED

$

$

Not available

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED

$5.49

$

In Stock, only 1 left!

0
