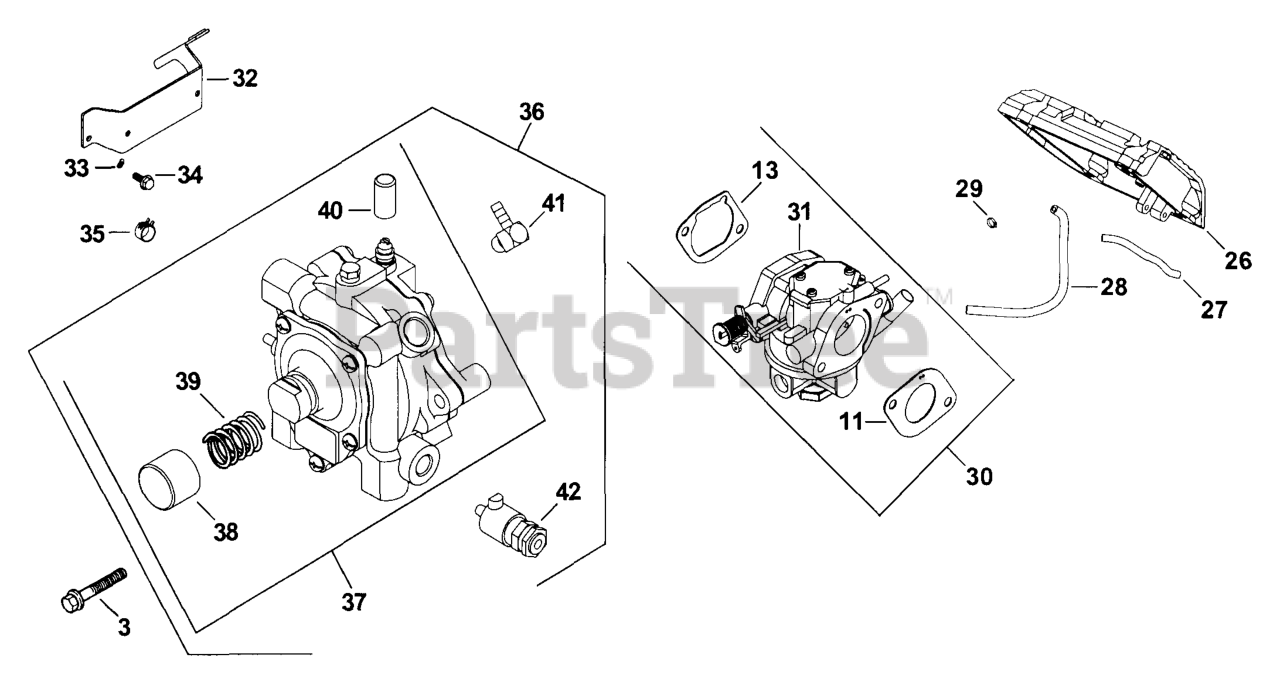

TH16-52545 - Kohler Triad Engine, Made for Walker Mfg., 16hp, 11.9kW Fuel System (cont.) 4/19/2006 Parts Diagram

Triad Engine, Made for Walker Mfg., 16hp, 11.9kW

Fuel System (cont.) 4/19/2006 Parts Diagram

  • Title

3

Kohler M-639040-S

SCREW, FLG M6X1.0X40 - DISCONTINUED

Note: Fuel regulator mounting screws

$

$

Not available

11

Kohler 24 041 15-S

GASKET, CARBURETOR

$15.99

$

In Stock, only 1 left!

0

13

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 9

0

26

Kohler 28 096 14-S

COVER, VALVE NO. 1 - DISCONTINUED

$

$

Not available

27

Kohler 28 353 02-S

USE 28 353 05-S FUEL LINE
(Superseded to 28 353 05-S)

$

$

Not available

28

Kohler 28 353 03-S

LINE, VACUUM - DISCONTINUED

$

$

Not available

29

Kohler X-426-3-S

CLAMP, HOSE USE 25 237 12-S
(Superseded to 25 237 32-S)

$6.49

$

Usually ships in 2-5 days

0

30

Kohler 28 853 06-S

CARBURETOR W/GASKETS - DISC.

Note: Includes 11,13,31, and Lead 28-518-04-S

$

$

Not available

31

Kohler 28 053 06

USE 28 853 06

Note: For information only, not available separately. Service with kits 28-757-08-S, 24-757-20-S

$

$

Not available

32

Kohler 28 126 14-S

BRACKET, LP FUEL - DISCONTINUED

$

$

Not available

33

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

$2.49

$

In Stock, only 3 left!

0

34

Kohler M-545030-S

SCREW, THD FROM M5X0.8X30-DISCONTINUED

$

$

Not available

35

Kohler 25 237 01-S

CLAMP, HOSE

$3.49

$

Usually ships in 2-5 days

0

36

Kohler 12 403 04-S

REGULATOR - DISCONTINUED

Note: Includes 37-42

$

$

Not available

37

Kohler 24 403 04-S

REGULATOR, 2 STAGE FUEL-USE 24 403 23-S
(Superseded to 24 403 23-S)

Note: Includes 38-40

$775.99

$

Usually ships in 2-5 days

0

38

Kohler 24 173 04-S

CAP

$21.99

$

Usually ships in 2-5 days

0

39

Kohler 24 089 39-S

SPRING, ANTI-TAMPER

$2.99

$

In Stock, only 1 left!

0

40

Kohler 24 173 05-S

CAP

$24.99

$

Usually ships in 2-5 days

0

41

Kohler 24 294 10-S

FITTING, 90 BARBED

$20.99

$

Usually ships in 2-5 days

0

42

Kohler 24 435 04-S

SOLENOID, 12VDC LOCKOFF-(#2443510S)
(Superseded to 24 435 10-S)

Note: Includes filter 24-050-04-S

$279.99

$

Usually ships in 2-5 days

0

2511319-S

Kohler 25 113 19-S

USE 25 113 32-S LABEL
(Superseded to 25 113 32-S)

$10.99

$

Usually ships in 2-5 days

0

2405004-S

Kohler 24 050 04-S

FILTER, DRY FUEL - (#2405026S)
(Superseded to 24 050 26-S)

$29.99

$

In Stock, only 2 left!

0

2875708-S

Kohler 28 757 08-S

KIT, CHOKE REPR W/GASKETS-(#DSC)

Note: Includes 11,13

$

$

Not available

2475720-S

Kohler 24 757 20-S

KIT, REPAIR SERVICE GASKET

Note: Includes 11,13

$62.99

$

In Stock, only 1 left!

0

2851804-S

Kohler 28 518 04-S

LEAD - DISCONTINUED

$

$

Not available
