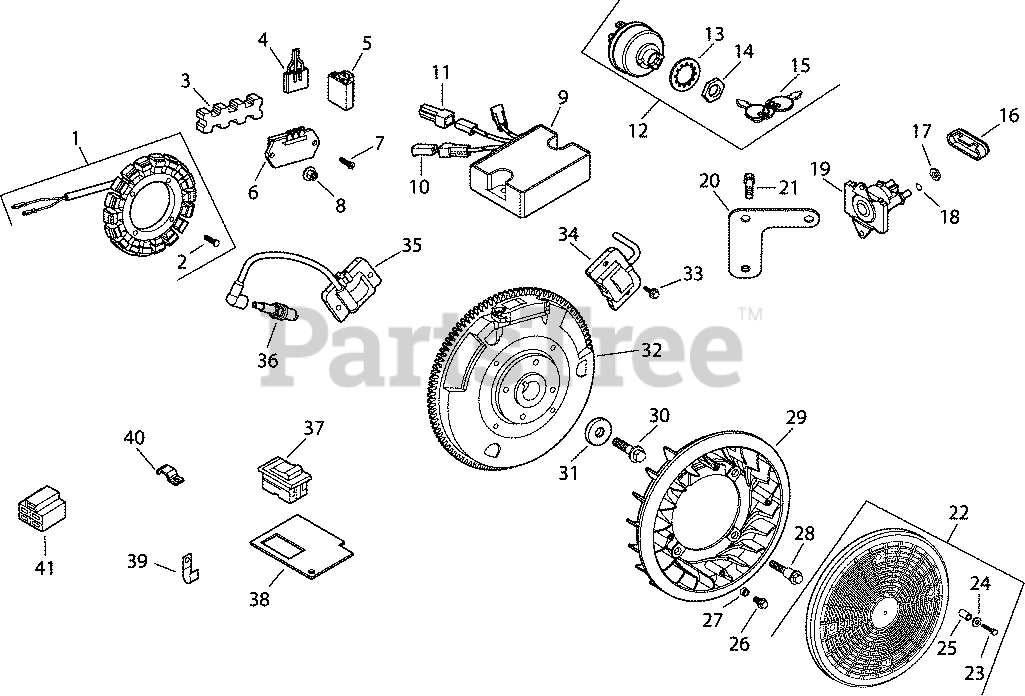

TH16-52528 - Kohler Triad Engine, Basic Version, 16hp, 11.9kW Ignition/Electrical (TP-2481) Rev 10/27/2006 Parts Diagram

Triad Engine, Basic Version, 16hp, 11.9kW

Ignition/Electrical (TP-2481) Rev 10/27/2006 Parts Diagram

  • Title

1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

$149.99

$

In Stock, Qty 8

0

2

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

4

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$24.99

$

In Stock, only 1 left!

0

6

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$

$

Not available

7

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

22

Kohler 54 755 15-S

KIT, GRASS SCREEN

Note: (includes 23-25)

$41.99

$

In Stock, only 1 left!

0

23

Kohler M-403025-S

SCREW, SLT HD CAP M4X0.7X25

$4.99

$

In Stock, only 1 left!

0

24

Kohler X-25-92-S

WASHER, FLAT 3/16"

$2.49

$

In Stock, only 2 left!

0

25

Kohler 24 112 04-S

SPACER - DISCONTINUED

$

$

Not available

28

Kohler 25 086 47-S

BOLT, SHOULDER

$2.49

$

In Stock, Qty 7

0

29

Kohler 28 157 01-S

FAN - (#DSC)

$

$

Not available

30

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

31

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

32

Kohler 28 025 02-S

FLYWHEEL - (#DSC)

$

$

Not available

33

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 20+

0

34

Kohler 28 584 02-S

MODULE, IGNITION - #1 CYLINDER-USE 24 58
(Superseded to 66 584 10-S)

$

$

Not available

35

Kohler 28 584 01-S

MODULE, #2 CYLINDER-USE 66 584 09-S
(Superseded to 66 584 09-S)

$64.99

$

In Stock, only 2 left!

0

36

Kohler 12 132 02-S

PLUG, SPARK (STD)

$4.49

$

In Stock, Qty 20+

0
