TH16-52527 - Kohler Triad Engine, Made for Smithco, 16hp, 11.9kW Air Intake/Filtration #1 (TP-2481) Rev 10/26/2006 Parts Diagram

Triad Engine, Made for Smithco, 16hp, 11.9kW

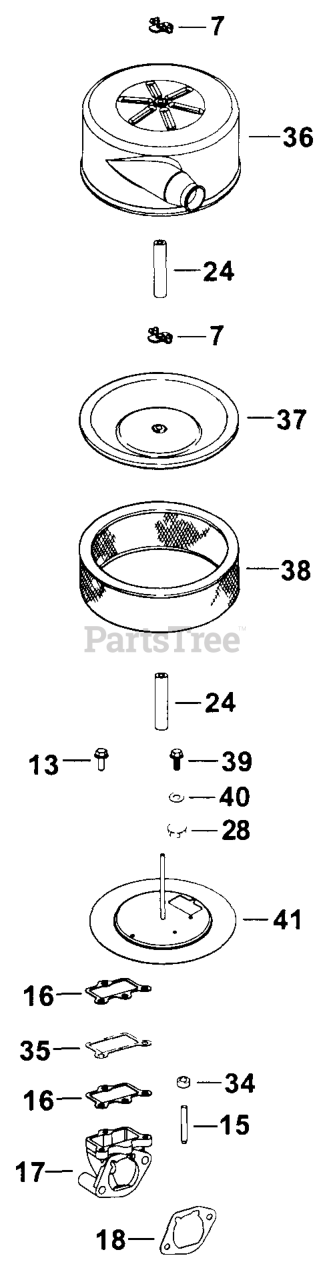

Air Intake/Filtration #1 (TP-2481) Rev 10/26/2006 Parts Diagram

  • Title

7

Kohler 12 100 01-S

NUT, WING

$3.99

$

In Stock, only 4 left!

0

13

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.49

$

In Stock, only 1 left!

0

15

Kohler 28 072 03-S

STUD, REMOTE AIR FILTER-DISCONTINUED

$

$

Not available

16

Kohler 28 041 04-S

GASKET, AIR CLEANR BASE

$4.49

$

In Stock, only 1 left!

0

17

Kohler 28 054 01-S

ELBOW, AIR CLEANER

$21.99

$

Usually ships in 2-5 days

0

18

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 9

0

24

Kohler 28 032 07-S

SEAL

$3.49

$

Usually ships in 2-5 days

0

28

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 11

0

34

Kohler 25 112 04-S

SPACER

$4.99

$

Usually ships in 2-5 days

0

35

Kohler 28 112 05-S

SPACER, AIR CLEANER BASE

$29.99

$

Usually ships in 2-5 days

0

36

Kohler 24 096 53-S

COVER, AIR CLEANER

$182.99

$

Usually ships in 2-5 days

0

37

Kohler 24 096 01-S

COVER, INNER AIR CLEANER

$16.99

$

In Stock, only 1 left!

0

38

Kohler 47 083 03-S

ELEMENT, AIR CLEANER - Also available Retail Packaged 47 883 03-S1 Air Filter Kit

$23.99

$

In Stock, Qty 20+

0

39

Kohler M-639010-S

SCREW, FLG M6X1.0X10

$2.49

$

Usually ships in 2-5 days

0

40

Kohler X-25-8-S

WASHER

$3.99

$

Usually ships in 2-5 days

0

41

Kohler 28 094 03-S

BASE, AIR CLEANER - DISC.

$

$

Not available
