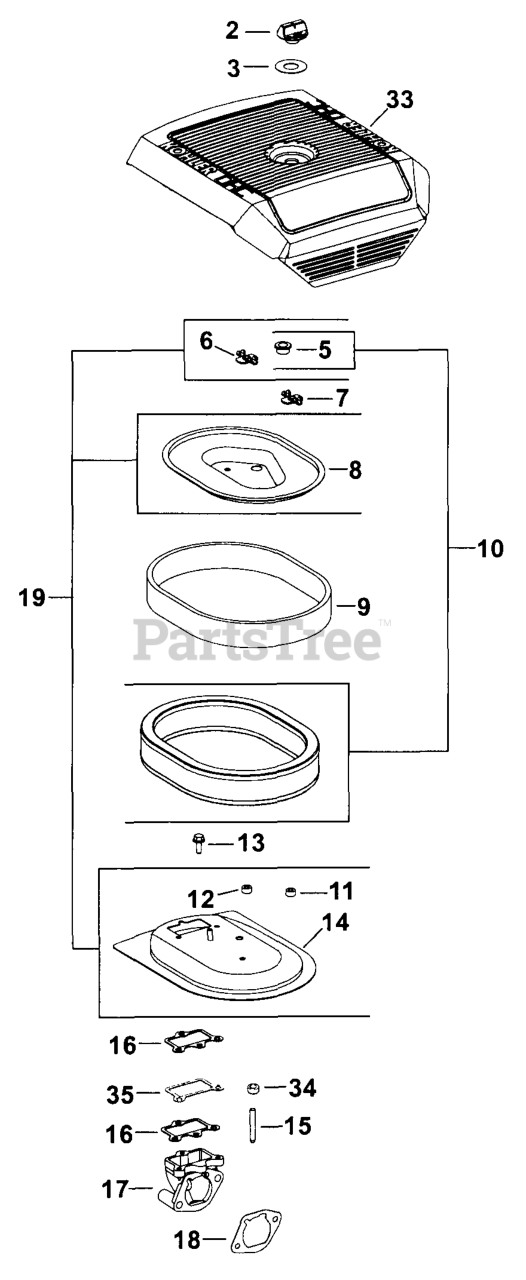

TH16-52507 - Kohler Triad Engine, Basic Version, 16hp, 11.9kW Air Intake/Filtration Rev 4/19/2006 Parts Diagram

Triad Engine, Basic Version, 16hp, 11.9kW

Air Intake/Filtration Rev 4/19/2006 Parts Diagram

  • Title

2

Kohler 25 341 03-S

KNOB, COVER
(Superseded to 25 341 04-S)

$7.99

$

Usually ships in 2-5 days

0

3

Kohler 24 041 27-S

GASKET, AIR CLEANER COVER KNOB

$2.49

$

In Stock, Qty 5

0

5

Kohler 28 032 08-S

SEAL, CARB ADJUST SCREW

$5.49

$

Usually ships in 2-5 days

0

6

Kohler 28 100 01-S

NUT, WING - (#DSC)

$

$

Not available

7

Kohler 12 100 01-S

NUT, WING

$3.99

$

In Stock, only 2 left!

0

8

Cover, inner air cleaner element

Note: 28-743-05-S

$

$

Not available

8

Cover, inner air cleaner element

Note: 28-096-17-S

$

$

Not available

9

Kohler 28 083 02-S

ELEMENT, PRE-CLEANER

$8.99

$

Usually ships in 2-5 days

0

10

Kohler 28 083 03-S

ELEMENT KIT, AIR FILTER

Note: Includes 5 and grommet plug 28-313-03-S

$54.99

$

Usually ships in 2-5 days

0

11

Kohler 24 032 03-S

SEAL, INNER AIR CLEANER

$4.99

$

In Stock, Qty 9

0

12

Kohler 28 032 10-S

SEAL - DISCONTINUED

$

$

Not available

13

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.49

$

In Stock, only 1 left!

0

14

Base, air cleaner

Note: 28-743-05-S

$

$

Not available

14

Base, air cleaner

Note: 28-094-05-S

$

$

Not available

15

Kohler 28 072 01-S

STUD - DISCONTINUED

$

$

Not available

16

Kohler 28 041 04-S

GASKET, AIR CLEANR BASE

$4.49

$

In Stock, only 1 left!

0

17

Kohler 28 054 01-S

ELBOW, AIR CLEANER

$21.99

$

Usually ships in 2-5 days

0

18

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 9

0

19

Kohler 28 743 05-S

KIT, AIR COVER BASE - (#DSC)

Note: Use before Serial No. 2824400011. Includes 5,6,8,11,12,14

$

$

Not available

33

Kohler 28 096 15-S

COVER, AIR CLEANER-DISCONTINUED

$

$

Not available

34

Kohler 25 112 04-S

SPACER

$4.99

$

Usually ships in 2-5 days

0

35

Kohler 28 112 05-S

SPACER, AIR CLEANER BASE

$29.99

$

Usually ships in 2-5 days

0
