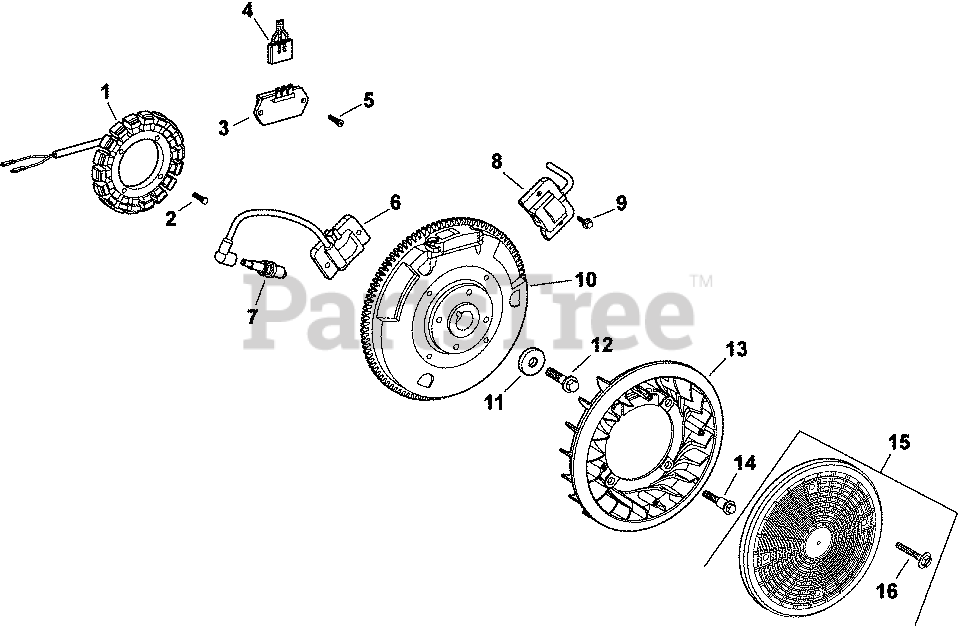

TH16-52501 - Kohler Triad Engine, Basic Version, 16hp, 11.9kW Ignition/Electrical Created 8/2/2006 Parts Diagram

Triad Engine, Basic Version, 16hp, 11.9kW

Ignition/Electrical Created 8/2/2006 Parts Diagram

  • Title

1

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: Includes Terminal 25-452-01-S [qty. 2]

$149.99

$

In Stock, Qty 8

0

2

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

3

Kohler 41 403 09-S

REG/RECT-15 AMP (KM)-USE 41 403 10-S
(Superseded to 41 403 10-S)

$

$

Not available

4

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

$24.99

$

In Stock, only 1 left!

0

5

Kohler 24 086 18-S

SCREW, PHL HD #11-16X7/8"

$2.49

$

Usually ships in 2-5 days

0

6

Kohler 28 584 01-S

MODULE, #2 CYLINDER-USE 66 584 09-S
(Superseded to 66 584 09-S)

$64.99

$

In Stock, only 2 left!

0

7

Kohler 12 132 02-S

PLUG, SPARK (STD)

$4.49

$

In Stock, Qty 20+

0

8

Kohler 28 584 02-S

MODULE, IGNITION - #1 CYLINDER-USE 24 58
(Superseded to 66 584 10-S)

$

$

Not available

9

Kohler M-561025-S

SCREW, SKT THD FRM M5X0.8X25

$2.49

$

Usually ships in 2-5 days

0

10

Kohler 28 025 02-S

FLYWHEEL - (#DSC)

$

$

Not available

11

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

12

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

13

Kohler 28 157 01-S

FAN - (#DSC)

$

$

Not available

14

Kohler 25 086 47-S

BOLT, SHOULDER

Note: After Serial No. 2723700011 built with 25-086-47-S

$2.49

$

In Stock, Qty 7

0

15

Kohler 54 755 15-S

KIT, GRASS SCREEN

Note: Includes 16

$41.99

$

In Stock, only 1 left!

0

16

Kohler 25 086 117-S

SCREW, FLG SEMS M4X.7X25

$2.99

$

In Stock, only 4 left!

0

2511324-S

Kohler 25 113 24-S

LABEL, (ROUND KOHLER GOLD)-USE 24 113 18
(Superseded to 24 113 499-S)

$4.99

$

Usually ships in 2-5 days

0

2817620-S

Kohler 28 176 20-S

HARNESS, WIRING (#DSC)

Note: NOT ILLUSTRATED

$

$

Not available

M-448010-S

Kohler M-448010-S

SCREW, THD FRM M4X0.7X10

Note: Secures wiring connector to #1 cylinder baffle

$2.49

$

Usually ships in 2-5 days

0

M-645016-S

Kohler M-645016-S

SCREW,FLG THD FRM M6X1.0X16-(#25086397S)
(Superseded to 25 086 397-S)

$3.99

$

In Stock, Qty 13

0

2545403-S

Kohler 25 454 03-S

TIE, WIRE

$2.49

$

Usually ships in 2-5 days

0

X-25-63-S

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0
