TF22G - Task Force Hedge Trimmer CARBURETOR, CRANKCASE, IGNITION, FLYWHEEL, & PISTON Parts Diagram

Hedge Trimmer

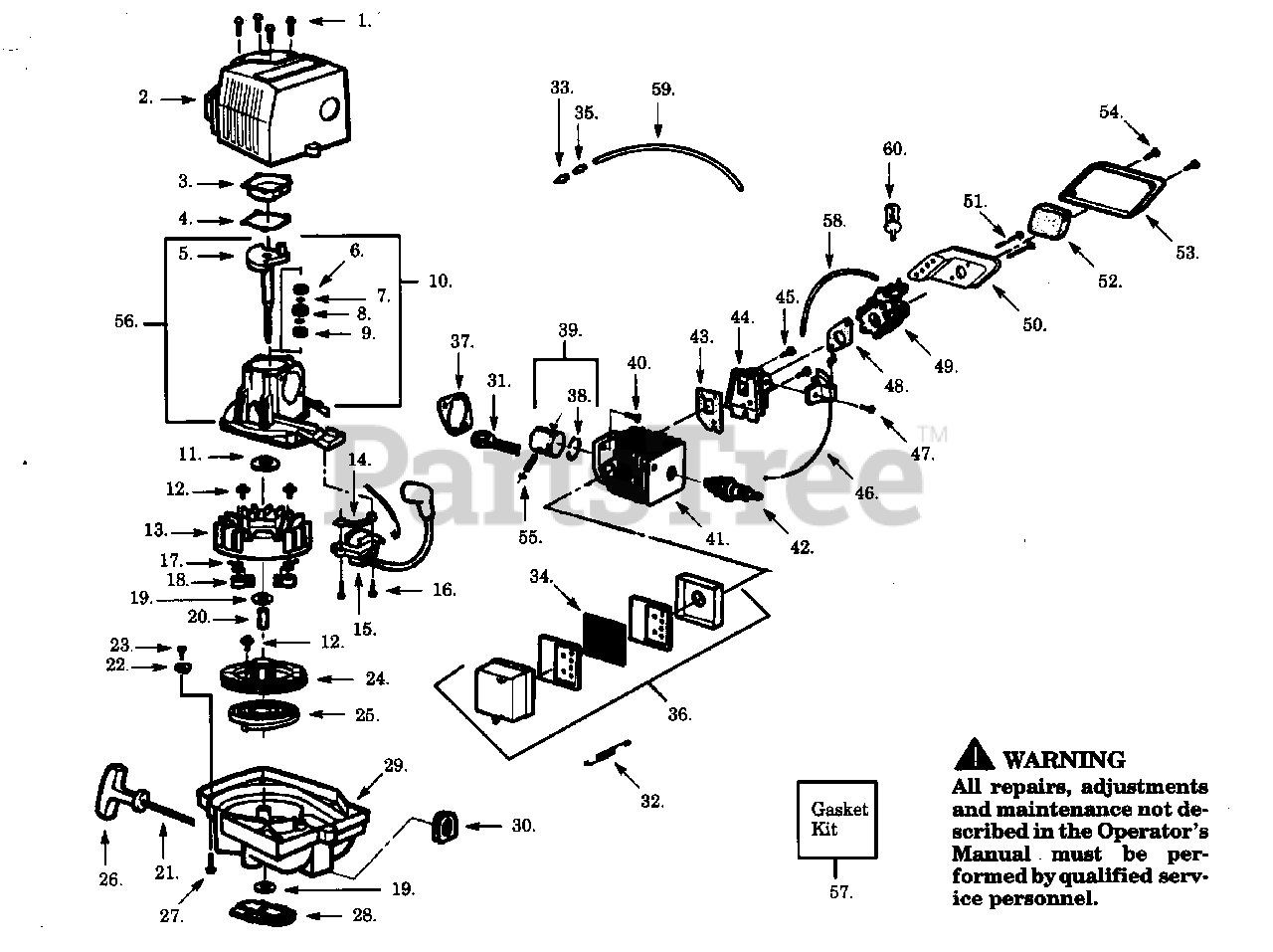

CARBURETOR, CRANKCASE, IGNITION, FLYWHEEL, & PISTON Parts Diagram

  • Title

$0.99

$

Usually ships in 3-10 days

0

2

$

$

Not available

3

Poulan 530029929

Crankcase Cover

$3.99

$

Usually ships in 3-10 days

0

4

$6.49

$

In Stock, only 2 left!

0

5

Poulan 530014307

Crankshaft Ass'y.

$18.99

$

Usually ships in 3-10 days

0

6

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

7

Poulan 530015945

Retaining Ring

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 530019179

Crankcase Seal

$

$

Not available

9

Poulan 530032124

Outer Bearing

$7.49

$

Usually ships in 3-10 days

0

11

Poulan 530015941

Retaining Ring

$4.99

$

Usually ships in 3-10 days

0

12

$

$

Not available

13

Poulan 530039149

Flywheel Ass'y.
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

14

$3.99

$

In Stock, only 3 left!

0

15

Poulan 530039163

Ignition Module

$53.99

$

In Stock, only 1 left!

0

16

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 530029940

Spring
(Superseded to 530047570)

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 530029939

Starter Dog

$

$

Not available

19

$4.99

$

Usually ships in 3-10 days

0

20

Poulan 530015930

Flywheel Spacer

$

$

Not available

21

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 19

0

22

Poulan 530015963

Retainer

$0.99

$

Usually ships in 3-10 days

0

23

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 530069353

Starter Pulley Kit (Inc. 12)

$

$

Not available

25

Poulan 530029395

Starter Spring
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

26

Poulan 530027569

Starter Handle

$6.49

$

Usually ships in 3-10 days

0

27

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

28

Poulan 530014396

Clutch Ass'y. Kit

$

$

Not available

29

Poulan 534014512

Fan Housing

$

$

Not available

30

$3.99

$

Usually ships in 3-10 days

0

31

Poulan 530014397

Connecting Rod Assy
(Superseded to 530069615)

$24.99

$

Usually ships in 3-10 days

0

32

Poulan 530029930

Muffler Spring
(Superseded to 530016197)

$4.99

$

In Stock, Qty 5

0

33

Poulan 530026119

Check Valve

$5.99

$

In Stock, only 4 left!

0

34

Poulan 530036180

Muffler Screen

$

$

Not available

35

Poulan 530024475

Vent Fitting

$6.49

$

In Stock, Qty 20+

0

36

Poulan 530069352

Muffler Kit
(Superseded to 530069659)

$

$

Not available

37

Poulan 530019187

Cylinder Gasket
(Superseded to 530019223)

$4.99

$

In Stock, only 3 left!

0

38

Poulan 530029924

Piston Ring

$

$

Not available

39

Poulan 530069350

Piston Kit (Inc. 38,55)
(Superseded to 530069613)

$

$

Not available

40

$6.49

$

In Stock, Qty 7

0

42

Poulan 530030073

Spark Plug

$

$

Not available

43

Poulan 530019185

Gasket
(Superseded to 530019233)

$3.99

$

In Stock, only 1 left!

0

44

Poulan 530036457

Carb. Adaptor
(Superseded to 530049024)

$6.91

$

Usually ships in 3-10 days

0

45

$6.49

$

In Stock, only 3 left!

0

46

Poulan 530014384

Throttle Cable Ass'y.

$

$

Not available

47

$6.49

$

In Stock, only 2 left!

0

48

Poulan 530019183

Gasket
(Superseded to 530019194)

$6.49

$

In Stock, only 4 left!

0

49

Poulan 530035306

Carburetor WT-221
(Superseded to 530035305)

$

$

Not available

50

$3.99

$

Usually ships in 3-10 days

0

51

$6.49

$

In Stock, only 1 left!

0

52

Poulan 530029934

Air Filter Foam

$

$

Not available

53

Poulan 530036193

Air Filter Cover

$

$

Not available

54

$5.99

$

In Stock, only 4 left!

0

55

Poulan 530015162

Piston Pin Retainer

$6.49

$

In Stock, only 1 left!

0

58

Poulan 530069247

Fuel Line

$7.99

$

In Stock, Qty 20+

0

59

Poulan 530069216

Vent Line

$11.99

$

In Stock, Qty 20+

0

60

Poulan 530014199

Fuel Pick-up Ass'y.
(Superseded to 530095646)

$6.99

$

In Stock, Qty 19

0

Poulan 530068588

Operator Manual

Note: Not Shown.

$3.99

$

Usually ships in 3-10 days

0

Poulan 530061593

Carton (Not a serviceable part)

Note: Not Shown.

$

$

Not available
