TF 545 P (967639302) - Husqvarna Front-Tine Tiller (2017-02) WALKING CASE Parts Diagram

Front-Tine Tiller

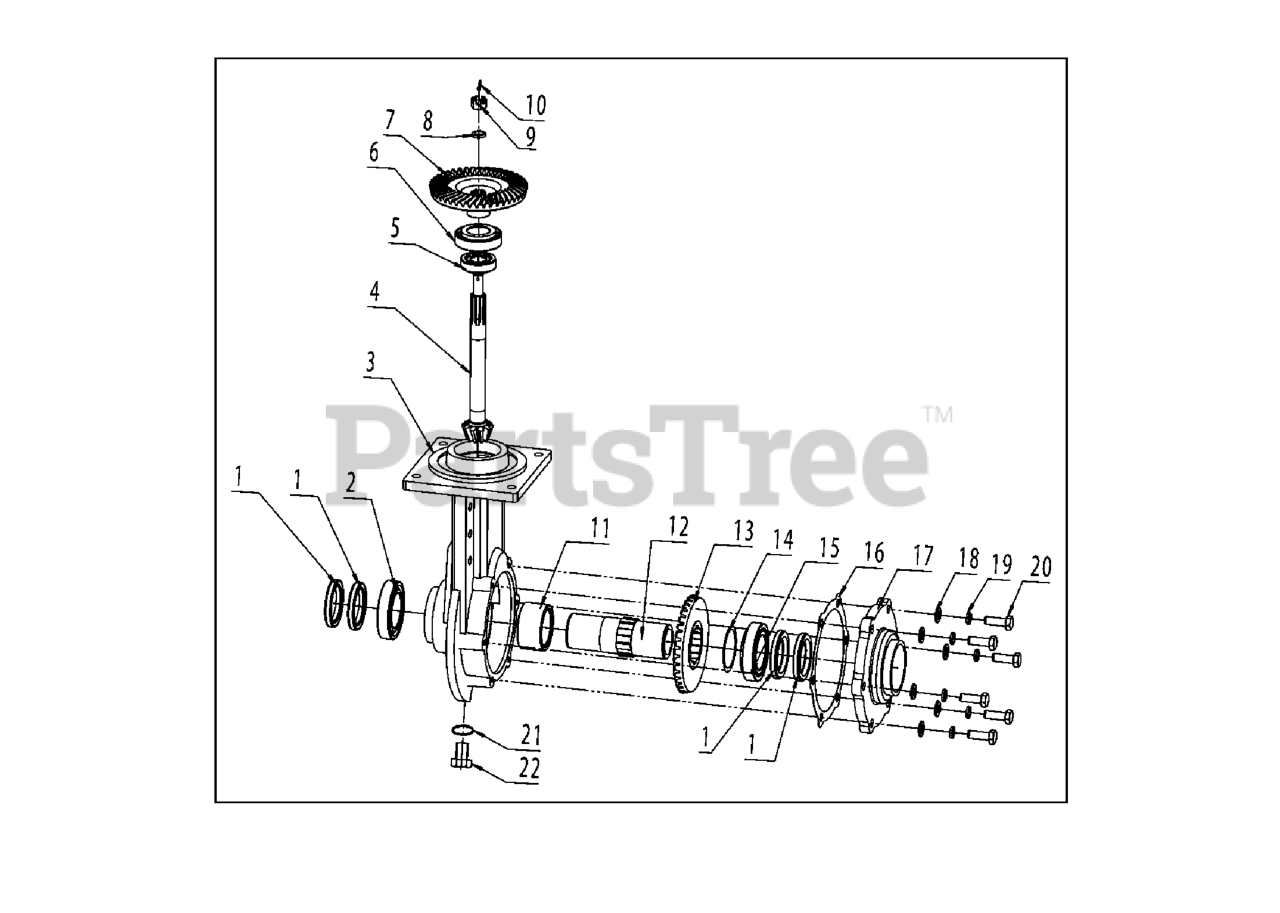

WALKING CASE Parts Diagram

  • Title
18

Husqvarna 587982901

NEEDS DESCRIPTION

Note: 10

$

$

Currently unavailable

6

Husqvarna 588447001

NEEDS DESCRIPTION

Note: 30206

$

$

Currently unavailable

8

Husqvarna 588447201

NEEDS DESCRIPTION

Note: 12

$

$

Currently unavailable

14

Husqvarna 588456001

NEEDS DESCRIPTION

Note: 60x45.5x0.5

$

$

Currently unavailable

2

Husqvarna 588446601

NEEDS DESCRIPTION

Note: 6009

$

$

Currently unavailable

4

Husqvarna 588446801

NEEDS DESCRIPTION

Note: Umbrella gear

$

$

Currently unavailable

17

Husqvarna 588456601

NEEDS DESCRIPTION

Note: Transmission Case End

$

$

Currently unavailable

12

Husqvarna 588467001

NEEDS DESCRIPTION

Note: Hexagonal Output Sleeve

$

$

Currently unavailable

7

Husqvarna 588447101

NEEDS DESCRIPTION

Note: Driven umbrella

$

$

Currently unavailable

9

Husqvarna 588447301

NEEDS DESCRIPTION

Note: M12

$

$

Currently unavailable

15

Husqvarna 588456201

NEEDS DESCRIPTION

Note: 32009

$

$

Currently unavailable

5

Husqvarna 588446901

NEEDS DESCRIPTION

Note: 30204

$

$

Currently unavailable

10

Husqvarna 588447501

NEEDS DESCRIPTION

Note: 2.5x20

$

$

Currently unavailable

16

Husqvarna 588456301

NEEDS DESCRIPTION

Note: Transmission Case, diam.0.5

$

$

Currently unavailable

20

Husqvarna 588456901

NEEDS DESCRIPTION

Note: M10x30

$

$

Currently unavailable

3

Husqvarna 588446701

NEEDS DESCRIPTION

Note: Walking case

$

$

Currently unavailable

21

Husqvarna 588416801

NEEDS DESCRIPTION

Note: 10.2x2.65

$

$

Currently unavailable

11

Husqvarna 588467101

NEEDS DESCRIPTION

Note: Output

$

$

Currently unavailable

19

Husqvarna 587936801

NEEDS DESCRIPTION

Note: 10

$

$

Currently unavailable

22

Husqvarna 587945101

NEEDS DESCRIPTION

Note: M12x1.25x10

$

$

Currently unavailable

1

Husqvarna 588445601

NEEDS DESCRIPTION

Note: B45x62x8

$

$

Currently unavailable

13

Husqvarna 588455801

NEEDS DESCRIPTION

Note: Walking umbrella

$

$

Currently unavailable
