TF 545 P (967639302) - Husqvarna Front-Tine Tiller (2017-02) TRANSMISSION 4 Parts Diagram

Front-Tine Tiller

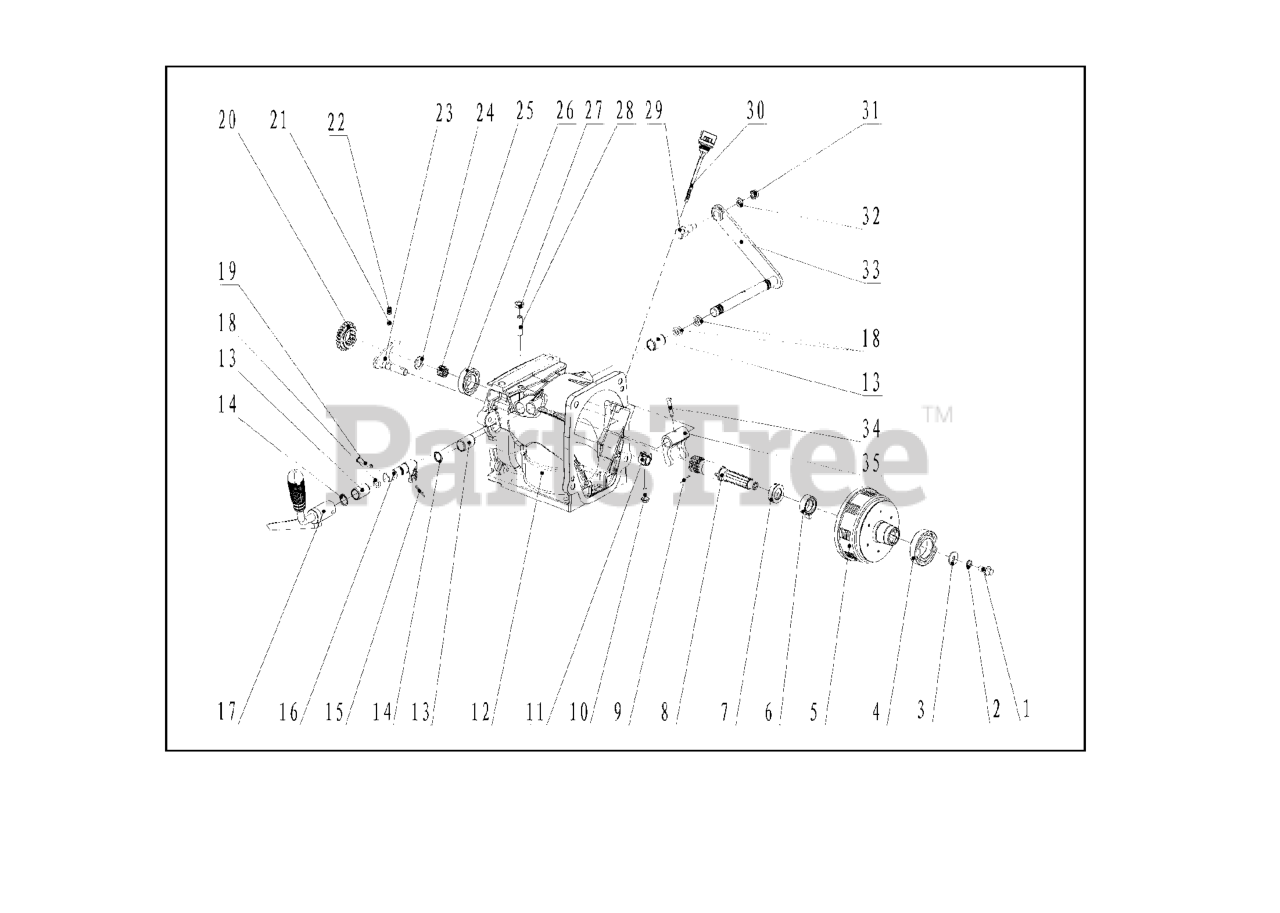

TRANSMISSION 4 Parts Diagram

  • Title
16

Husqvarna 590352101

NEEDS DESCRIPTION

Note: Shift gear 2

$

$

Currently unavailable

17

Husqvarna 590352301

NEEDS DESCRIPTION

$

$

Currently unavailable

35

Husqvarna 588417001

NEEDS DESCRIPTION

Note: Clutch

$

$

Currently unavailable

20

Husqvarna 590352401

NEEDS DESCRIPTION

Note: Main, gear A

$

$

Currently unavailable

14

Husqvarna 588444201

NEEDS DESCRIPTION

Note: 16

$

$

Currently unavailable

27

Husqvarna 590353201

NEEDS DESCRIPTION

Note: M10

$

$

Currently unavailable

18

Husqvarna 588416301

NEEDS DESCRIPTION

Note: 11.2x2.65

$

$

Currently unavailable

31

Husqvarna 588416701

NEEDS DESCRIPTION

$

$

Currently unavailable

13

Husqvarna 590349501

NEEDS DESCRIPTION

Note: 16x20x30

$

$

Currently unavailable

9

Husqvarna 590347901

NEEDS DESCRIPTION

Note: 2x28

$

$

Currently unavailable

12

Husqvarna 589895801

NEEDS DESCRIPTION

Note: Transmission case

$

$

Currently unavailable

6

Husqvarna 588443301

NEEDS DESCRIPTION

Note: T09 Sheath

$

$

Currently unavailable

22

Husqvarna 590352601

NEEDS DESCRIPTION

Note: Shift gear

$

$

Currently unavailable

24

Husqvarna 590352801

NEEDS DESCRIPTION

Note: 14.5x23x2

$

$

Currently unavailable

2

Husqvarna 588413201

NEEDS DESCRIPTION

Note: 8

$

$

Currently unavailable

29

Husqvarna 588466901

NEEDS DESCRIPTION

Note: Clutch cable seat

$

$

Currently unavailable

23

Husqvarna 590352701

NEEDS DESCRIPTION

Note: Vice speed fork

$

$

Currently unavailable

19

Husqvarna 588416901

NEEDS DESCRIPTION

Note: 6x30

$

$

Currently unavailable

15

Husqvarna 590349601

NEEDS DESCRIPTION

Note: F

$

$

Currently unavailable

25

Husqvarna 590352901

NEEDS DESCRIPTION

Note: KT14x18x13

$

$

Currently unavailable

11

Husqvarna 590349101

NEEDS DESCRIPTION

Note: Vice speed striker

$

$

Currently unavailable

32

Husqvarna 587937401

NEEDS DESCRIPTION

$

$

Currently unavailable

1

Husqvarna 587937001

NEEDS DESCRIPTION

Note: M8x20

$

$

Currently unavailable

33

Husqvarna 588416601

NEEDS DESCRIPTION

$

$

Currently unavailable

34

Husqvarna 588416901

NEEDS DESCRIPTION

Note: 6x30

$

$

Currently unavailable

8

Husqvarna 590347701

NEEDS DESCRIPTION

Note: Input

$

$

Currently unavailable

21

Husqvarna 590352501

NEEDS DESCRIPTION

Note: Diam.8 steel

$

$

Currently unavailable

10

Husqvarna 590348101

NEEDS DESCRIPTION

Note: M6x20

$

$

Currently unavailable

28

Husqvarna 590353301

NEEDS DESCRIPTION

Note: Pointless set screw M10x35

$

$

Currently unavailable

30

Husqvarna 590353401

NEEDS DESCRIPTION

Note: II Oil ruler

$

$

Currently unavailable

7

Husqvarna 588443201

NEEDS DESCRIPTION

Note: T09 friction tray

$

$

Currently unavailable

5

Husqvarna 590353001

NEEDS DESCRIPTION

$

$

Currently unavailable

4

Husqvarna 588413001

NEEDS DESCRIPTION

Note: 6007

$

$

Currently unavailable

26

Husqvarna 590353101

NEEDS DESCRIPTION

Note: 6005

$

$

Currently unavailable

3

Husqvarna 588413301

NEEDS DESCRIPTION

Note: 8

$

$

Currently unavailable
