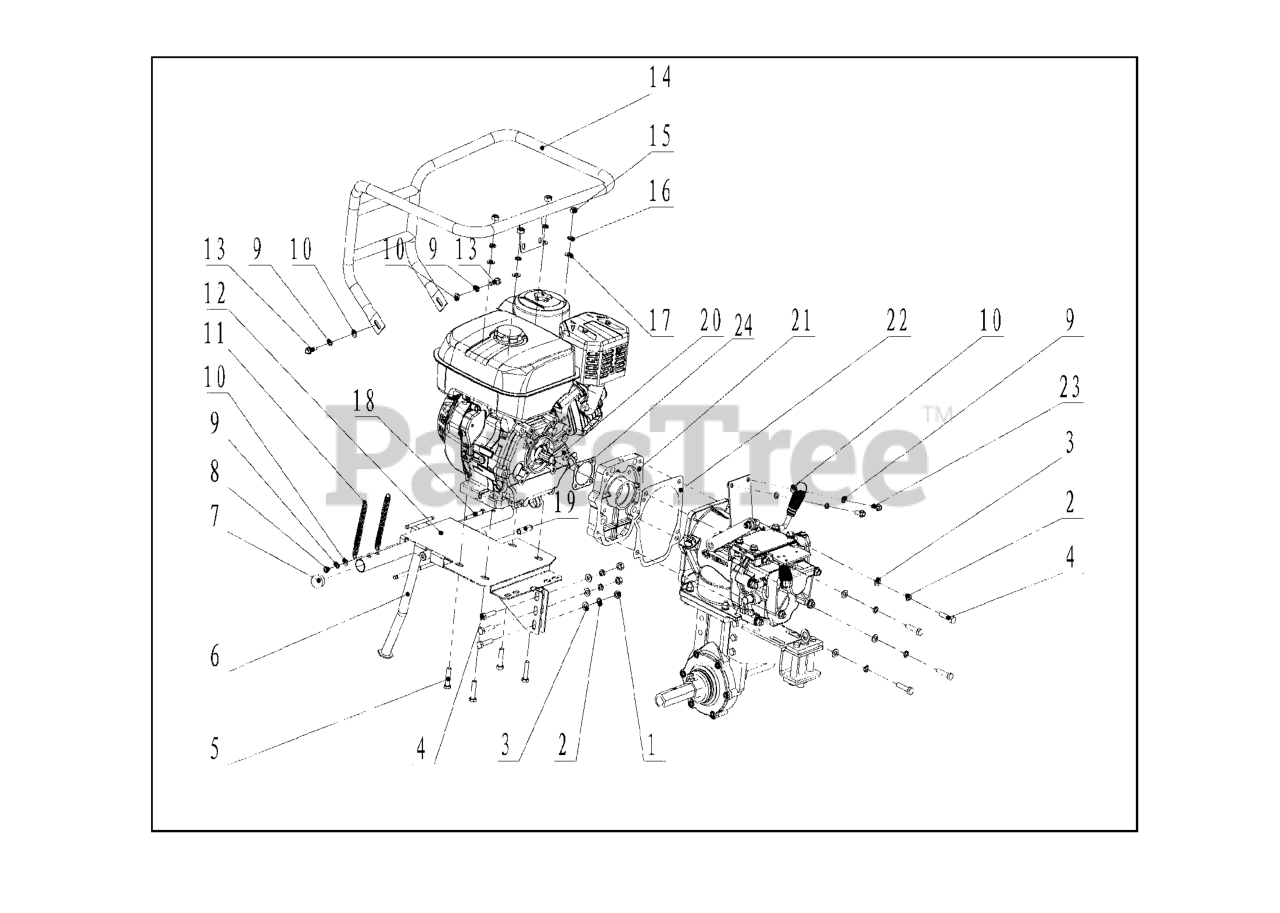

TF 545 P (967639302) - Husqvarna Front-Tine Tiller (2017-02) ENGINE Parts Diagram

Front-Tine Tiller

ENGINE Parts Diagram

  • Title
19

Husqvarna 590368501

NEEDS DESCRIPTION

$

$

Currently unavailable

9

Husqvarna 587949101

NEEDS DESCRIPTION

Note: 8

$

$

Currently unavailable

22

Husqvarna 590368701

NEEDS DESCRIPTION

Note: II flange

$

$

Currently unavailable

5

Husqvarna 590425401

NEEDS DESCRIPTION

Note: M10x45

$

$

Currently unavailable

23

Husqvarna 588458201

NEEDS DESCRIPTION

Note: M8x20

$

$

Currently unavailable

8

Husqvarna 588457101

NEEDS DESCRIPTION

Note: M8

$

$

Currently unavailable

6

Husqvarna 590425501

NEEDS DESCRIPTION

Note: Supporting Leg

$

$

Currently unavailable

2

Husqvarna 587936801

NEEDS DESCRIPTION

Note: 10

$

$

Currently unavailable

4

Husqvarna 588409501

NEEDS DESCRIPTION

Note: M10x40

$

$

Currently unavailable

20

Husqvarna 590425801

NEEDS DESCRIPTION

Note: 177F-2/P Gasoline

$

$

Currently unavailable

24

Husqvarna 531416901

NEEDS DESCRIPTION

$

$

Currently unavailable

10

Husqvarna 587949001

NEEDS DESCRIPTION

Note: 8

$

$

Currently unavailable

3

Husqvarna 587982901

NEEDS DESCRIPTION

Note: 10

$

$

Currently unavailable

21

Husqvarna 590425901

NEEDS DESCRIPTION

Note: Flange sealing gasket 9*16*3.2mm (Rubber) - can be ordered locally.

$

$

Currently unavailable

13

Husqvarna 588458601

NEEDS DESCRIPTION

Note: M8x20

$

$

Currently unavailable

18

Husqvarna 588458901

NEEDS DESCRIPTION

Note: M8x60

$

$

Currently unavailable

1

Husqvarna 587958801

NEEDS DESCRIPTION

Note: M10

$

$

Currently unavailable

17

Husqvarna 587982901

NEEDS DESCRIPTION

Note: 10

$

$

Currently unavailable

14

Husqvarna 590425701

NEEDS DESCRIPTION

$

$

Currently unavailable

11

Husqvarna 588457001

NEEDS DESCRIPTION

Note: Surpporting Leg

$

$

Currently unavailable

12

Husqvarna 590425601

NEEDS DESCRIPTION

$

$

Currently unavailable

15

Husqvarna 587958801

NEEDS DESCRIPTION

Note: M10

$

$

Currently unavailable

16

Husqvarna 587936801

NEEDS DESCRIPTION

Note: 10

$

$

Currently unavailable

7

Husqvarna 588457301

NEEDS DESCRIPTION

Note: Bumper

$

$

Currently unavailable
