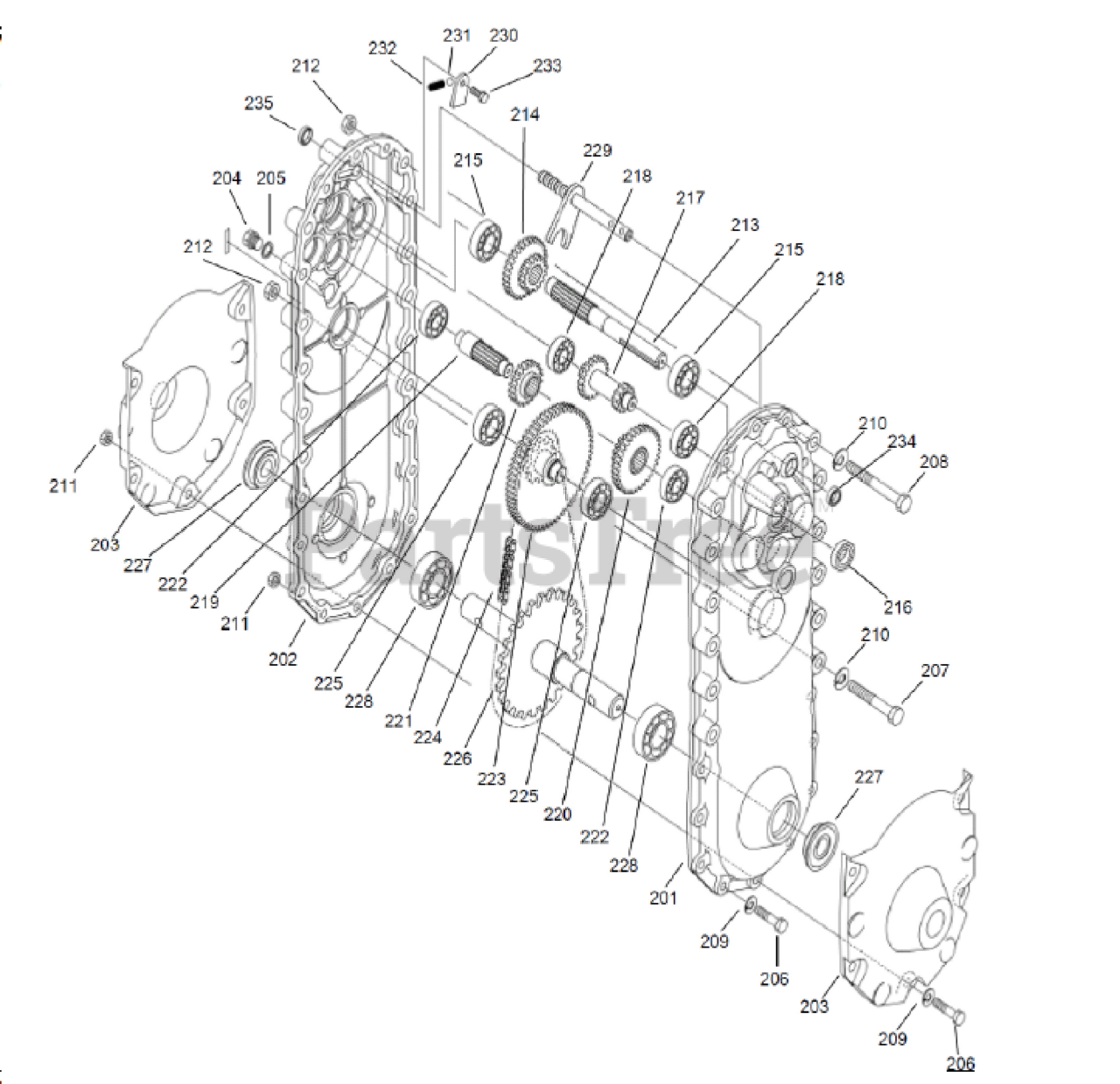

TF 536 (967329901) - Husqvarna Front-Tine Tiller (2014-11) PRODUCT COMPLETE 2 Parts Diagram

Front-Tine Tiller

PRODUCT COMPLETE 2 Parts Diagram

  • Title
203

Husqvarna 580539001

NEEDS DESCRIPTION

Note: Cover

$

$

Currently unavailable

232

Husqvarna 501997401

SPRING 0002010237

Note: Spring

$

$

Not available

204

Husqvarna 580539101

NEEDS DESCRIPTION

Note: Plug M20x14

$

$

Currently unavailable

210

Husqvarna 519653160

NEEDS DESCRIPTION

Note: Spring washer M10

$

$

Currently unavailable

211

Husqvarna 505027001

NEEDS DESCRIPTION

Note: Nut M8

$

$

Currently unavailable

219

Husqvarna 580539901

NEEDS DESCRIPTION

Note: Shaft 3

$

$

Currently unavailable

223

Husqvarna 580540201

NEEDS DESCRIPTION

Note: Shaft 4

$

$

Currently unavailable

212

Husqvarna 519653456

NUT

Note: Nut M10

$

$

Not available

206

Husqvarna 580539301

NEEDS DESCRIPTION

Note: Screw M8x35

$

$

Currently unavailable

209

Husqvarna 519000995

WASHER

Note: Spring washer M8

$

$

Not available

215

Husqvarna 501996301

BALL BEARING 0002010226

Note: Ball bearing 6203

$

$

Not available

234

Husqvarna 580540801

NEEDS DESCRIPTION

Note: Oil seal

$

$

Currently unavailable

208

Husqvarna 580539401

NEEDS DESCRIPTION

Note: Screw M10x75

$

$

Currently unavailable

228

Husqvarna 580540501

BALL BEARING 6205

Note: Ball bearing 6205

$20.99

$

Usually ships in 3-10 days

0

233

Husqvarna 504052701

NEEDS DESCRIPTION

Note: Screw M6x16

$

$

Currently unavailable

220

Husqvarna 580540001

NEEDS DESCRIPTION

Note: Gear 16-34

$

$

Currently unavailable

231

Husqvarna 544353301

NEEDS DESCRIPTION

Note: Ball (1/4in)

$

$

Currently unavailable

202

Husqvarna 580538901

NEEDS DESCRIPTION

Note: Case mission R

$

$

Currently unavailable

201

Husqvarna 580538801

NEEDS DESCRIPTION

Note: Case mission L

$

$

Currently unavailable

218

Husqvarna 544176801

NEEDS DESCRIPTION

Note: Ball bearing 6202

$

$

Currently unavailable

225

Husqvarna 501996301

BALL BEARING 0002010226

Note: Ball bearing 6203

$

$

Not available

229

Husqvarna 580540601

NEEDS DESCRIPTION

Note: Shift shaft

$

$

Currently unavailable

214

Husqvarna 580539601

NEEDS DESCRIPTION

Note: Gear 16-30

$

$

Currently unavailable

216

Husqvarna 580539701

NEEDS DESCRIPTION

Note: Oil seal TC173007

$

$

Currently unavailable

213

Husqvarna 580539501

NEEDS DESCRIPTION

Note: Shaft 1

$

$

Currently unavailable

217

Husqvarna 580539801

NEEDS DESCRIPTION

Note: Shaft 2

$

$

Currently unavailable

226

Husqvarna 580540401

NEEDS DESCRIPTION

Note: Final shaft

$

$

Currently unavailable

205

Husqvarna 580539201

NEEDS DESCRIPTION

Note: Seal washer

$

$

Currently unavailable

221

Husqvarna 580540101

NEEDS DESCRIPTION

Note: Gear 20

$

$

Currently unavailable

222

Husqvarna 544176801

NEEDS DESCRIPTION

Note: Ball bearing 6202

$

$

Currently unavailable

207

Husqvarna 544313601

NEEDS DESCRIPTION

Note: Screw M10x70

$

$

Currently unavailable

235

Husqvarna 580540901

NEEDS DESCRIPTION

$

$

Currently unavailable

230

Husqvarna 580540701

NEEDS DESCRIPTION

Note: Plate

$

$

Currently unavailable

227

Husqvarna 531009475

NEEDS DESCRIPTION

Note: Oil seal TCFY254011

$

$

Currently unavailable

224

Husqvarna 580540301

NEEDS DESCRIPTION

Note: Chain EK520

$

$

Currently unavailable
