TF 435 P (967101301) - Husqvarna Front-Tine Tiller (2016-09) COVER Parts Diagram

Front-Tine Tiller

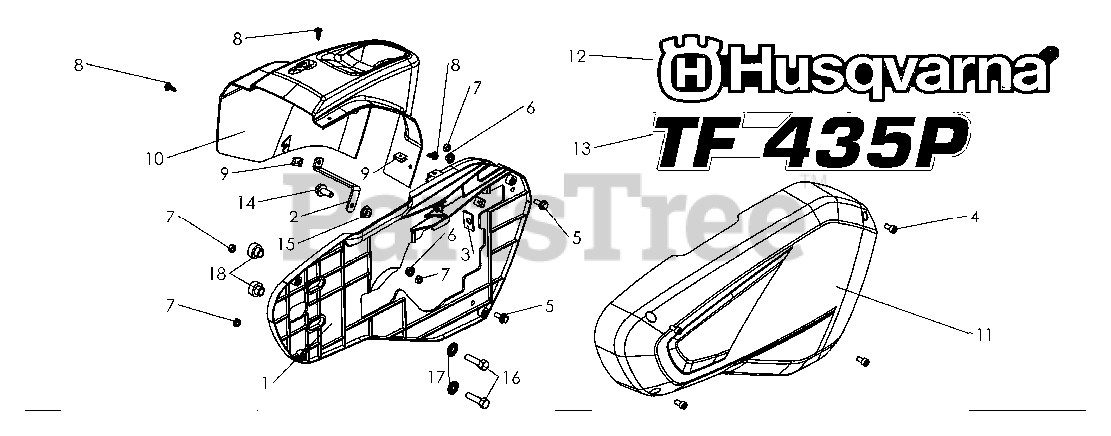

COVER Parts Diagram

  • Title

13

Husqvarna 590498101

NEEDS DESCRIPTION

Note: STICKER TF435P

$

$

Currently unavailable

16

Husqvarna 531008586

NEEDS DESCRIPTION

Note: SCREW 5/16 TH 24 UNF LG 32

$

$

Currently unavailable

12

Husqvarna 590171801

NEEDS DESCRIPTION

Note: STICKER HUSQVARNA

$

$

Currently unavailable

10

Husqvarna 590361801

NEEDS DESCRIPTION

Note: RIGHT COVER ORANGE

$

$

Currently unavailable

9

Husqvarna 519653425

CLIP

Note: CLIPS 4.2

$

$

Not available

4

Husqvarna 580313501

NEEDS DESCRIPTION

Note: SCREW CHC M6X12 Z

$

$

Currently unavailable

2

Husqvarna 590361701

NEEDS DESCRIPTION

Note: RIGHT COVER SUPPORT

$

$

Currently unavailable

11

Husqvarna 590171701

NEEDS DESCRIPTION

Note: BELT COVER ORANGE

$

$

Currently unavailable

18

Husqvarna 580314701

NEEDS DESCRIPTION

Note: SPACER SHOULDER 13X9X16.5 Z

$

$

Currently unavailable

17

Husqvarna 544314901

NEEDS DESCRIPTION

Note: CONTACT WASHER 8

$

$

Currently unavailable

15

Husqvarna 519653430

NUT

Note: NUT H MS Z NOTCHED SHOULDER

$

$

Not available

14

Husqvarna 519653433

NUT

Note: SCREW H M8X20 Z NOTCHED SHOULDER

$

$

Not available

8

Husqvarna 519653426

SCREW

Note: SCREW POZI 4.2X16 Z

$

$

Not available

7

Husqvarna 732261601

Blocking nut M 6 Z

Note: BLOCKING NUT M 6 Z

$

$

Not available

6

Husqvarna 519653432

NUT

Note: NUT H M6 Z NOTCHED SHOULDER

$

$

Not available

3

Husqvarna 580322401

NEEDS DESCRIPTION

Note: SNAP IN STOP

$

$

Currently unavailable

5

Husqvarna 519653435

SCREW

Note: SCREW HM 6X16 Z NOTCHED SHOULDER

$

$

Not available

1

Husqvarna 590361601

NEEDS DESCRIPTION

Note: INSIDE PROTECTOR

$

$

Currently unavailable
