TF 435 (967101201) - Husqvarna Front-Tine Tiller (2016-09) WHEELS & TIRES Parts Diagram

Front-Tine Tiller

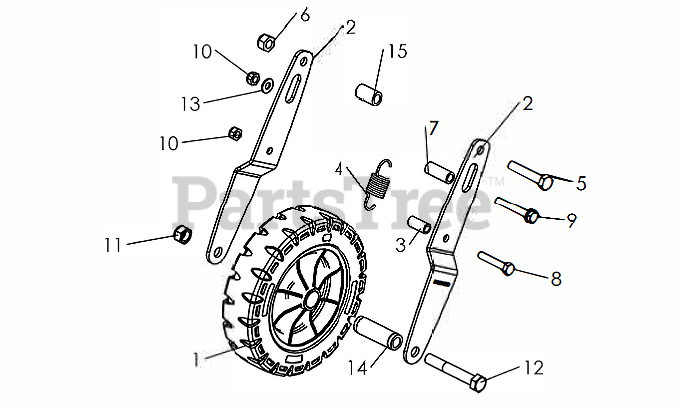

WHEELS & TIRES Parts Diagram

  • Title
5

Husqvarna 519653046

SCREW

Note: SCREW H M 1OX55 Z

$

$

Not available

15

Husqvarna 580315001

SPACER

Note: SPACER 16X10X26 Z

$

$

Not available

13

Husqvarna 544208101

WASHER

Note: PLATE WASHER M 8X18X1.5 Z

$

$

Not available

14

Husqvarna 575360801

NEEDS DESCRIPTION

Note: PLASTIC SPACER 20X12.5X61.5

$

$

Currently unavailable

3

Husqvarna 577520301

NEEDS DESCRIPTION

Note: SPACER 12X8X26 Z

$

$

Currently unavailable

4

Husqvarna 580315701

NEEDS DESCRIPTION

Note: DRAW SPRING 43X020X22/10 GALVA

$

$

Currently unavailable

10

Husqvarna 544207901

NUT

Note: BLOCKING NUT HM 8 Z

$

$

Not available

7

Husqvarna 575361001

NEEDS DESCRIPTION

Note: SPACER 14X9X35 z

$

$

Currently unavailable

6

Husqvarna 519653458

NUT

Note: BLOCKING NUT M 10 Z

$

$

Not available

1

Husqvarna 580318201

NEEDS DESCRIPTION

Note: WHEEL diam. 200 BORE 20

$

$

Currently unavailable

8

Husqvarna 580313401

NEEDS DESCRIPTION

Note: SCREW H M8X45 Z

$

$

Currently unavailable

12

Husqvarna 519653131

NEEDS DESCRIPTION

Note: SCREW H M 12X80 Z

$

$

Not available

11

Husqvarna 752255051

NEEDS DESCRIPTION

Note: BLOCKING NUT M 12 Z

$

$

Currently unavailable

9

Husqvarna 575361601

NEEDS DESCRIPTION

Note: SCREW H 8X55 Z NOTCHED SHOULDER

$

$

Currently unavailable

2

Husqvarna 580321601

NEEDS DESCRIPTION

Note: WHEEL SUPPORT BLACK RAL 9005

$

$

Currently unavailable
