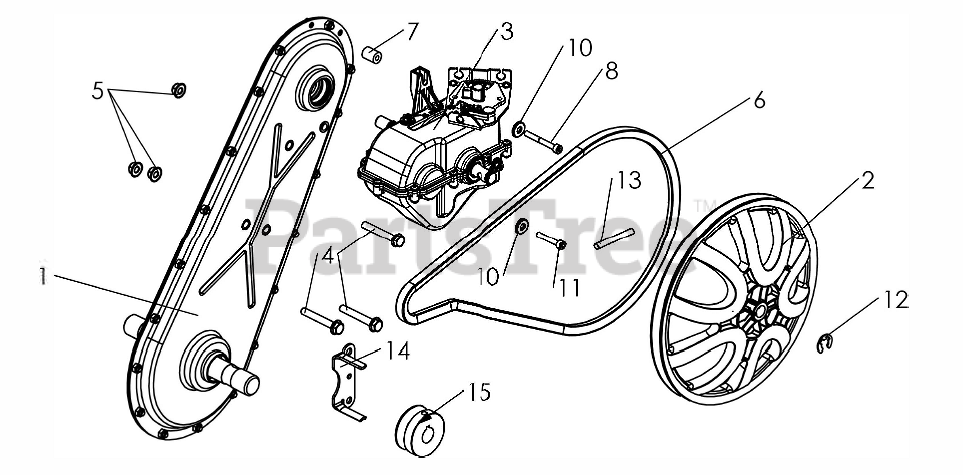

TF 435 (967101201) - Husqvarna Front-Tine Tiller (2016-09) TRANSMISSION Parts Diagram

Front-Tine Tiller

TRANSMISSION Parts Diagram

  • Title

11

Husqvarna 519653026

BOLT

Note: SCREW CHC M6X35 Z

$

$

Not available

5

Husqvarna 586721001

NEEDS DESCRIPTION

Note: SCREW BDR HM8 SMOOTH BASE

$

$

Currently unavailable

9

Husqvarna 732261601

Blocking nut M 6 Z

Note: BLOC KING NUT M 6 Z

$

$

Not available

7

Husqvarna 580314801

SPACER

Note: SPACER 14X6X18.4 Z

$

$

Not available

6

Husqvarna 580316401

NEEDS DESCRIPTION

Note: BELT

$

$

Currently unavailable

10

Husqvarna 531008390

WASHER

Note: SPECIAL WASHER 6.3X19X2.5 Z

$

$

Not available

3

Husqvarna 580321201

NEEDS DESCRIPTION

Note: GEAR BOX 2 FRONT SPEED 1 REVERSE SPEED

$

$

Currently unavailable

15

Husqvarna 544243901

PULLEY

Note: ENGINE PULLEY diam. 55 BORE 19,06

$

$

Not available

2

Husqvarna 580319001

NEEDS DESCRIPTION

Note: TRANSMISSION PULLEY diam. 260

$

$

Currently unavailable

14

Husqvarna 580315601

NEEDS DESCRIPTION

Note: DRIVE BELT ENGINE PULLEY diam. 55

$

$

Currently unavailable

13

Husqvarna 519653067

SHAFT

Note: PULLEY PIN SHAFT

$

$

Not available

12

Husqvarna 580314201

RETAINER RING

Note: RADIAL RETAINING RING diam. 12

$

$

Not available

4

Husqvarna 575361601

NEEDS DESCRIPTION

Note: SCREW H 8X55 Z NOTCHED SHOULDER

$

$

Currently unavailable

1

Husqvarna 580321001

NEEDS DESCRIPTION

Note: BOLTED TRANSMISSION 8/37

$

$

Currently unavailable

8

Husqvarna 519653010

BOLT

Note: SCREW CHC 6X50 Z

$

$

Not available
