TF 435 (967101201) - Husqvarna Front-Tine Tiller (2016-09) TINE ASSEMBLY Parts Diagram

Front-Tine Tiller

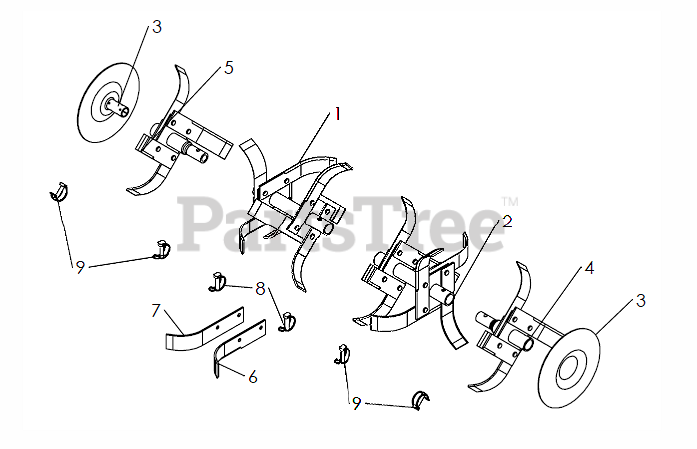

TINE ASSEMBLY Parts Diagram

  • Title

1

Husqvarna 531008521

NEEDS DESCRIPTION

Note: RIGHT TINE REMOVABLE diam. 25 HELICOID BLADE (40X4)

$

$

Currently unavailable

6

Husqvarna 531008547

NEEDS DESCRIPTION

Note: LEFT SPIRALE BLADE

$

$

Currently unavailable

3

Husqvarna 590173301

NEEDS DESCRIPTION

Note: DISK diam. 25 GREY 627

$

$

Currently unavailable

4

Husqvarna 531008522

NEEDS DESCRIPTION

Note: LEFT ADDITIONAL TINE diam. 25 HELICOID BLADE (40X4)

$

$

Currently unavailable

5

Husqvarna 531008523

NEEDS DESCRIPTION

Note: RIGHT ADDITIONAL TINE diam. 25 HELICOID BLADE (40X4)

$

$

Currently unavailable

7

Husqvarna 531008548

NEEDS DESCRIPTION

Note: RIGHT SPIRALE BLADE

$

$

Currently unavailable

9

Husqvarna 577453501

NEEDS DESCRIPTION

Note: CLIP PIN diam. 8 X36

$

$

Currently unavailable

8

Husqvarna 577453601

NEEDS DESCRIPTION

Note: CLIP PIN diam. 10 X36

$

$

Currently unavailable

2

Husqvarna 531008520

NEEDS DESCRIPTION

Note: LEFT TINE REMOVABLE diam. 25 HELICOID BLADE (40X4)

$

$

Currently unavailable
