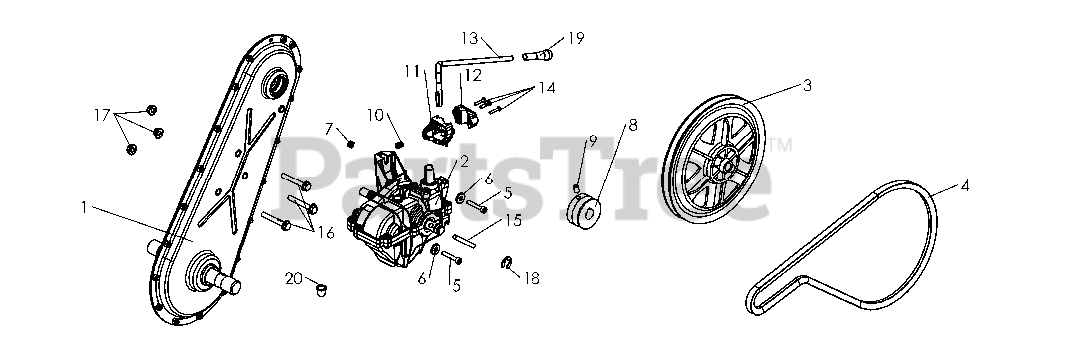

TF 335 (967101101) - Husqvarna Front-Tine Tiller (2016-09) TRANSMISSION 2 Parts Diagram

Front-Tine Tiller

TRANSMISSION 2 Parts Diagram

  • Title

9

Husqvarna 728692300

SCREW

Note: SCREW ST HC M8X16 DIN 914 45H

$

$

Not available

7

Husqvarna 732261601

Blocking nut M 6 Z

Note: BLOCKING NUT M 6 Z

$

$

Not available

12

Husqvarna 590213601

NEEDS DESCRIPTION

Note: SPEED LEVER CLAMP

$

$

Currently unavailable

6

Husqvarna 531008390

WASHER

Note: SPECIAL WASHER 6,3 X19X 2,5 Z

$

$

Not available

17

Husqvarna 586721001

NEEDS DESCRIPTION

Note: SCREW BDR HM8 SMOOTH BASE

$

$

Currently unavailable

15

Husqvarna 519653067

SHAFT

Note: PULLEY PIN SHAFT

$

$

Not available

2

Husqvarna 590213301

NEEDS DESCRIPTION

Note: GEAR BOX 2 FRONT SPEED 1 REVERSE SPEED

$

$

Currently unavailable

20

Husqvarna 590213901

NEEDS DESCRIPTION

Note: CAP

$

$

Currently unavailable

10

Husqvarna 580315801

NEEDS DESCRIPTION

Note: LOCKING SPRING

$

$

Currently unavailable

8

Husqvarna 544243901

PULLEY

Note: ENGINE PULLEY diam. 55 BORE 19,06

$

$

Not available

18

Husqvarna 580314201

RETAINER RING

Note: RADIAL RETAINING RING diam. 12

$

$

Not available

5

Husqvarna 519653026

BOLT

Note: SCREW CHC M6x35z

$

$

Not available

16

Husqvarna 575361601

NEEDS DESCRIPTION

Note: SCREW H 8X55 Z NOTCHED SHOULDER

$

$

Currently unavailable

13

Husqvarna 590213701

NEEDS DESCRIPTION

Note: SPEED LEVER

$

$

Currently unavailable

11

Husqvarna 590213501

NEEDS DESCRIPTION

Note: SELECTOR

$

$

Currently unavailable

3

Husqvarna 519653060

PULLEY

Note: TRANSMISSION PULLEY

$

$

Not available

19

Husqvarna 590213801

NEEDS DESCRIPTION

Note: LEVER CAP

$

$

Currently unavailable

14

Husqvarna 531009449

NEEDS DESCRIPTION

Note: SCREW WN 1452 K40X20 TORX

$

$

Currently unavailable

1

Husqvarna 590213201

NEEDS DESCRIPTION

Note: BOLTED TRANSMISSION 8/37

$

$

Currently unavailable

4

Husqvarna 590213401

NEEDS DESCRIPTION

Note: BELT

$

$

Currently unavailable
