TF 335 (967101101) - Husqvarna Front-Tine Tiller (2016-09) FRAME Parts Diagram

Front-Tine Tiller

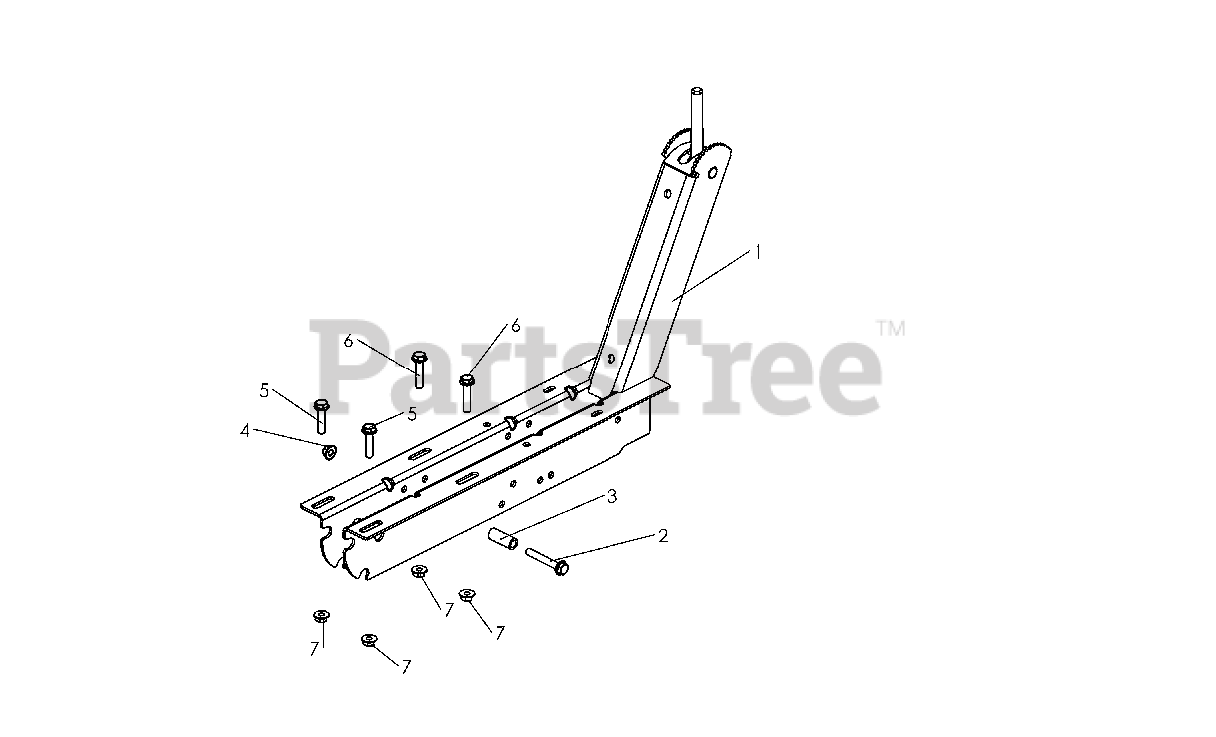

FRAME Parts Diagram

  • Title
1

Husqvarna 590213101

NEEDS DESCRIPTION

Note: FRAME GREY 627

$

$

Currently unavailable

5

Husqvarna 544207301

SCREW

Note: SCREW H 8x35 Z NOTCHED SHOULDER

$

$

Not available

4

Husqvarna 586721001

NEEDS DESCRIPTION

Note: SCREW BDR HM8 SMOOTH BASE

$

$

Currently unavailable

2

Husqvarna 575361601

NEEDS DESCRIPTION

Note: SCREW H 8X55 Z NOTCHED SHOULDER

$

$

Currently unavailable

6

Husqvarna 519653413

SCREW

Note: SCREW H M8X40 Z NOTCHED SHOULDER

$

$

Not available

3

Husqvarna 575361001

NEEDS DESCRIPTION

Note: SPACER 14X9X35 z

$

$

Currently unavailable

7

Husqvarna 519653430

NUT

Note: NUT H M8 Z NOTCHED SHOULDER

$

$

Not available
