TF 335 (967101101) - Husqvarna Front-Tine Tiller (2016-09) COVER Parts Diagram

Front-Tine Tiller

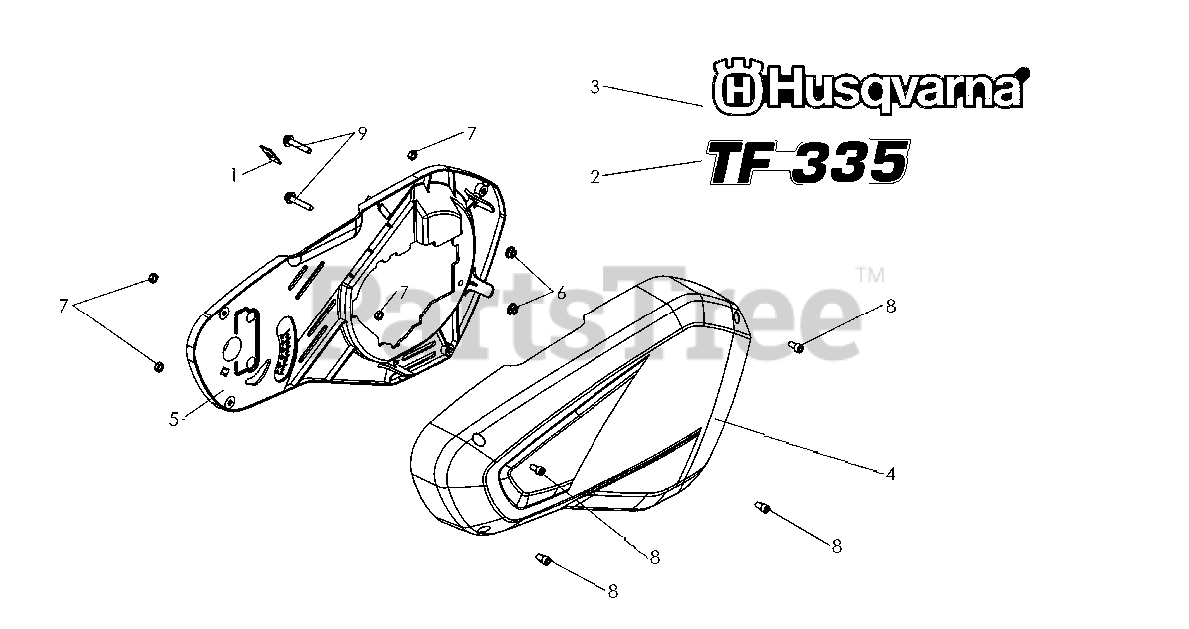

COVER Parts Diagram

  • Title
4

Husqvarna 590171701

NEEDS DESCRIPTION

Note: BELT COVER ORANGE

$

$

Currently unavailable

6

Husqvarna 519653432

NUT

Note: NUT H M6 NOTCHED SHOULDER

$

$

Not available

8

Husqvarna 580313501

NEEDS DESCRIPTION

Note: SREW CHC M6X12

$

$

Currently unavailable

7

Husqvarna 732261601

Blocking nut M 6 Z

Note: BLOCKING NUT M 6

$

$

Not available

9

Husqvarna 577519001

NEEDS DESCRIPTION

Note: SCREW H 6X35

$

$

Currently unavailable

5

Husqvarna 590215501

NEEDS DESCRIPTION

Note: INSIDE PROTECTOR

$

$

Currently unavailable

3

Husqvarna 590171801

NEEDS DESCRIPTION

Note: STICKER HUSQVARNA

$

$

Currently unavailable

1

Husqvarna 580322401

NEEDS DESCRIPTION

Note: SNAP IN STOP

$

$

Currently unavailable

2

Husqvarna 590215401

NEEDS DESCRIPTION

Note: STICKER TF335

$

$

Currently unavailable
