TF 325 (967101001) - Husqvarna Front-Tine Tiller (2016-09) CLUTCH Parts Diagram

Front-Tine Tiller

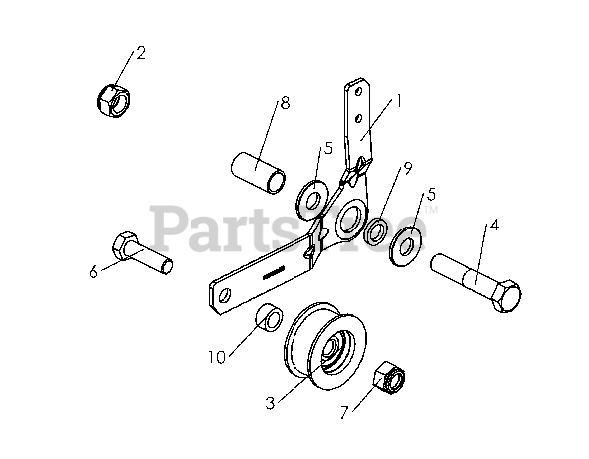

CLUTCH Parts Diagram

  • Title
3

Husqvarna 519653457

PULLEY

Note: RUNNER ROUL 6200 ZZ

$

$

Not available

8

Husqvarna 590361401

NEEDS DESCRIPTION

Note: 16X13X32.7

$

$

Currently unavailable

10

Husqvarna 590519501

NEEDS DESCRIPTION

Note: 10.5 X 16 X 8.4

$

$

Currently unavailable

7

Husqvarna 519653458

NUT

Note: M 10 Z

$

$

Not available

1

Husqvarna 590519401

NEEDS DESCRIPTION

Note: PRIMO

$

$

Currently unavailable

2

Husqvarna 752255051

NEEDS DESCRIPTION

Note: M 12 Z

$

$

Currently unavailable

9

Husqvarna 590361501

NEEDS DESCRIPTION

Note: 18X12.2X3

$

$

Currently unavailable

6

Husqvarna 519653455

SCREW

Note: H 10X35Z FST

$

$

Not available

5

Husqvarna 519653453

WASHER

Note: M 12X27X2.5 Z

$

$

Not available

4

Husqvarna 505026601

NEEDS DESCRIPTION

Note: H 12X60/30 Z

$

$

Currently unavailable
