TF 224 (960830011-00) - Husqvarna Front-Tine Tiller (2017-09) WHEEL & DEPTH STAKE ASSEMBLY Parts Diagram

Front-Tine Tiller

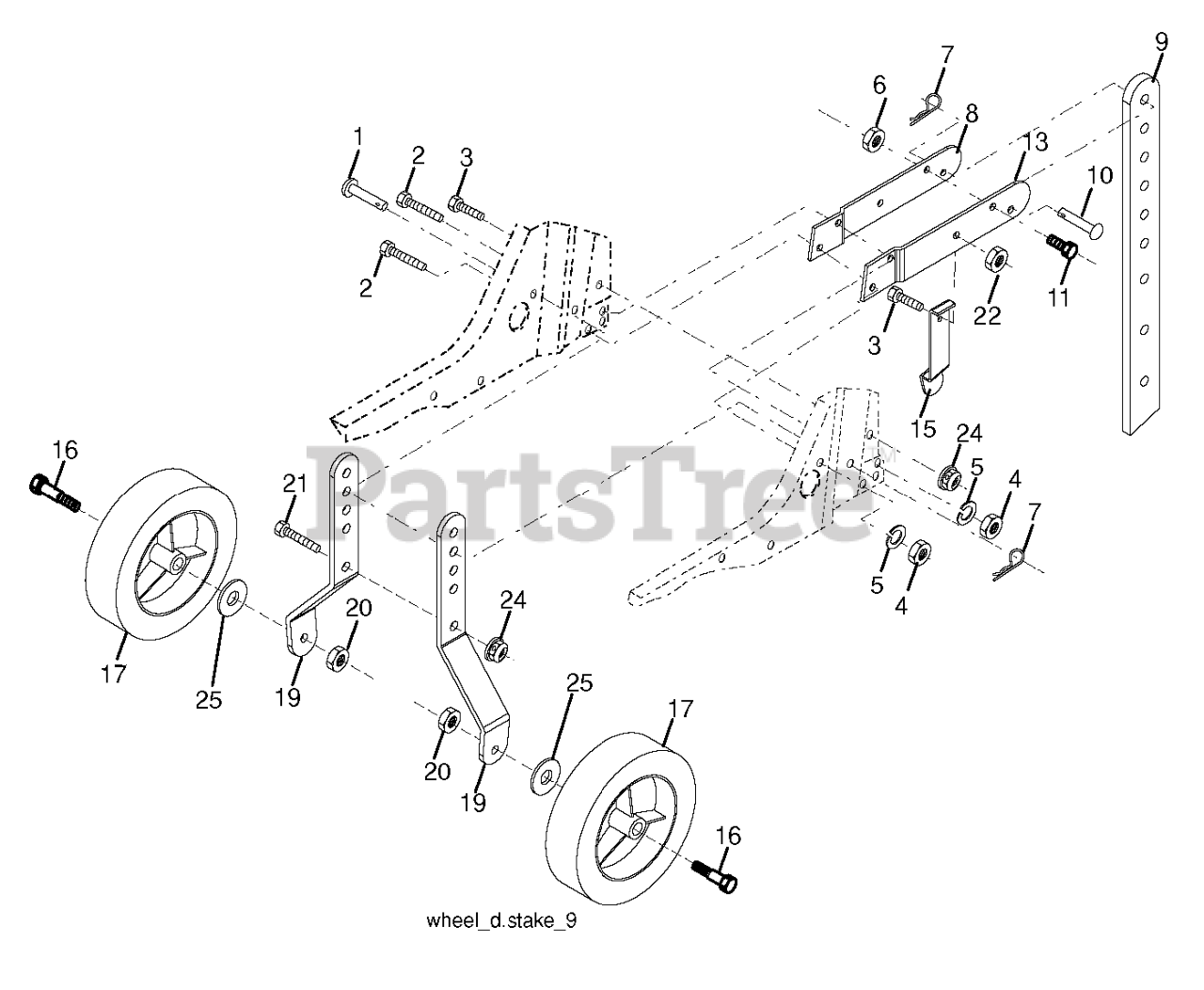

WHEEL & DEPTH STAKE ASSEMBLY Parts Diagram

  • Title
17

Husqvarna 532427025

WHEEL.8X1.75.STORM.GREY
(Superseded to 532427026)

$

$

Not available

10

Husqvarna 532446059

RIVET.PAN.HD.DRILLED
(Superseded to 532004929)

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532446061

SUPPORT.STAKE.DEPTH.RH.BLACK
(Superseded to 532001952)

Note: RH

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 819171416

Washer 1 17/32 X 7/8 X 16 Ga

$4.99

$

In Stock, Qty 8

0

2

Husqvarna 874760520

BOLT
(Superseded to 874780520)

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 873970500

LOCKNUT-FLANGE 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK

$3.99

$

Usually ships in 3-10 days

0

20

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 810040500

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

19

Husqvarna 532446011

BRACKET.WHEEL.BLACK

$

$

Not available

11

Husqvarna 874780628

BOLT
(Superseded to 582740701)

$6.49

$

In Stock, only 2 left!

0

16

Husqvarna 532121117

BOLT.SHOULDER

$8.99

$

In Stock, Qty 5

0

1

Husqvarna 532443676

PIN.CLEVIS.HD.25X1.75.TILLER

$13.99

$

In Stock, Qty 13

0

21

Husqvarna 874760516

BOLT RB
(Superseded to 874780516)

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 874780512

BOLT.FIN.HEX.5/16-18X3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 532124961

SPRING TI
(Superseded to 532004921)

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532446066

STAKE.DEPTH.13.25.W/9HOLES

$53.99

$

In Stock, only 1 left!

0

13

Husqvarna 532446060

SUPPORT.STAKE.DEPTH.LH.BLACK

Note: LH

$9.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532446063

SPRING.STAKE

$4.99

$

Usually ships in 3-10 days

0
