TF 1444 AR - Electrolux/AYP Lawn Tractor ENCLOSURES Parts Diagram

Lawn Tractor

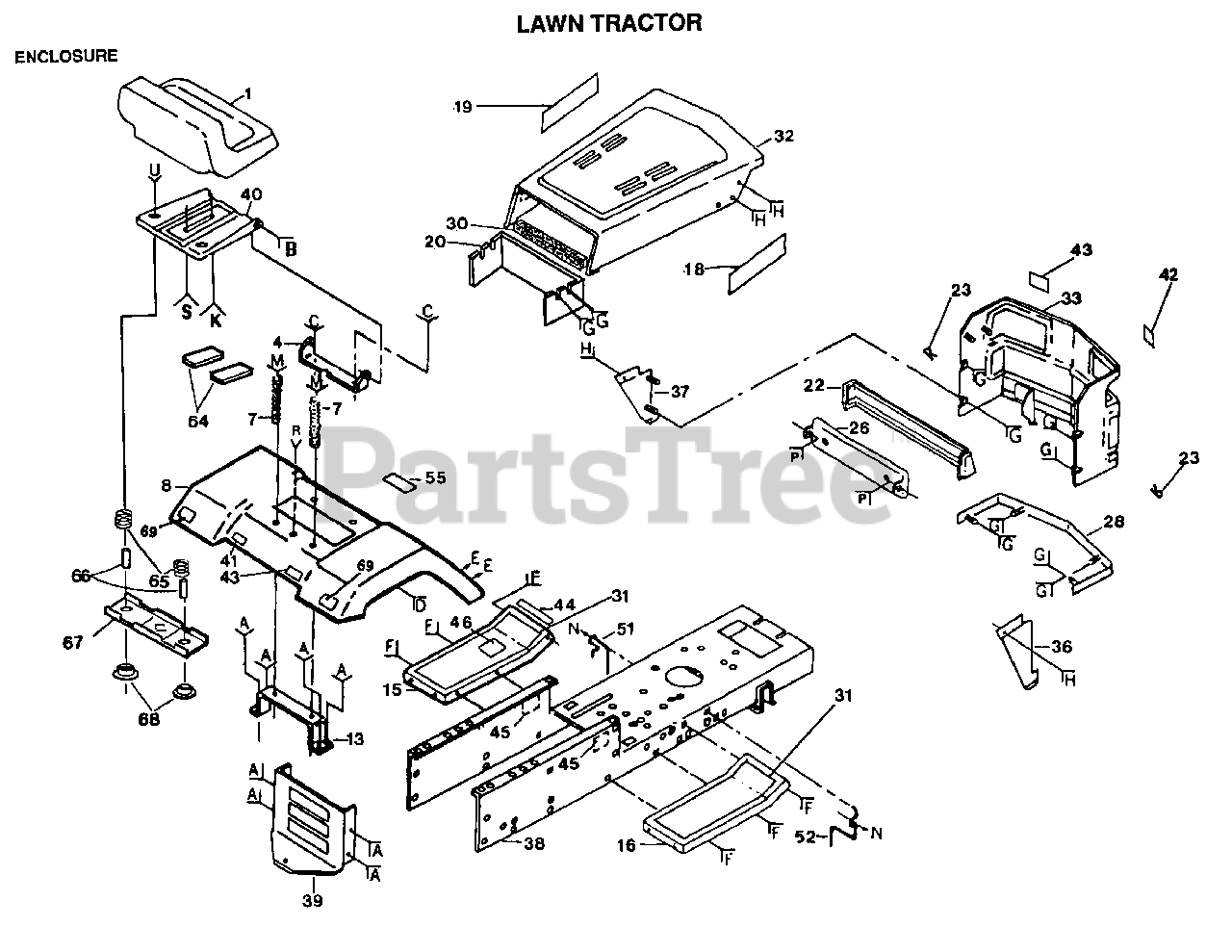

ENCLOSURES Parts Diagram

  • Title
1

$

$

Not available

4

$

$

Not available

7

Electrolux/AYP 124181X

SPRING COMPRESSIO
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

$

$

Not available

13

$

$

Not available

15

Electrolux/AYP 105465X419

SUB= 145244X419

$

$

Not available

16

$5.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 126625X

DECAL, HOOD R.H.

$

$

Not available

19

Electrolux/AYP 126626X

DECAL, HOOD L.H.

$

$

Not available

20

Electrolux/AYP 126023X

"SHIELD,HEAT"

$66.99

$

Usually ships in 3-10 days

0

22

$

$

Not available

23

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

Usually ships in 3-10 days

0

26

$

$

Not available

28

$

$

Not available

30

Electrolux/AYP 105037X

FOAM-STRIP LT
(Superseded to 532104915)

$

$

Not available

31

Electrolux/AYP 108256X

PAD FOOTREST T
(Superseded to 532108256)

$

$

Not available

32

Electrolux/AYP 124304X010

SUB= 124304X419

$

$

Not available

33

$

$

Not available

36

$4.49

$

Usually ships in 3-10 days

0

$

$

Not available

38

Electrolux/AYP 125814X

CHASSIS ASS'Y

$

$

Not available

39

Electrolux/AYP 121306X

SUB= 127866
(Superseded to 127866)

$

$

Not available

40

$

$

Not available

41

Electrolux/AYP 126628X

"DECAL,FENDER T"

$

$

Not available

42

Electrolux/AYP 126171X

"DECAL,GRILL"

$

$

Not available

43

Electrolux/AYP 126311X

"DECAL,GRILL HP T"

$

$

Not available

44

Electrolux/AYP 101892X

DECAL T
(Superseded to 532101892)

$

$

Not available

45

Electrolux/AYP 126309X

DECAL, CHASSIS, SPEED/DECK SIZE

$

$

Not available

46

Electrolux/AYP 109199X

SUB= 146046
(Superseded to 582965201)

$4.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 121440X

BELT GUIDE
(Superseded to 532121440)

$

$

Not available

52

Electrolux/AYP 121441X

BELT GUIDE
(Superseded to 131402)

$

$

Not available

55

$

$

Not available

64

Electrolux/AYP 121251X

STRIP FORM
(Superseded to 532121251)

$

$

Not available

65

Electrolux/AYP 121250X

SPRING
(Superseded to 532121250)

$7.49

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 121249X

SPACER SPLIT
(Superseded to 532121249)

$6.49

$

In Stock, only 2 left!

0

67

Electrolux/AYP 121246X

BRKT SWITCH
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 121248X

BUSHING
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 106202X

REFLECTOR-TAIL YT
(Superseded to 532106202)

$

$

Not available
