TF 1238 AR - Electrolux/AYP Lawn Tractor ENCLOSURES Parts Diagram

Lawn Tractor

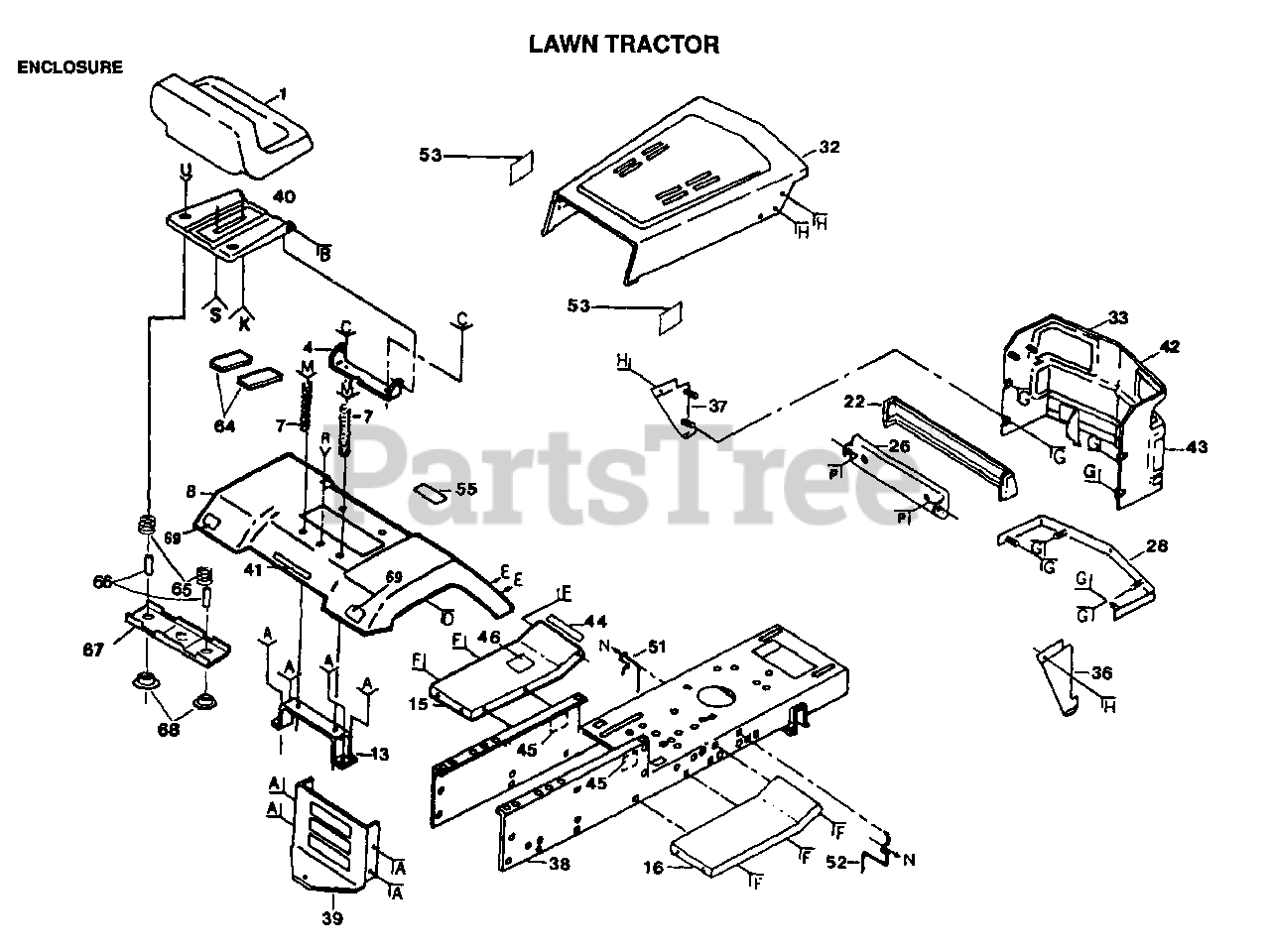

ENCLOSURES Parts Diagram

  • Title
1

$

$

Not available

2

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

3

Electrolux/AYP 17490616

SCREW GTV
(Superseded to 817000616)

$7.49

$

In Stock, only 3 left!

0

4

$

$

Not available

5

Electrolux/AYP 105529X

SUB= 139888
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

6

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 124181X

SPRING COMPRESSIO
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

$

$

Not available

9

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

10

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 3 left!

0

11

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

13

$

$

Not available

14

Electrolux/AYP 121144X

SUB= 127018X

$

$

Not available

15

Electrolux/AYP 105476X419

FOOTREST LH
(Superseded to 532182874)

$43.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 105475X419

FOOTREST
(Superseded to 179717X550)

$11.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 108067X

PAL NUT LT
(Superseded to 532108067)

$

$

Not available

22

$

$

Not available

24

Electrolux/AYP 19131210

WASHER
(Superseded to 819131210)

$

$

Not available

25

Electrolux/AYP 73800400

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

26

$

$

Not available

27

Electrolux/AYP 74780816

BOLT
(Superseded to 582741301)

$2.99

$

Usually ships in 3-10 days

0

28

$

$

Not available

$2.49

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 124304X010

SUB= 124304X419

$

$

Not available

33

$

$

Not available

36

$4.49

$

Usually ships in 3-10 days

0

$

$

Not available

38

Electrolux/AYP 123441X

CHASSIS ASS'Y

$

$

Not available

39

Electrolux/AYP 121306X

SUB= 127866
(Superseded to 127866)

$

$

Not available

40

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

44

Electrolux/AYP 101892X

DECAL T
(Superseded to 532101892)

$

$

Not available

$

$

Not available

46

Electrolux/AYP 109199X

SUB= 146046
(Superseded to 582965201)

$4.99

$

Usually ships in 3-10 days

0

47

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 10040800

LOCKWASHER
(Superseded to 810040800)

$6.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 19171912

WASHER
(Superseded to 819171912)

$7.49

$

In Stock, only 1 left!

0

50

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 121440X

BELT GUIDE
(Superseded to 532121440)

$

$

Not available

52

Electrolux/AYP 121441X

BELT GUIDE
(Superseded to 131402)

$

$

Not available

$

$

Not available

55

Electrolux/AYP 109823X

SUB= 120822X

$

$

Not available

56

Electrolux/AYP 124201X

SCREW SPECIAL
(Superseded to 583668901)

$2.99

$

Usually ships in 3-10 days

0

59

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

In Stock, only 1 left!

0

62

Electrolux/AYP 72170410

BOLT
(Superseded to 872170410)

$4.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 123976X

SUB= 73900400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

64

Electrolux/AYP 121251X

STRIP FORM
(Superseded to 532121251)

$

$

Not available

65

Electrolux/AYP 121250X

SPRING
(Superseded to 532121250)

$7.49

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 121249X

SPACER SPLIT
(Superseded to 532121249)

$6.49

$

In Stock, only 2 left!

0

67

Electrolux/AYP 121246X

BRKT SWITCH
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 121248X

BUSHING
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 106202X

REFLECTOR-TAIL YT
(Superseded to 532106202)

$

$

Not available
