TEC-640165 - Tecumseh Carburetor Carburetor Parts Diagram

Carburetor

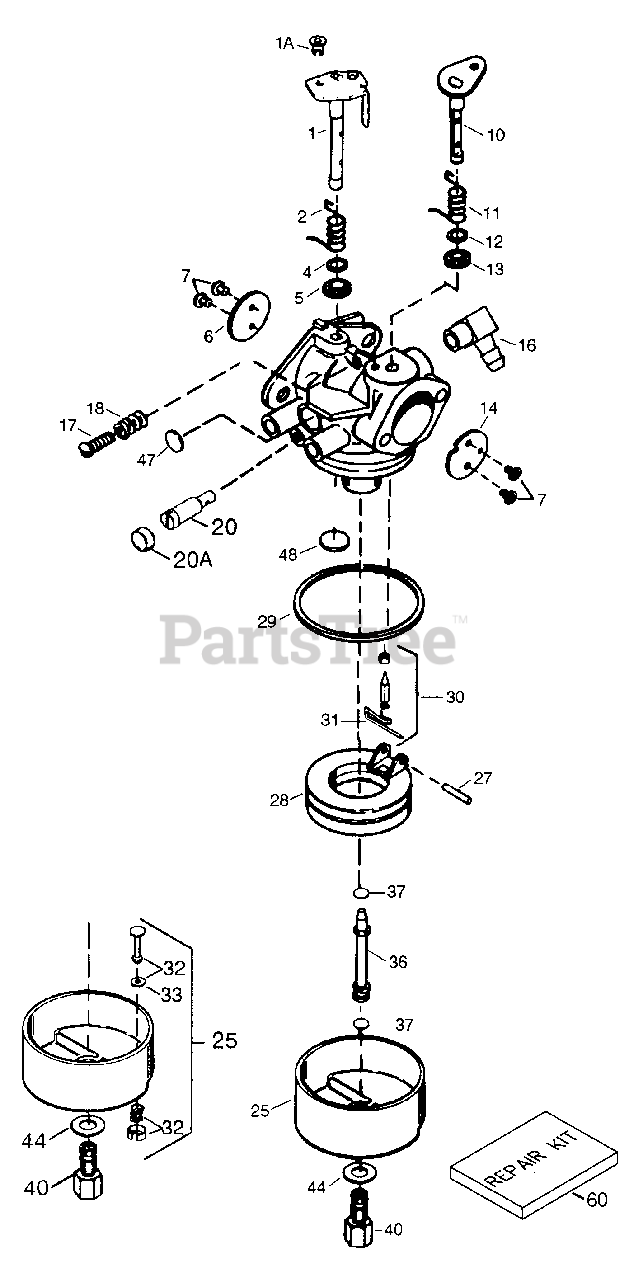

Carburetor Parts Diagram

  • Title

Tecumseh 640165

"Carburetor Incl. 184 of Engine PartsL ist

$92.99

$

Usually ships in 3-12 days

0

1A

Tecumseh 36288

Throttle Link Bushing

$1.99

$

In Stock, Qty 5

0

1

Tecumseh 632649

Throttle Shaft & Lever Assembly

$8.49

$

In Stock, only 1 left!

0

2

Tecumseh 632685

Throttle Return Spring

$1.99

$

In Stock, only 3 left!

0

4

Tecumseh 631184

* Dust Seal Washer

$1.99

$

In Stock, Qty 17

0

5

Tecumseh 631183

* Dust Seal (Throttle)

$1.99

$

In Stock, Qty 12

0

6

Tecumseh 632517

Throttle Shutter

$1.99

$

In Stock, Qty 7

0

7

Tecumseh 650506

* Shutter Screw

$1.49

$

In Stock, Qty 17

0

10

Tecumseh 632428

Choke Shaft & Lever Assembly

$

$

Not available

11

Tecumseh 632043

Choke Return Spring

$2131.99

$

Usually ships in 3-12 days

0

12

Tecumseh 631184

* Dust Seal Washer

$1.99

$

In Stock, Qty 17

0

13

Tecumseh 631183

* Dust Seal (Choke)

$1.99

$

In Stock, Qty 12

0

14

Tecumseh 632429A

Choke Shutter

$

$

Not available

15

Tecumseh 630735

Choke Positioning Spring

$1.99

$

In Stock, only 4 left!

0

16

Tecumseh 632527

Fuel Fitting

$8.49

$

In Stock, only 2 left!

0

17

Tecumseh 651025

Throttle Crack Screw/Idle Speed Screw

$1.99

$

In Stock, Qty 5

0

18

Tecumseh 630766

Tension Spring

$1.99

$

In Stock, only 2 left!

0

20

Tecumseh 640027

Idle Restrictor Screw

$3.99

$

In Stock, Qty 5

0

20A

Tecumseh 640053

Idle Restrictor Screw Cap

$1.49

$

In Stock, Qty 5

0

25

Tecumseh 631867

Float Bowl

$3.49

$

In Stock, Qty 14

0

27

Tecumseh 631024

* Float Shaft

$1.99

$

In Stock, Qty 11

0

28

Tecumseh 632802

Float (Plastic)
(Superseded to 632816)

$8.49

$

In Stock, only 1 left!

0

29

Tecumseh 631028

* Float Bowl "O" Ring
(Superseded to 631028A)

$2.49

$

In Stock, only 1 left!

0

30

Tecumseh 631021

* Inlet Needle, Seat, & Clip (Incl. 31)
(Superseded to 631021B)

$6.99

$

In Stock, Qty 13

0

31

Tecumseh 631022

Spring Clip

$1.99

$

In Stock, only 4 left!

0

36

Tecumseh 640113

Main Nozzle Tube

$6.99

$

Usually ships in 3-12 days

0

37

Tecumseh 632547

* Main Nozzle Tube "O" Ring

$4.49

$

In Stock, Qty 20+

0

40

Tecumseh 640163

High Speed Bowl Nut

$7.49

$

Usually ships in 3-12 days

0

44

Tecumseh 27110A

* Bowl Nut Washer

$2.49

$

In Stock, only 1 left!

0

47

Tecumseh 630748

* Welch Plug, Idle Mixture Well

$1.99

$

In Stock, only 3 left!

0

48

Tecumseh 631027

* Welch Plug, Atmospheric Vent

$1.99

$

In Stock, only 3 left!

0

60

Tecumseh 632760

Repair Kit Incl. items marked PK inn otes
(Superseded to 632760B)

$27.99

$

In Stock, Qty 20+

0
