TEC-632783 - Tecumseh Carburetor Carburetor Parts Diagram

Carburetor

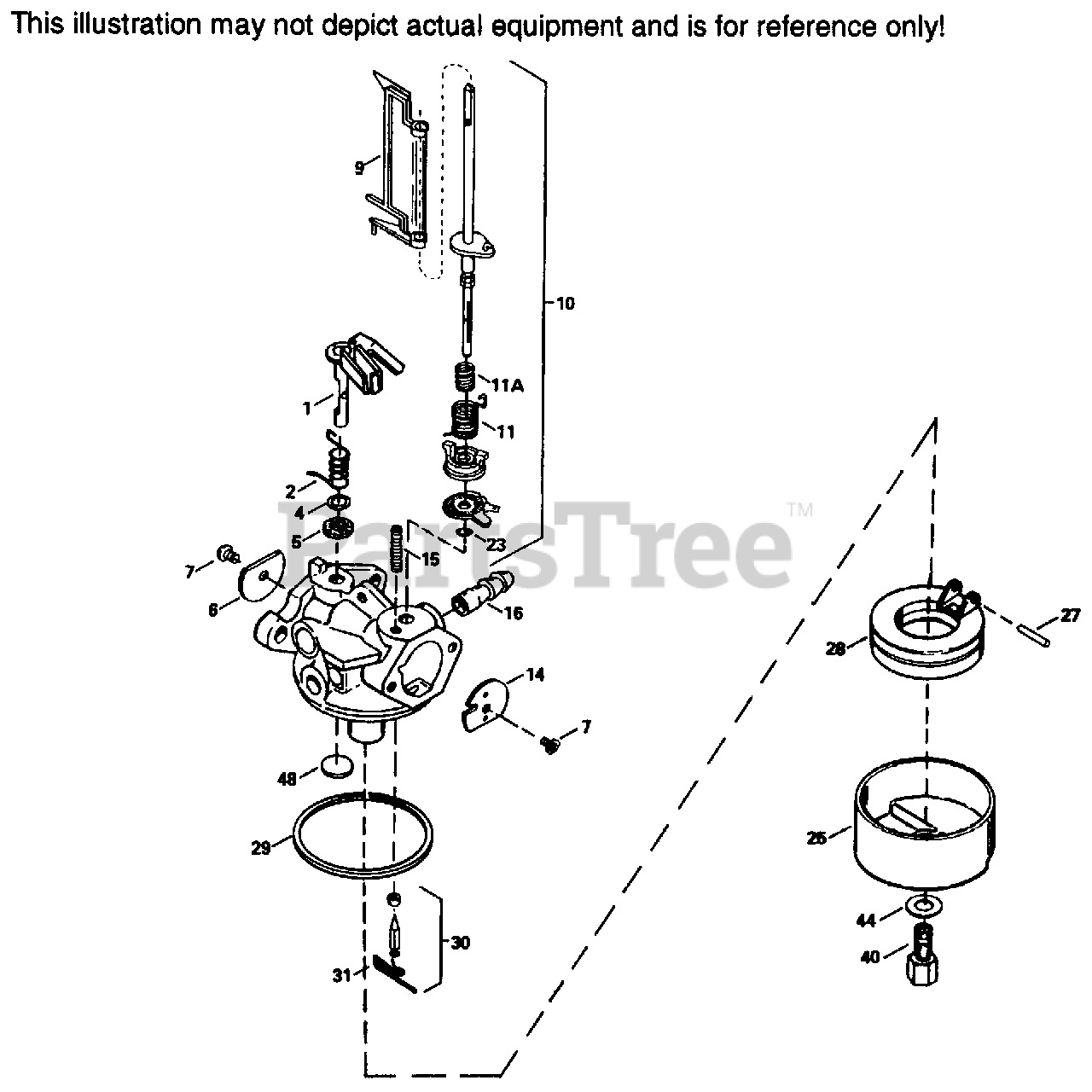

Carburetor Parts Diagram

  • Title

Tecumseh 632783

"Carburetor Incl. 184 of Engine PartsL ist

$

$

Not available

1

Tecumseh 632133A

Throttle Shaft & Lever Assembly

$

$

Not available

2

Tecumseh 632169

Throttle Return Spring

$1.99

$

Usually ships in 3-12 days

0

4

Tecumseh 631184

Dust Seal Washer

$1.99

$

In Stock, Qty 17

0

5

Tecumseh 631183

Dust Seal (Throttle)

$1.99

$

In Stock, Qty 12

0

6

Tecumseh 632168

Throttle Shutter

$

$

Not available

7

Tecumseh 650506

Shutter Screw

$1.49

$

In Stock, Qty 16

0

9

Tecumseh 632138

Air Vane

$10.99

$

Usually ships in 3-12 days

0

10

Tecumseh 632134

Choke Shaft & Lever Assembly

$19.99

$

Usually ships in 3-12 days

0

11

Tecumseh 632136

Choke Return Spring

$1.99

$

Usually ships in 3-12 days

0

11A

Tecumseh 632135

Compression Spring

$1.99

$

Usually ships in 3-12 days

0

14

Tecumseh 632137

Choke Shutter

$

$

Not available

15

Tecumseh 630735

Choke Positioning Spring

$1.99

$

In Stock, only 4 left!

0

16

Tecumseh 632164

Fuel Fitting

$3.99

$

In Stock, only 1 left!

0

23

Tecumseh 630740

"O" Ring

$2.49

$

In Stock, only 2 left!

0

25

Tecumseh 631700

Float Bowl

$7.49

$

In Stock, Qty 6

0

27

Tecumseh 631024

* Float Shaft

$1.99

$

In Stock, Qty 11

0

28

Tecumseh 632019

Float
(Superseded to 632019A)

$7.49

$

In Stock, Qty 10

0

29

Tecumseh 631028

* Float Bowl "O" Ring
(Superseded to 631028A)

$2.49

$

In Stock, Qty 9

0

30

Tecumseh 631021

* Inlet Needle, Seat & Clip (Incl. 31)
(Superseded to 631021B)

$6.99

$

In Stock, Qty 20+

0

31

Tecumseh 631022

Spring Clip

$1.99

$

In Stock, only 4 left!

0

40

Tecumseh 632368

* Main Adj. Screw Ass'y Incl. 41 thru44

$14.99

$

Usually ships in 3-12 days

0

41

Tecumseh 630740

High Speed Mixture Screw "O" Ring

$2.49

$

In Stock, only 2 left!

0

42

Tecumseh 630739

High Speed Mixture Screw Washer

$1.99

$

In Stock, Qty 6

0

43

Tecumseh 630738

High Speed Mixture Screw Tension Spri ng

$1.99

$

In Stock, Qty 8

0

44

Tecumseh 631334A

* Bowl Nut Washer

$3.49

$

In Stock, Qty 13

0

48

Tecumseh 631027

* Welch Plug, Atmospheric Vent

$1.99

$

In Stock, Qty 5

0

60

Tecumseh 632383

Repair Kit Incl. items marked PK inn otes

$23.99

$

In Stock, only 1 left!

0
