TEC-632651 - Tecumseh Carburetor Carburetor Parts Diagram

Carburetor

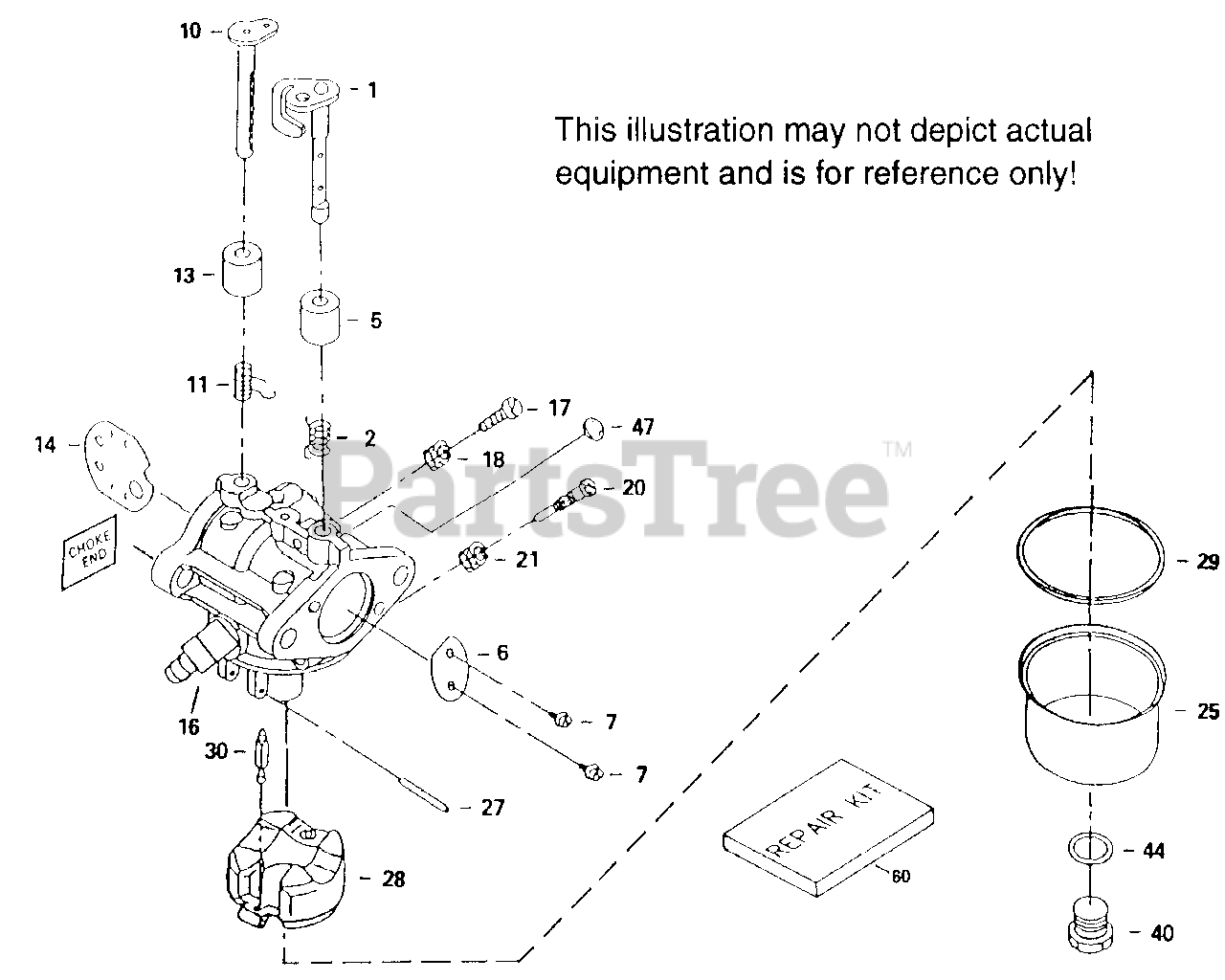

Carburetor Parts Diagram

  • Title

Tecumseh 632651

"Carburetor Incl. 184 of Engine PartsL ist

$

$

Not available

1

Tecumseh 632652

Throttle Shaft & Lever Ass'y.

$

$

Not available

2

Tecumseh 632653

Throttle Return Spring

$

$

Not available

5

Tecumseh 632039

Dust Seal (Throttle)

$5.49

$

Usually ships in 3-12 days

0

6

Tecumseh 632654

Throttle Shutter

$9.99

$

Usually ships in 3-12 days

0

7

Tecumseh 650506

Throttle & Choke Shutter Screw

$1.49

$

In Stock, Qty 14

0

10

Tecumseh 632655

Choke Shaft & Lever Ass'y.

$

$

Not available

11

Tecumseh 632656

Choke Return Spring

$

$

Not available

13

Tecumseh 632039

Dust Seal (Choke)

$5.49

$

Usually ships in 3-12 days

0

14

Tecumseh 632657

Choke Shutter

$

$

Currently unavailable

16

Tecumseh 632658

Fuel Fitting

$

$

Not available

17

Tecumseh 632659

Idle Speed Screw

$3.49

$

In Stock, only 1 left!

0

18

Tecumseh 632660

Tension Spring

$3.49

$

Usually ships in 3-12 days

0

20

Tecumseh 632661

* Idle Mixture Screw

$7.49

$

Usually ships in 3-12 days

0

21

Tecumseh 632660

Idle Tension Spring

$3.49

$

Usually ships in 3-12 days

0

25

Tecumseh 632662

Float Bowl

$19.99

$

Usually ships in 3-12 days

0

27

Tecumseh 632663

* Float Shaft

$5.49

$

Usually ships in 3-12 days

0

28

Tecumseh 632664

Float

$22.99

$

Usually ships in 3-12 days

0

29

Tecumseh 632665

* Float Bowl "O" Ring

$3.99

$

Usually ships in 3-12 days

0

30

Tecumseh 632666

* Inlet Needle

$15.99

$

In Stock, only 1 left!

0

40

Tecumseh 632449

Bowl Nut

$3.99

$

Usually ships in 3-12 days

0

44

Tecumseh 632447

* Bowl Nut Washer

$5.49

$

Usually ships in 3-12 days

0

47

Tecumseh 632667

* Welch Plug

$

$

Not available

60

Tecumseh 632668

Repair Kit (Incl. items marked PK in notes) Incl. 1 each of 632447,632661, 632663, 632665, 632666,632667

$24.99

$

Usually ships in 3-12 days

0
