TEC-632456A - Tecumseh Carburetor Carburetor Parts Diagram

Carburetor

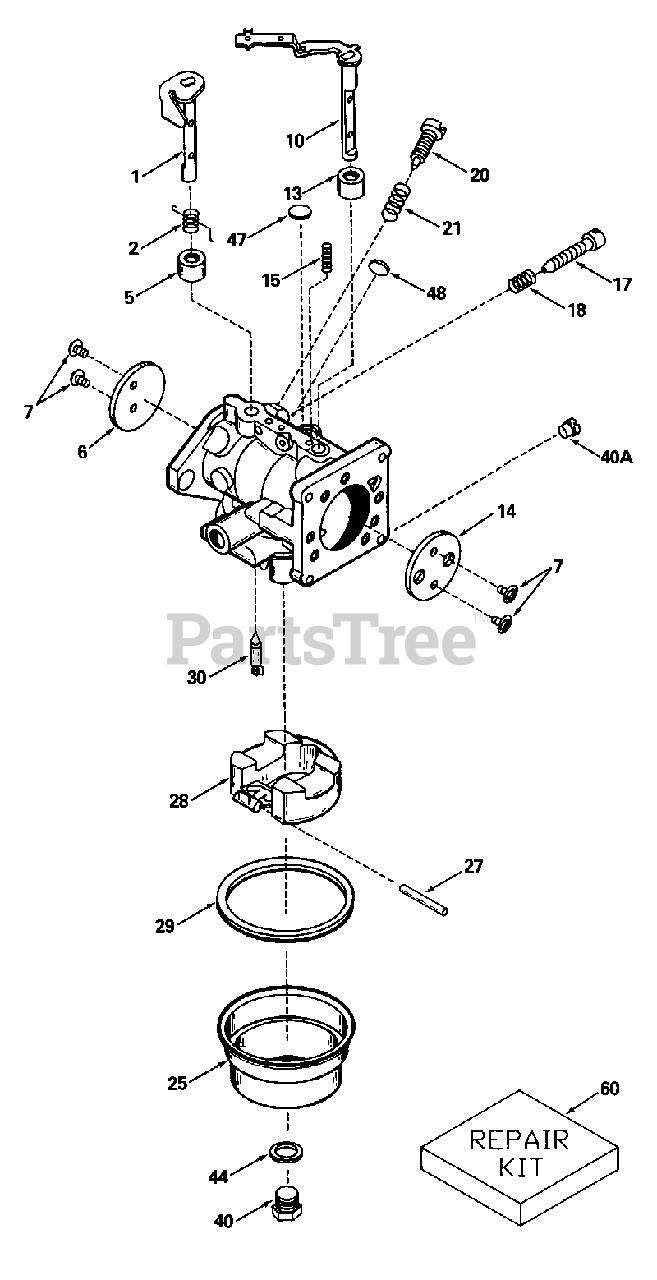

Carburetor Parts Diagram

  • Title

Tecumseh 632456A

"Carburetor Incl. 184 of Engine PartsL ist

$

$

Not available

1

Tecumseh 632439

Throttle Shaft & Lever Ass'y.

$28.99

$

Usually ships in 3-12 days

0

2

Tecumseh 632451

Throttle Return Spring

$3.99

$

In Stock, only 1 left!

0

5

Tecumseh 632039

* Dust Seal (Throttle)

$5.49

$

Usually ships in 3-12 days

0

6

Tecumseh 631613

Throttle Shutter

$

$

Currently unavailable

7

Tecumseh 650506

Throttle & Choke Shutter Screw

$1.49

$

In Stock, Qty 14

0

10

Tecumseh 632440

Choke Shaft & Lever Ass'y.

$34.99

$

In Stock, only 2 left!

0

13

Tecumseh 632039

* Dust Seal (Choke)

$5.49

$

Usually ships in 3-12 days

0

14

Tecumseh 632441

Choke Shutter

$8.99

$

Usually ships in 3-12 days

0

15

Tecumseh 27113

Choke Positioning Spring

$3.99

$

In Stock, only 1 left!

0

17

Tecumseh 632450

Idle Speed Screw

$

$

Not available

18

Tecumseh 632452

Tension Spring

$

$

Not available

20

Tecumseh 27112

* Idle Mixture Screw

$1.99

$

Usually ships in 3-12 days

0

21

Tecumseh 27114

Idle Tension Spring

$3.99

$

In Stock, only 1 left!

0

25

Tecumseh 632438

Float Bowl
(Superseded to 632438A)

$18.99

$

Usually ships in 3-12 days

0

27

Tecumseh 632443

* Float Shaft

$5.49

$

Usually ships in 3-12 days

0

28

Tecumseh 632442

Float

$

$

Not available

29

Tecumseh 632448

* Float Bowl "O" Ring

$5.49

$

Usually ships in 3-12 days

0

30

Tecumseh 632444

* Inlet Needle

$15.99

$

Usually ships in 3-12 days

0

40A

Tecumseh 632457

High Speed Jet

$15.99

$

Usually ships in 3-12 days

0

40

Tecumseh 632449

Bowl Nut

$3.99

$

Usually ships in 3-12 days

0

44

Tecumseh 632447

* Bowl Nut Washer

$5.49

$

Usually ships in 3-12 days

0

47

Tecumseh 632446

* Welch Plug

$

$

Not available

48

Tecumseh 632446

* Welch Plug

$

$

Not available

60

Tecumseh 632445

Repair Kit (Incl. items marked PK in notes) Incl. (1) each of part #'s2711 2, 632039, 632443, 632444,632446, 632 447, 632448

$39.99

$

Usually ships in 3-12 days

0
