TEC-632321B - Tecumseh Carburetor Carburetor Parts Diagram

Carburetor

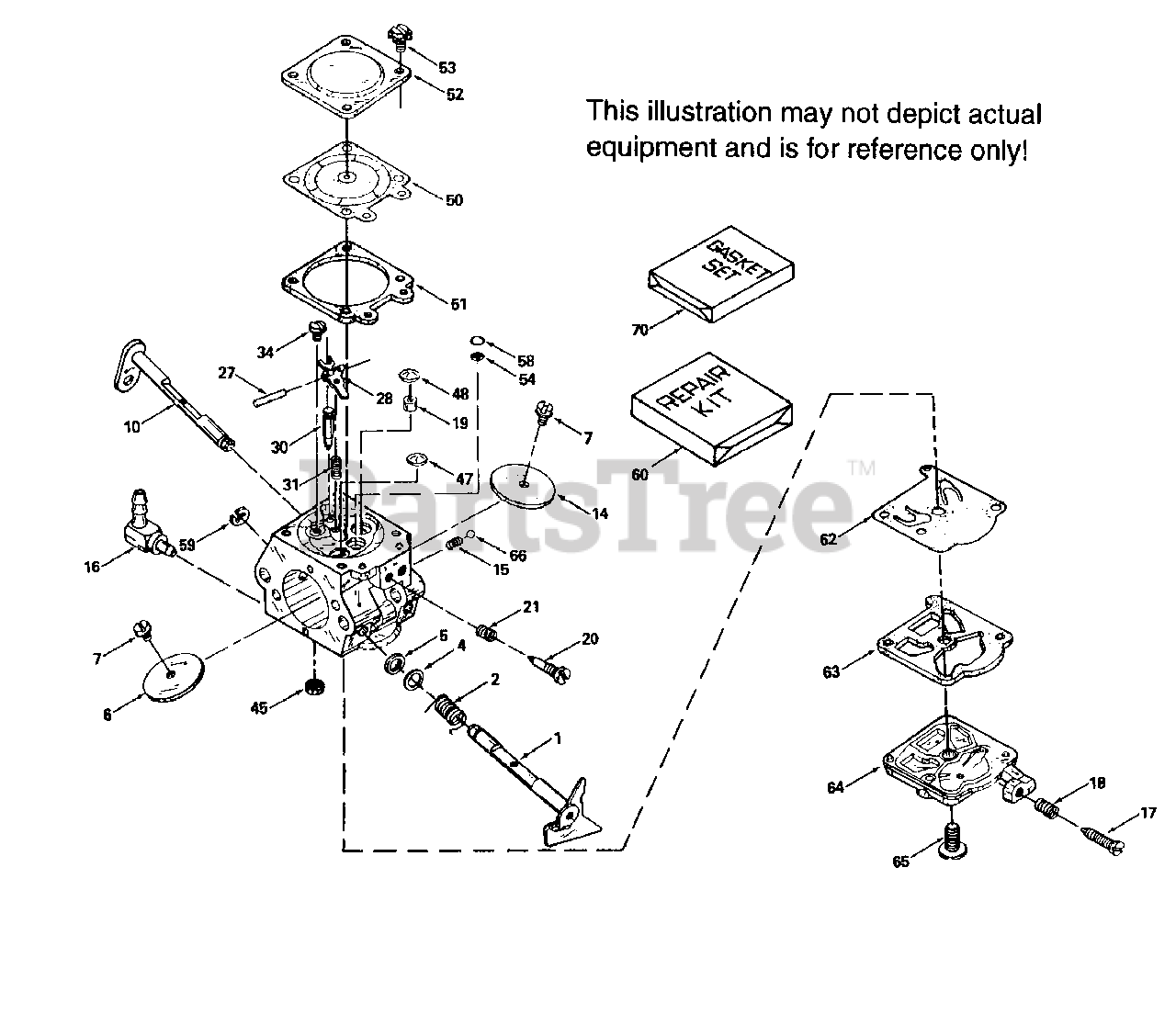

Carburetor Parts Diagram

  • Title

Tecumseh 632321B

"Carburetor Incl. 184 of Engine Parts List

$

$

Not available

1

Tecumseh 632418

Throttle Shaft & Lever Ass'y.

$

$

Not available

2

Tecumseh 632311

* Throttle Return Spring

$3.99

$

Usually ships in 3-12 days

0

4

Tecumseh 632313

Dust Seal Washer

$

$

Not available

5

Tecumseh 632317

Dust Seal (Throttle)

$1.99

$

In Stock, only 4 left!

0

6

Tecumseh 632292A

Throttle Shutter

$5.49

$

Usually ships in 3-12 days

0

7

Tecumseh 650506

* Throttle & Choke Shutter Screw

$1.49

$

In Stock, Qty 16

0

10

Tecumseh 632475

Choke Shaft & Lever Ass'y.

$20.99

$

Usually ships in 3-12 days

0

14

Tecumseh 632322

Choke Shutter

$

$

Not available

15

Tecumseh 632307

* Choke Positioning Spring

$3.49

$

Usually ships in 3-12 days

0

16

Tecumseh 632488

Fuel Fitting

$19.99

$

Usually ships in 3-12 days

0

17

Tecumseh 632306

Idle Speed Screw

$3.99

$

In Stock, only 1 left!

0

18

Tecumseh 632309

Tension Spring

$3.99

$

In Stock, only 1 left!

0

19

Tecumseh 632296

Check Valve Nozzle (Incl. 48)

$10.99

$

In Stock, only 1 left!

0

20

Tecumseh 632312

* Idle Mixture Screw

$9.49

$

In Stock, only 1 left!

0

21

Tecumseh 632310

Idle Tension Spring

$3.99

$

Usually ships in 3-12 days

0

27

Tecumseh 632316

* Hinge Pin

$

$

Not available

28

Tecumseh 632318

* Metering Lever

$5.49

$

Usually ships in 3-12 days

0

30

Tecumseh 632295

* Inlet Needle

$10.99

$

In Stock, only 2 left!

0

31

Tecumseh 632374

* Metering Lever Spring

$3.99

$

Usually ships in 3-12 days

0

34

Tecumseh 632304

* Metering Lever Pin Screw

$

$

Not available

45

Tecumseh 632315A

* Fuel Inlet Screen

$

$

Not available

47

Tecumseh 632297

* Welch Plug

$

$

Not available

48

Tecumseh 632298

* Welch Plug

$

$

Currently unavailable

50

Tecumseh 632303

* Diaphragm (Included in 60 & 70)
(Superseded to 632320A)

$27.99

$

Usually ships in 3-12 days

0

51

Tecumseh 632300A

* Cover Gasket (Included in 60 & 70)

$3.99

$

In Stock, only 2 left!

0

52

Tecumseh 632289

Cover

$

$

Not available

53

Tecumseh 650506

Cover Screw

$1.49

$

In Stock, Qty 16

0

54

Tecumseh 632314

* Check Valve Screen

$

$

Not available

58

Tecumseh 632287

* Screen Retaining Ring

$

$

Not available

60

Tecumseh 632375

Repair Kit (Incl. items marked PK in notes) Incl. 1 each of 632287, 63229 5, 632297, 632298, 632299, 632300A, 6 32301, 632303, 632304, 632307, 632311 , 632312, 632314, 632315A, 632316, 63 2318, 632320A, 632374, 632476, 2 of 6 50506

$51.99

$

Usually ships in 3-12 days

0

62

Tecumseh 632476

* Pump Diaphragm (Included in 60 & 70)

$10.99

$

Usually ships in 3-12 days

0

63

Tecumseh 632301

* Pump Gasket (Included in 60 & 70)

$3.99

$

Usually ships in 3-12 days

0

64

Tecumseh 632290

Pump Cover

$17.99

$

In Stock, only 2 left!

0

65

Tecumseh 632305

Pump Cover Screw

$2.99

$

In Stock, only 1 left!

0

66

Tecumseh 632299

* Choke Friction Ball

$

$

Not available

70

Tecumseh 632320A

* Diaphragm/Gasket Set Incl. 50, 51, 6 2 & 63

$27.99

$

Usually ships in 3-12 days

0
