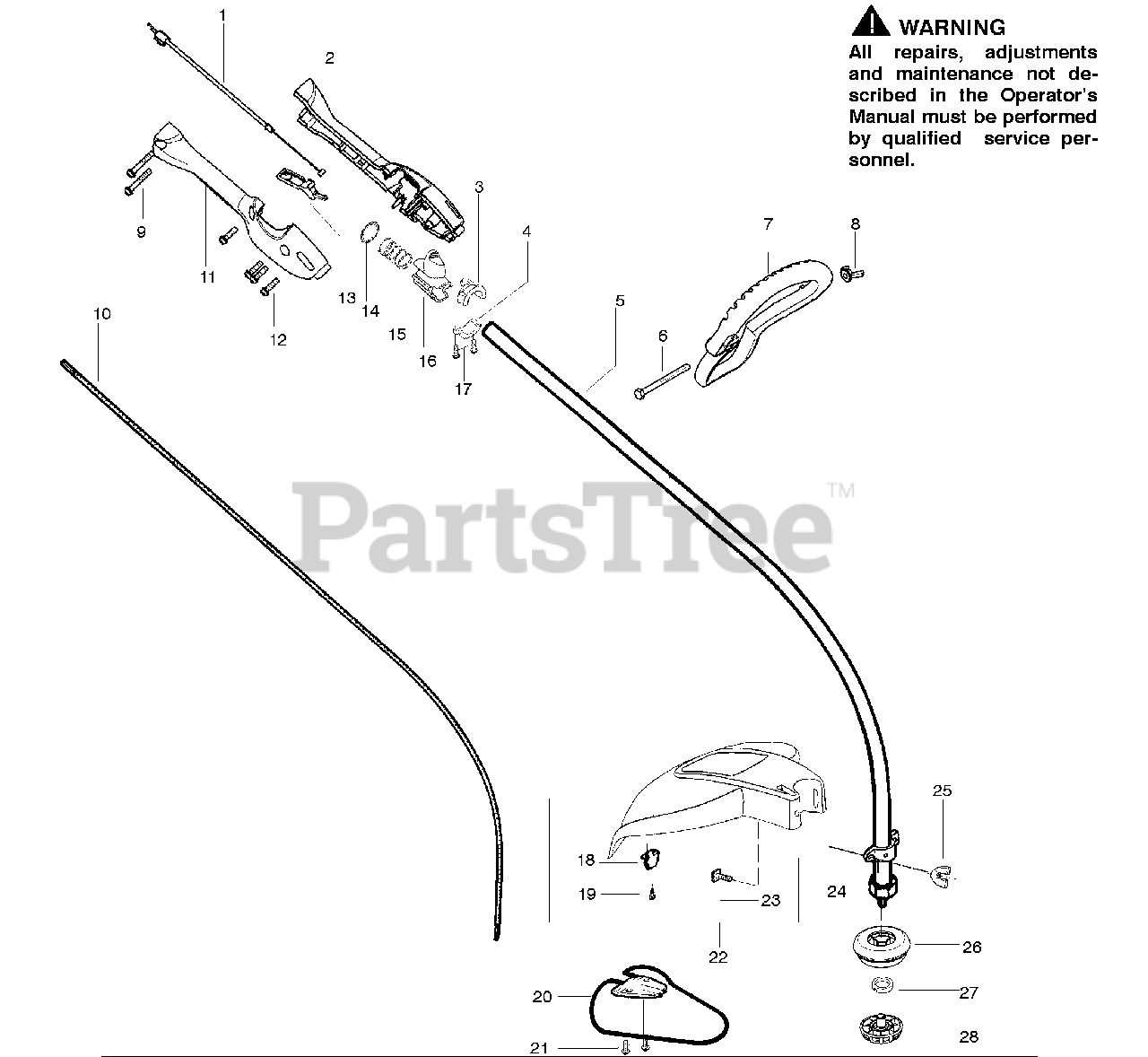

TE 475 - Poulan String Trimmer (2009-03) Handle & Controls Parts Diagram

String Trimmer

Handle & Controls Parts Diagram

  • Title
1

Electrolux/AYP 530057785

Assy-Throttle Cable

$

$

Not available

2

Electrolux/AYP 530058747

Throttle Hsg. (Left)

$

$

Not available

3

Electrolux/AYP 530057562

Locator- left

$

$

Not available

4

Electrolux/AYP 530057563

Locator- right

$

$

Not available

5

Electrolux/AYP 530071779

Assy-Drive Shaft Hsg.

Note: (incl. 3,4,15-17,24)

$

$

Not available

6

$

$

Not available

7

Electrolux/AYP 530058752

Handle-Assist

$9.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 530016152

Wingnut-Handle
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

$6.49

$

In Stock, only 1 left!

0

10

Electrolux/AYP 530095939

Shaft- Flex
(Superseded to 545007502)

$15.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 530058748

Throttle Hsg. (Right)

$

$

Not available

$6.49

$

In Stock, Qty 17

0

$6.49

$

In Stock, Qty 10

0

$

$

Not available

15

Electrolux/AYP 530016407

Spring-Actuator

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

17

Electrolux/AYP 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

18

$4.99

$

In Stock, only 2 left!

0

19

Electrolux/AYP 530015814

Screw-Line Limiter

$6.49

$

In Stock, Qty 17

0

20

Electrolux/AYP 530054459

Assy-Wire Guard

$6.49

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 530071749

Kit-Shield

Note: (Incl.18,19,23,25)

$24.99

$

Usually ships in 3-10 days

0

23

$4.99

$

In Stock, only 1 left!

0

$4.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 952711574

Accy- Spool w/Line

Note: (Incl. 27)

$

$

Not available

27

$6.49

$

In Stock, only 2 left!

0

$9.99

$

In Stock, Qty 6

0

28

Electrolux/AYP 545186833

Operator Manual

Note: Not Shown

$4.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 530058594

Decal-Start Inst.

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 530058597

Decal-Choke

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 545144405

Decal-Shaft Warning

Note: Not Shown

$

$

Not available
