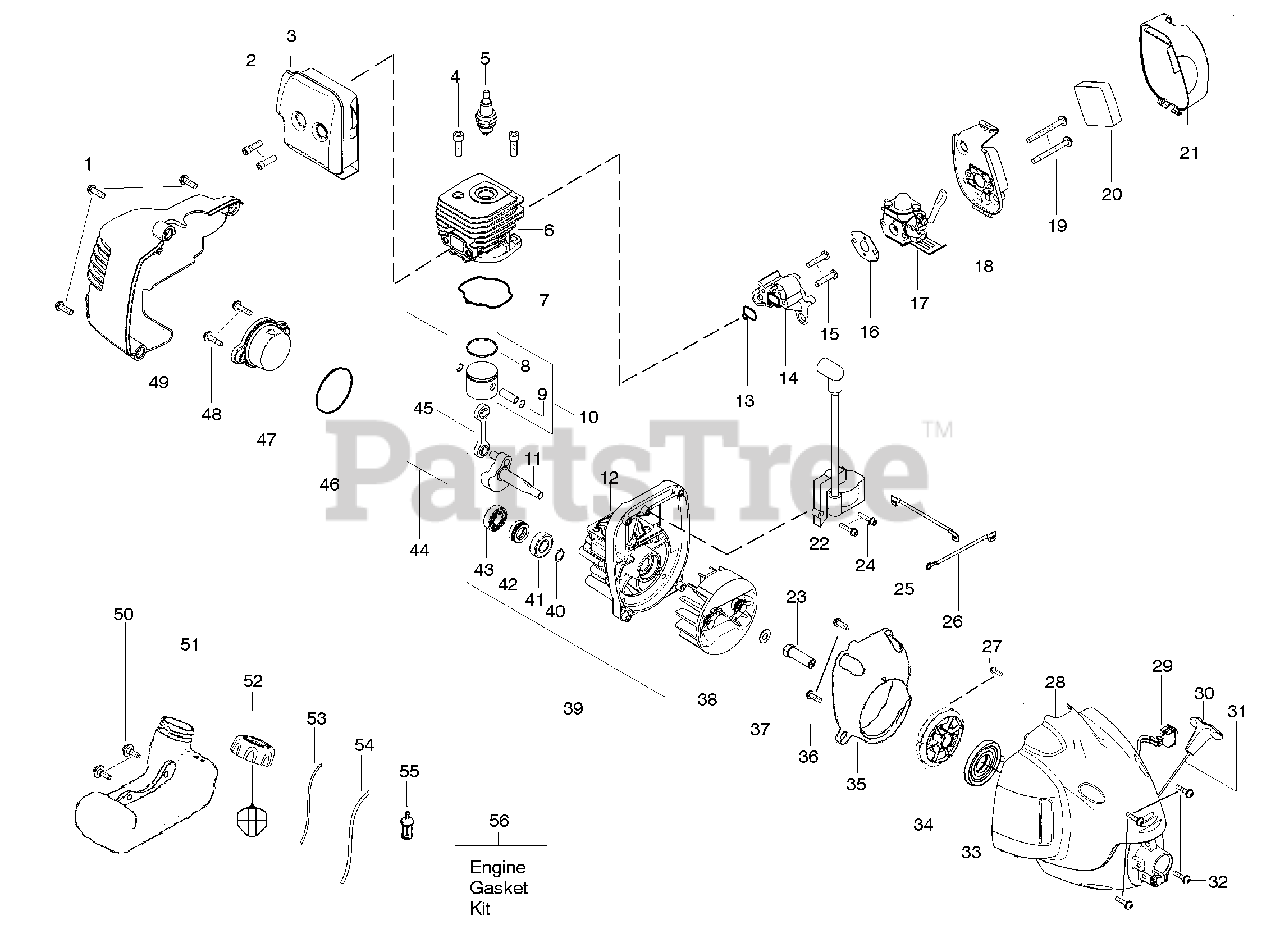

TE 475 (952711797) - Poulan String Trimmer (2009-03) Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

Electrolux/AYP 530015880

Screw

$4.99

$

In Stock, Qty 8

0

2

Electrolux/AYP 530058982

Bolt-Muffler

$4.99

$

In Stock, Qty 7

0

3

Electrolux/AYP 530057538

Assy-Muffler/Shield
(Superseded to 530057863)

Note: (Incl. 2)

$

$

Not available

4

Electrolux/AYP 530015953

Screw-Cylinder

$6.49

$

In Stock, Qty 7

0

5

Electrolux/AYP 952030249

Spark Plug (RCJ 6Y)

$4.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 530012541

Cylinder

$31.99

$

In Stock, only 1 left!

0

7

Electrolux/AYP 530071750

Seal-Cylinder (kit)

$

$

Not available

8

Electrolux/AYP 530055120

Piston Ring
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

9

Electrolux/AYP 530015162

Retainer-Piston Pin

$6.49

$

In Stock, only 1 left!

0

10

Electrolux/AYP 530071833

Kit - Piston

Note: (Incl. 8, 9)

$37.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 530012555

Assy-Crankshaft

$

$

Not available

12

Electrolux/AYP 530012584

Assy-Crankcase
(Superseded to 530012582)

Note: (Incl. 41-43)

$37.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 530071750

Seal-Cyl/Carb.(kit)

$

$

Not available

14

Electrolux/AYP 530057547

Adapter-Carb.

$10.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 530016309

Screw

$5.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 530071750

Gasket-Carb. (kit)

$

$

Not available

17

Electrolux/AYP 530071752

Kit-Carb. Zama (C1U-W18)
(Superseded to 530071822)

$43.99

$

In Stock, only 1 left!

0

17

Electrolux/AYP 545081808

Kit-Carb. Walbro ( WT-669)
(Superseded to 530071822)

Note: (Note: Repair kits are not available for this carburetor)

$43.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 530057544

Air Box

$

$

Not available

19

Electrolux/AYP 530016429

Screw

$6.49

$

In Stock, Qty 6

0

20

Electrolux/AYP 530036575

Foam-Air Filter

$5.99

$

In Stock, only 2 left!

0

21

Electrolux/AYP 530058740

Cover-Air Box

$

$

Not available

22

Electrolux/AYP 530039234

Ignition Module
(Superseded to 501092801)

$24.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 530027953

Coupling-Drive

$

$

Not available

24

Electrolux/AYP 530016357

Screw

$6.49

$

In Stock, only 4 left!

0

25

Electrolux/AYP 530014663

Assy-Leadwire

$9.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 530014662

Assy-Ground Wire

$7.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 530016391

Screw

$2.23

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 530071735

Assy.-Fan Hsg

$19.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 530071356

Kit-Switch

$8.99

$

In Stock, only 1 left!

0

30

Electrolux/AYP 530058742

Handle-Starter

$

$

Not available

31

Electrolux/AYP 530071798

Kit - Rope

$

$

Not available

32

Electrolux/AYP 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

33

Electrolux/AYP 530042086

Spring-Starter
(Superseded to 545008011)

$10.99

$

In Stock, Qty 7

0

34

Electrolux/AYP 530071797

Kit-Starter Pulley
(Superseded to 545081852)

$13.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 530057548

Baffle
(Superseded to 545080601)

$9.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 530015880

Screw

$4.99

$

In Stock, Qty 8

0

37

Electrolux/AYP 530015828

Washer-Flat

$4.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 530054115

Assy-Flywheel
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

39

Electrolux/AYP 530071751

Assy-C'case & C'shaft

Note: (Incl. 11,12,40)

$

$

Not available

40

Electrolux/AYP 530015941

Retain. Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 530055728

Outer Bearing

$9.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 530019264

Seal

$7.49

$

In Stock, only 1 left!

0

43

Electrolux/AYP 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 530071785

Kit-Piston/Rod

Note: (Incl. 10,45)

$47.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 530069945

Assy-Connecting Rod
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 530071750

O-Ring-C'case (kit)

$

$

Not available

47

Electrolux/AYP 530058738

Assy-Plug
(Superseded to 530057954)

Note: (incl.46)

$5.99

$

In Stock, only 1 left!

0

48

Electrolux/AYP 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

49

Electrolux/AYP 530058737

Shroud-Rear

$

$

Not available

50

Electrolux/AYP 530016431

Retainer-Tank

$

$

Not available

51

Electrolux/AYP 545103702

Assy-Fuel Tank

Note: (incl. filter, lines & fuel cap)

$24.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 530058743

Assy-Fuel Cap

$9.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 530069247

Kit-Fuel Line (Small)

$7.99

$

In Stock, Qty 20+

0

54

Electrolux/AYP 530069216

Kit-Fuel Line (Large)

$11.99

$

In Stock, Qty 20+

0

55

Electrolux/AYP 530095646

Assy-Fuel Pickup

$6.99

$

In Stock, Qty 20+

0

56

Electrolux/AYP 530071750

Kit-Engine Gasket

Note: (Incl. 7,13,16,46)

$

$

Not available

56

Electrolux/AYP 530057827

Choke Lever - Zama

Note: Not Shown

$9.99

$

In Stock, only 3 left!

0

56

Electrolux/AYP 530058662

Choke Lever - Walbro

Note: Not Shown

$6.49

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 530058709

Bulb-Purge

Note: Not Shown

$7.99

$

Usually ships in 3-10 days

0
