TE 400 LE - Weed Eater String Trimmer, Type 4 Engine Type 4 Parts Diagram

String Trimmer, Type 4

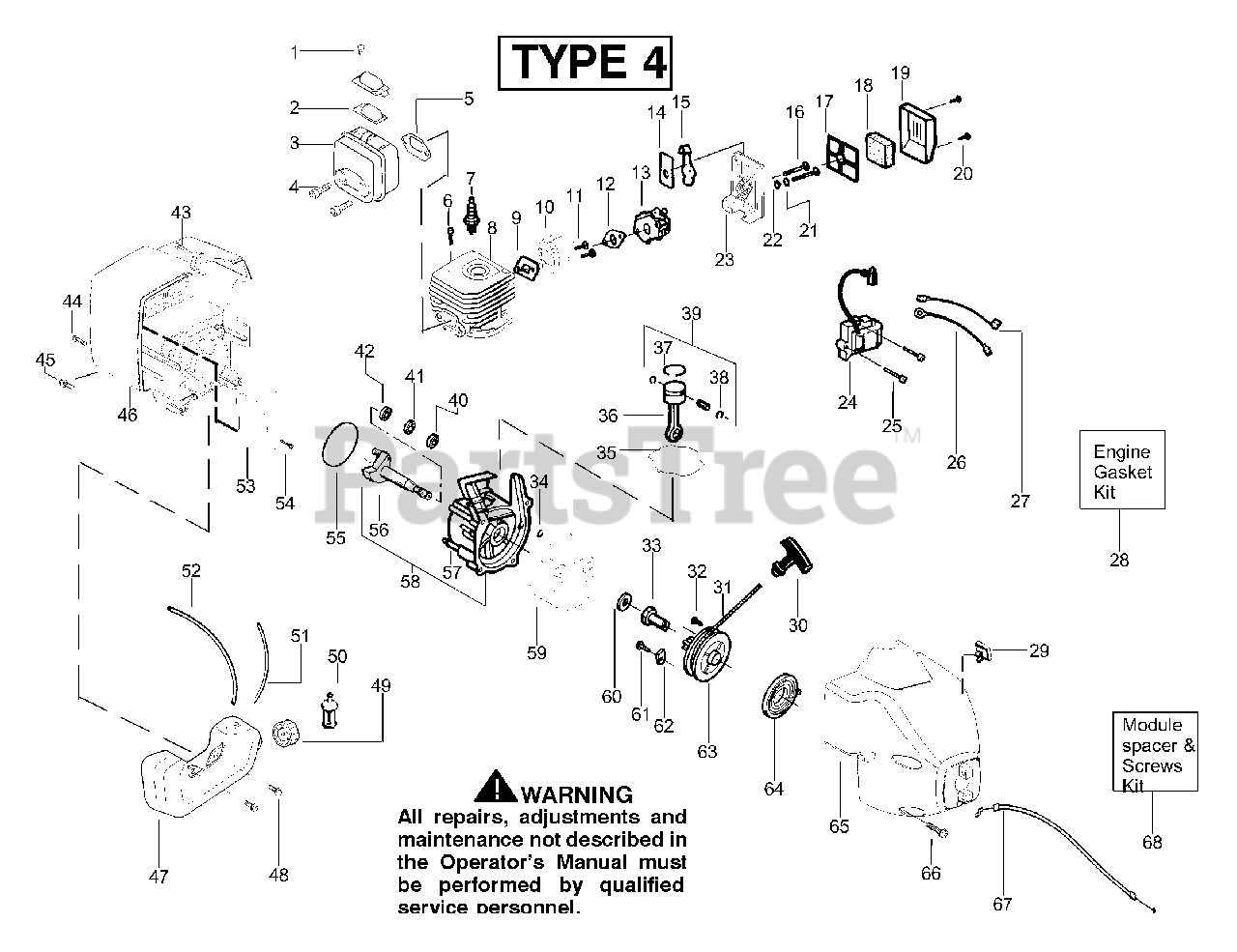

Engine Type 4 Parts Diagram

  • Title

1

Poulan 530015241

Screw-screen

$3.99

$

Usually ships in 3-10 days

0

2

Poulan 530071544

Kit-Spark Arrestor

$

$

Not available

3

Poulan 530071672

Kit-Muffler

Note: (incl.1,2,4,5)

$

$

Not available

4

Poulan 530016338

Bolt-Muffler

$3.99

$

In Stock, only 4 left!

0

5

Poulan 530071363

Gasket-Muffler (kit)

$

$

Not available

6

Poulan 530015953

Screw-Cylinder

$6.49

$

In Stock, Qty 7

0

7

Poulan 952030249

Spark Plug (RCJ-6Y)

$4.49

$

In Stock, Qty 20+

0

8

Poulan 530071668

Kit-Cylinder

$

$

Not available

9

Poulan 530071363

Gasket-Cyl/Carb.(kit)

$

$

Not available

10

Poulan 530057635

Carb. Adapter

$

$

Not available

11

Poulan 530016309

Screw-Carb Adptr.

$5.99

$

Usually ships in 3-10 days

0

12

Poulan 530071363

Gasket-Carb.(kit)

$

$

Not available

13

Poulan 530071628

Kit-Carb. Ass'y.

Note: (C1U-W10B)

$48.99

$

Usually ships in 3-10 days

0

14

Poulan 530038747

Choke Plate

$3.99

$

In Stock, only 3 left!

0

15

Poulan 530035499

Choke Shutter

$

$

Not available

16

Poulan 530016393

Screw-Carburetor

$

$

Not available

17

Poulan 530036569

Filter Support Plate

$

$

Not available

18

Poulan 530036575

Air FIlter Foam

$5.99

$

In Stock, only 2 left!

0

19

Poulan 530054414

Air Filter Cover

$6.49

$

In Stock, only 1 left!

0

20

Poulan 530015892

Screw-Air Box

$6.49

$

In Stock, Qty 20+

0

21

Poulan 530015852

Choke Spacer

$3.49

$

In Stock, only 1 left!

0

22

Poulan 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

23

Poulan 530052431

Air Box

$

$

Not available

24

Poulan 530039211

Ignition Module
(Superseded to 501092801)

$24.99

$

In Stock, only 1 left!

0

25

Poulan 530016357

Screw-Ignit. Module

$6.49

$

In Stock, only 4 left!

0

26

Poulan 530054448

Assy-Ground Wire

$

$

Not available

27

Poulan 530054449

Assy-Lead Wire

$

$

Not available

28

Poulan 530071363

Kit-Engine Gasket

Note: (Incl. 5,9,12,35,55)

$

$

Not available

29

Poulan 530069572

Kit-Switch-Off/On

$9.49

$

In Stock, only 3 left!

0

30

Poulan 530027569

Handle-Starter

$6.49

$

Usually ships in 3-10 days

0

31

Poulan 530071325

Kit-Rope

$

$

Not available

32

Poulan 530016326

Screw

$

$

Not available

33

Poulan 530027953

Coupling-Drive

$

$

Not available

34

Poulan 530015941

Ret. Ring/C'shaft

$4.99

$

Usually ships in 3-10 days

0

35

Poulan 530071363

Seal-Cylinder(kit)

$

$

Not available

36

Poulan 530069945

Assy-Connecting Rod
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

37

Poulan 530055120

Ring-Piston
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

38

Poulan 530015162

Retainer-Piston Pin

$6.49

$

In Stock, only 1 left!

0

39

Poulan 530071357

Kit-Piston
(Superseded to 530071833)

Note: (Incls. 37,38 & Pin)

$37.99

$

In Stock, only 1 left!

0

40

Poulan 530055728

Bearing-Outer

$9.99

$

Usually ships in 3-10 days

0

41

Poulan 530071615

Seal-C'case

$7.49

$

Usually ships in 3-10 days

0

42

Poulan 530032125

Bearing-Inner
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

43

Poulan 530016349

Screw-Shd/Fan Hsg

$6.49

$

In Stock, only 2 left!

0

44

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

45

Poulan 530016349

Screw

$6.49

$

In Stock, only 2 left!

0

46

Poulan 530056710

Rear Shroud

$17.99

$

Usually ships in 3-10 days

0

47

Poulan 530049296

Assy-Fuel Tank
(Superseded to 545103802)

Note: (incl. cap,lines,filter)

$18.99

$

Usually ships in 3-10 days

0

48

Poulan 530016379

Retainer-Tank

$4.99

$

Usually ships in 3-10 days

0

49

Poulan 530014347

Assy-Fuel Cap

$9.49

$

In Stock, Qty 15

0

50

Poulan 530095646

Assy-Fuel Pickup

$6.99

$

In Stock, Qty 19

0

51

Poulan 530069247

Fuel Line (Small)

$7.99

$

In Stock, Qty 20+

0

52

Poulan 530069216

Fuel Line (Large)

$11.99

$

In Stock, Qty 20+

0

53

Poulan 530055351

Shield-Heat

$3.99

$

Usually ships in 3-10 days

0

54

Poulan 530015805

Screw-Heat Shield
(Superseded to 530015886)

$6.49

$

In Stock, only 3 left!

0

55

Poulan 530071363

O-ring-C'case(kit)

$

$

Not available

56

Poulan 530012413

Assy-Crankshaft

$18.99

$

Usually ships in 3-10 days

0

57

Poulan 530012510

Assy-Crankcase

Note: (Incl. 40-42)

$

$

Not available

58

Poulan 530071670

Assy-c'case/c'shaft

Note: (Incl. 34,56,57)

$46.99

$

Usually ships in 3-10 days

0

59

Poulan 530069886

Assy-Flywheel
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

60

Poulan 530015828

Washer-Flat

$4.99

$

Usually ships in 3-10 days

0

61

Poulan 530015775

Screw-Pulley

$6.49

$

In Stock, only 2 left!

0

62

Poulan 530053985

Retainer-Pulley

$1.49

$

In Stock, only 1 left!

0

63

Poulan 530071324

Kit-Starter Pulley

Note: (Incl. 32)

$9.99

$

Usually ships in 3-10 days

0

64

Poulan 530042086

Spring-Starter
(Superseded to 545008011)

$10.99

$

In Stock, Qty 7

0

65

Poulan 530056716

Assy.-Fan Hsg.

$21.99

$

Usually ships in 3-10 days

0

66

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

67

Poulan 530055546

Assy-Throttle Cable

$

$

Not available

68

Poulan 530071731

Kit-Module Spacer & Screws

$7.49

$

In Stock, only 1 left!

0
