TE 400 CXL - Poulan String Trimmer, Type 2 (2007-07) Engine - Type 2 Parts Diagram

String Trimmer, Type 2

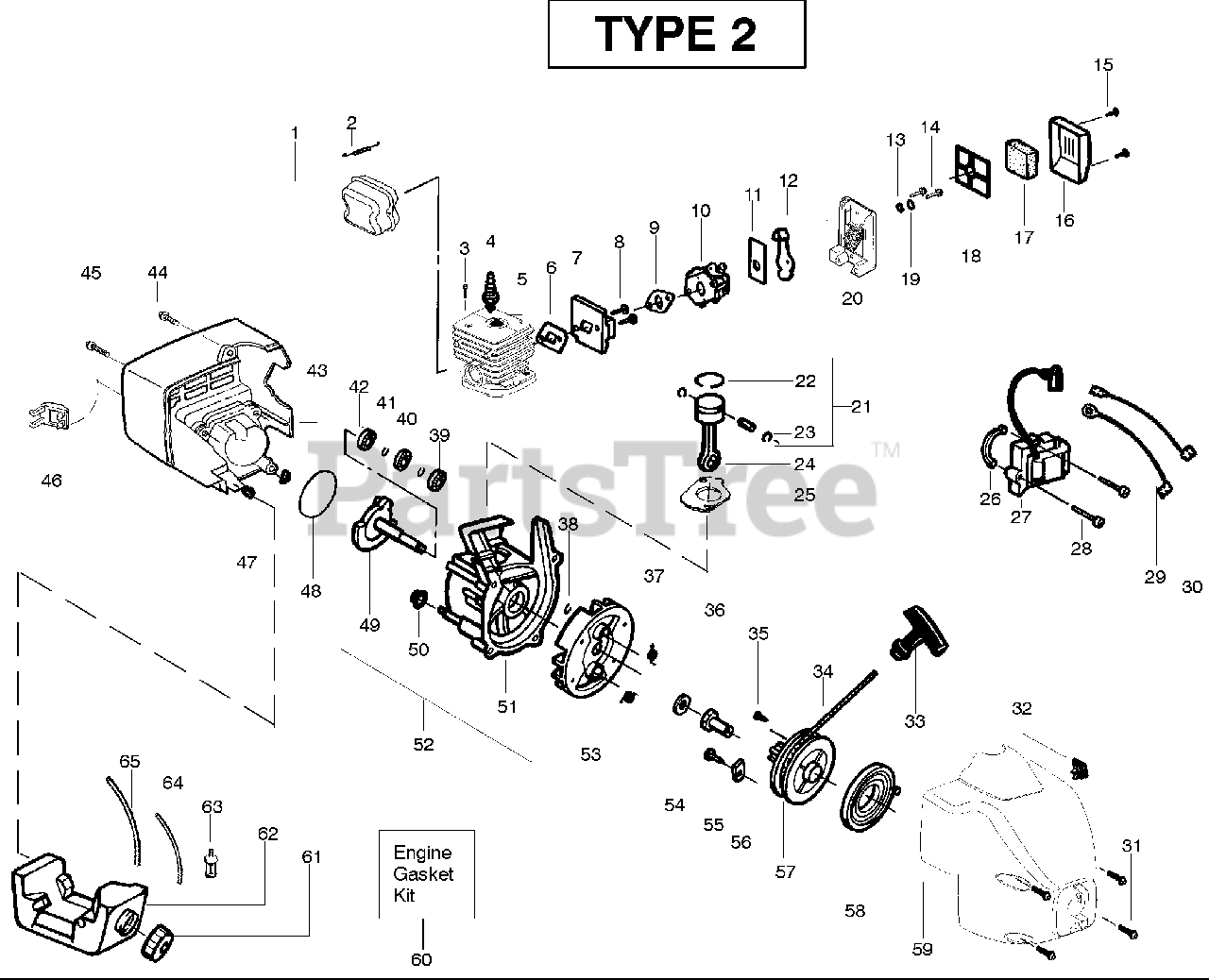

Engine - Type 2 Parts Diagram

  • Title

1

Electrolux/AYP 530071396

Kit – Muffler

Note: (Incl. 2 &spark arrestor screen)

$

$

Not available

2

Electrolux/AYP 530042088

Muffler Spring

$3.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 530015953

Screw-Cylinder

$6.49

$

In Stock, Qty 7

0

4

Electrolux/AYP 952030249

Spark Plug (RCJ 6Y)

$4.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 530071359

Kit - Cylinder
(Superseded to 582144301)

$

$

Not available

6

Electrolux/AYP 530071363

Gasket-Cyl/Carb.(kit)

$

$

Not available

7

Electrolux/AYP 530055535

Adaptor-carb.

$

$

Not available

8

Electrolux/AYP 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

9

Electrolux/AYP 530071363

Gasket-Carb.(kit)

$

$

Not available

10

Electrolux/AYP 530069754

Kit-Carb. (WA226)
(Superseded to 530071635)

$68.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 530038747

Plate-Choke Mounting

Note: (Incl. Limiter Cap)

$3.99

$

In Stock, only 3 left!

0

12

Electrolux/AYP 530035499

Lever-Choke

$

$

Not available

13

Electrolux/AYP 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

14

Electrolux/AYP 530016353

Screw

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 530015957

Screw

$4.99

$

In Stock, Qty 6

0

16

Electrolux/AYP 530036568

Cover-Air Box

$

$

Not available

17

Electrolux/AYP 530036575

Foam-Air Filter

$5.99

$

In Stock, only 2 left!

0

18

Electrolux/AYP 530036569

Plate-Air Filter Support

$

$

Not available

19

Electrolux/AYP 530015852

Spacer-Choke

$3.49

$

In Stock, only 1 left!

0

20

Electrolux/AYP 530052431

Box-Air

$

$

Not available

21

Electrolux/AYP 530071357

Kit - Piston
(Superseded to 530071833)

Note: (Incl. 22, 23)

$37.99

$

In Stock, only 1 left!

0

22

Electrolux/AYP 530055120

Piston Ring
(Superseded to 545154001)

$4.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 530015162

Retainer-Piston Pin

$6.49

$

In Stock, only 2 left!

0

24

Electrolux/AYP 530069945

Assy-Connecting Rod
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 530071363

Gasket-Cylinder(kit)

$

$

Not available

26

Electrolux/AYP 530036145

Spacer-Module

$3.99

$

In Stock, only 3 left!

0

27

Electrolux/AYP 530039211

Ignition Module
(Superseded to 501092801)

$24.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 530015954

Screw

$4.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 530054448

Assy-Ground Wire

$

$

Not available

30

Electrolux/AYP 530054449

Assy-Leadwire

$

$

Not available

31

Electrolux/AYP 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

32

Electrolux/AYP 530069572

Kit-Switch

$9.49

$

In Stock, only 3 left!

0

33

Electrolux/AYP 530027569

Handle-Starter

$6.49

$

In Stock, only 2 left!

0

34

Electrolux/AYP 530071325

Kit - Rope

$6.49

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 530016326

Screw

$

$

Not available

36

Electrolux/AYP 530027953

Coupling-Drive

$

$

Not available

37

Electrolux/AYP 530023817

Spring-Starter Dog

$6.49

$

In Stock, Qty 5

0

38

Electrolux/AYP 530015941

Retain. Ring-C'shaft

$4.99

$

In Stock, only 1 left!

0

39

Electrolux/AYP 530032124

Bearing-Outer

$7.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 530019179

Seal-C'case

$

$

Not available

41

Electrolux/AYP 530015945

Retainer Ring-C'case

$3.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 530032125

Bearing-Inner
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 530049233

Shroud
(Superseded to 530056943)

$

$

Not available

44

Electrolux/AYP 530015934

Screw

$4.99

$

In Stock, only 1 left!

0

45

Electrolux/AYP 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

46

Electrolux/AYP 530054536

Guard-Muffler

$

$

Not available

47

Electrolux/AYP 530036793

Isolator-Shroud

$

$

Not available

48

Electrolux/AYP 530071363

O-Ring-C'case(kit)

$

$

Not available

49

Electrolux/AYP 530012413

Assy-Crankshaft

$18.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 530036792

Isolator-Crankcase

$7.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 530012414

Assy-Crankcase
(Superseded to 530071627)

Note: (Incl. 39-42)

$

$

Not available

52

Electrolux/AYP 530071337

Assy-C'case & C'shaft

Note: (Incl. 38,49,51)

$

$

Not available

53

Electrolux/AYP 530069886

Assy-Flywheel
(Superseded to 545221701)

$28.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 530015828

Washer-Flat

$4.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

56

Electrolux/AYP 530053985

Retainer-Can

$1.49

$

In Stock, only 1 left!

0

57

Electrolux/AYP 530071324

Kit-Starter Pulley

Note: (Incl. 35)

$9.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 530042086

Spring-Starter
(Superseded to 545008011)

$10.99

$

In Stock, Qty 8

0

59

Electrolux/AYP 530071415

Assy-Fan Housing

$18.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 530071363

Kit-Engine Gasket

Note: (Incl. 6,9,25,48)

$

$

Not available

61

Electrolux/AYP 530014347

Assy-Fuel Cap

$9.49

$

In Stock, Qty 15

0

62

Electrolux/AYP 530049299

Assy-Fuel Tank

Note: (Incl. cap,filter,lines)

$

$

Not available

63

Electrolux/AYP 530095646

Assy-Fuel Pickup

$6.99

$

In Stock, Qty 20+

0

64

Electrolux/AYP 530069247

Kit-Fuel Line

$7.99

$

In Stock, Qty 20+

0

65

Electrolux/AYP 530069216

Kit-Fuel Line

$11.99

$

In Stock, Qty 20+

0
