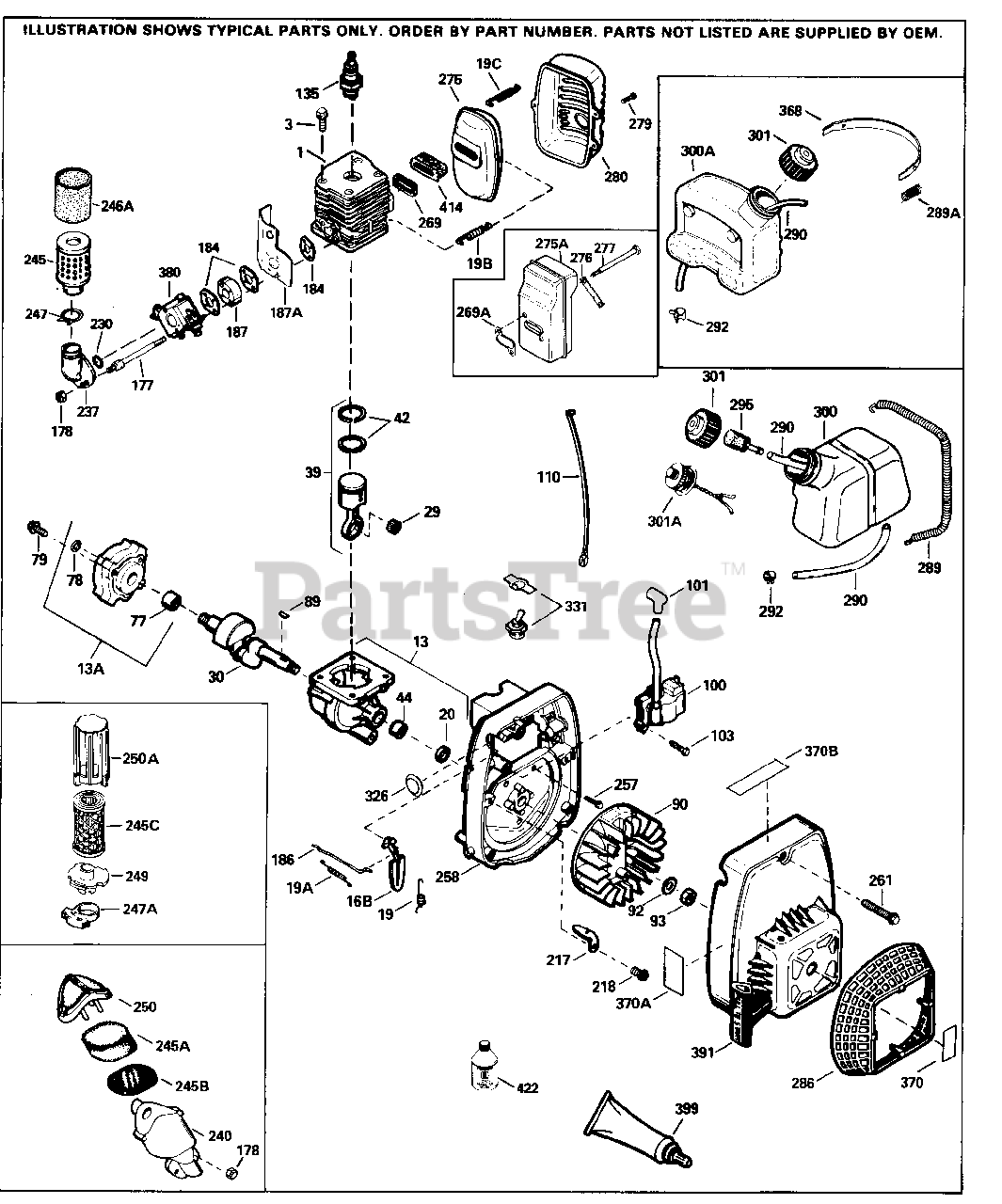

TCH300-3303 - Tecumseh Engine Engine Parts List Parts Diagram

Engine

Engine Parts List Parts Diagram

  • Title

1

Tecumseh 250297

"Cylinder
(Superseded to 250304)

$63.99

$

Usually ships in 3-12 days

0

3

Tecumseh 650888

Screw, T-30, 1/4-20 x 43/64

$1.99

$

In Stock, only 1 left!

0

13

Tecumseh 270288

Crankcase (Incl. 20 & 44)
(Superseded to 270288A)

$51.99

$

Usually ships in 3-12 days

0

13A

Tecumseh 270291

Crankcase Cover (Incl. 77 & 78)

$

$

Not available

16B

Tecumseh 490303

Air Vane

$

$

Not available

19B

Tecumseh 570650

Muffler Spring

$3.99

$

In Stock, only 1 left!

0

19A

Tecumseh 570690

Backlash Spring

$1.99

$

In Stock, Qty 5

0

19

Tecumseh 570664

Governor Spring

$3.99

$

Usually ships in 3-12 days

0

20

Tecumseh 510328

Oil Seal

$10.99

$

Usually ships in 3-12 days

0

29

Tecumseh 530154

Needle Bearing Set (23 needles) NOTE: Bearing 530154 is no longer availabl e. If it is required, the engine must be short blocked. See Engine and Sho rt Block Replacement List.

$

$

Not available

30

Tecumseh 290564

Crankshaft NOTE: Crankshaft 290564 is no longer available. If it is requir ed, the engine must be short blocked. See Engine and Short Block Replaceme nt List.

$

$

Currently unavailable

39

Tecumseh 310284

Piston & Rod NOTE: Piston and rod 310 284 is no longer available. If it is required, the engine must be short bl ocked. See Engine and Short Block Rep lacement List.

$

$

Currently unavailable

42

Tecumseh 310275

Piston Ring Set
(Superseded to 310292)

$12.99

$

In Stock, only 1 left!

0

44

Tecumseh 530163

Cartridge Bearing

$17.99

$

Usually ships in 3-12 days

0

77

Tecumseh 530162

Cartridge Bearing

$16.99

$

Usually ships in 3-12 days

0

78

Tecumseh 510329

Oil Seal

$10.99

$

In Stock, only 3 left!

0

79

Tecumseh 650844

Screw, 1/4-20 x 3/4

$1.99

$

Usually ships in 3-12 days

0

89

Tecumseh 611054

Flywheel Key

$1.99

$

In Stock, only 4 left!

0

90

Tecumseh 611055

Flywheel

$68.99

$

In Stock, only 1 left!

0

92

Tecumseh 650848

Belleville Washer

$1.99

$

Usually ships in 3-12 days

0

93

Tecumseh 650849

Flywheel Nut, 3/8-24

$1.99

$

In Stock, only 2 left!

0

100

Tecumseh 611056

Solid State (Incl. 101)

$74.99

$

In Stock, only 1 left!

0

101

Tecumseh 610118

Spark Plug Cover

$6.49

$

In Stock, only 2 left!

0

103

Tecumseh 650814

Screw, T-15, 10-24 x 1
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

110

Tecumseh 611127

Ground Wire

$

$

Not available

135

Tecumseh 611100

Spark Plug (RCJ-6Y)

$4.49

$

In Stock, Qty 20+

0

177

Tecumseh 650858

Air Cleaner Stud

$1.99

$

In Stock, Qty 11

0

178

Tecumseh 650580

Lock Nut, 10-24

$1.49

$

In Stock, Qty 5

0

184

Tecumseh 510327B

Carburetor Gasket

$5.49

$

In Stock, Qty 12

0

186

Tecumseh 490321

Governor Link

$1.99

$

In Stock, only 1 left!

0

187

Tecumseh 570648

Carburetor Spacer
(Superseded to 570648A)

$14.99

$

In Stock, Qty 5

0

187A

Tecumseh 570666

Carburetor Baffle
(Superseded to 570666A)

$5.49

$

Usually ships in 3-12 days

0

217

Tecumseh 570667A

Speed Adjusting Lever

$1.99

$

Usually ships in 3-12 days

0

218

Tecumseh 650847

Screw, 8-32 x 1/2

$1.99

$

In Stock, only 2 left!

0

230

Tecumseh 570649

Air Cleaner "O" Ring
(Superseded to 570649A)

$1.99

$

In Stock, Qty 10

0

240

Tecumseh 450238

Air Cleaner Body

$5.49

$

Usually ships in 3-12 days

0

245A

Tecumseh 450240

Air Filter

$3.99

$

Usually ships in 3-12 days

0

245B

Tecumseh 450239

Air Filter

$1.99

$

In Stock, only 2 left!

0

250

Tecumseh 450241

Air Cleaner Cover

$

$

Not available

257

Tecumseh 650867

Screw, 10-24 x 1/2

$1.99

$

In Stock, only 4 left!

0

258

Tecumseh 350433

Blower Housing Base

$

$

Not available

261

Tecumseh 650850

Screw, 8-32 x 1-9/16

$1.99

$

Usually ships in 3-12 days

0

269

Tecumseh 510336A

Exhaust Gasket

$1.99

$

Usually ships in 3-12 days

0

275

Tecumseh 390304

Muffler

$

$

Not available

286

Tecumseh 590570

Starter Screen

$4.99

$

In Stock, only 1 left!

0

289A

Tecumseh 570694

Fuel Tank Strap Spring

$3.99

$

In Stock, only 1 left!

0

290

Tecumseh 410246A

Fuel Line (11" long)

$9.49

$

In Stock, only 2 left!

0

292

Tecumseh 410253

Fuel Line Clamp

$1.99

$

In Stock, Qty 5

0

295

Tecumseh 410263

Fuel Fitting & Filter Assy.

$

$

Not available

300A

Tecumseh 410268

Fuel Tank (Incl. 290 & 295)
(Superseded to 410267A)

$

$

Not available

301

Tecumseh 410238

Fuel Cap

$12.99

$

Usually ships in 3-12 days

0

368

Tecumseh 410254A

Fuel Tank Strap (Incl. 289A)

$9.49

$

Usually ships in 3-12 days

0

370A

Tecumseh 550237

Instruction Decal

$

$

Not available

370

Tecumseh 550223

Name Decal

$

$

Not available

380

Tecumseh 632508

Carburetor (Incl. 184) (Refer to Divi sion 5, Section A, page A10-4 or Fich e 24, Grid F-9 for breakdown)

$

$

Not available

391

Tecumseh 590614A

Rewind Starter & Housing Assy. Refer to Division 5, Section C, page 33 or Fiche 24, Grid G-1 for breakdown

$

$

Not available

399

Tecumseh 510334

Gasket Eliminator

$12.99

$

Usually ships in 3-12 days

0

422

Tecumseh 730227D

2-Cycle Oil with Fuel Stabilizer - 8 oz.

$3.99

$

In Stock, Qty 5

0
