TC300-3112 - Tecumseh Engine Engine Parts List Parts Diagram

Engine

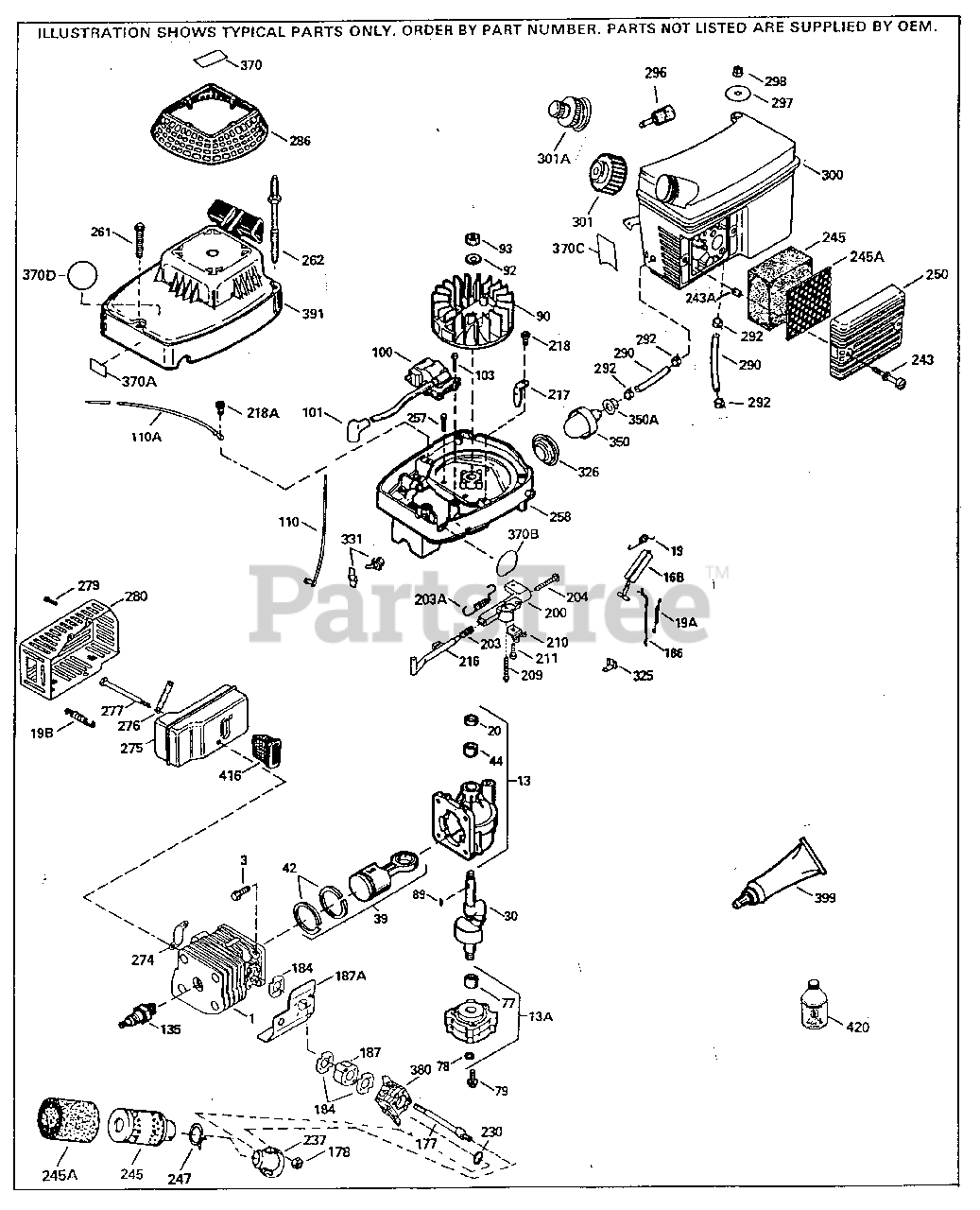

Engine Parts List Parts Diagram

  • Title

1

Tecumseh 250301A

"Cylinder
(Superseded to 250303)

$

$

Not available

3

Tecumseh 650888

Screw, Torx T-30, 1/4-20 x 43/64"

$1.99

$

In Stock, only 1 left!

0

13

Tecumseh 270288A

Crankcase Ass'y. (Incl. 20 & 44)

$51.99

$

Usually ships in 3-12 days

0

13A

Tecumseh 270294

Crankcase Cover Ass'y. Incl. 77 & 78

$

$

Currently unavailable

16B

Tecumseh 490303

Air Vane

$

$

Not available

19B

Tecumseh 570654

Heat Shield Spring

$5.49

$

In Stock, only 1 left!

0

19A

Tecumseh 570690

Backlash Spring

$1.99

$

In Stock, Qty 5

0

19

Tecumseh 570706

Governor Spring

$

$

Not available

20

Tecumseh 510328

Oil Seal

$10.99

$

Usually ships in 3-12 days

0

30

Tecumseh 290611

Crankshaft
(Superseded to 290611A)

$

$

Not available

39

Tecumseh 310285

Piston & Rod Ass'y. (Incl. 42)
(Superseded to 310293)

$81.99

$

Usually ships in 3-12 days

0

42

Tecumseh 310275

Ring Set
(Superseded to 310292)

$12.99

$

In Stock, only 1 left!

0

44

Tecumseh 530163

Cartridge Bearing

$17.99

$

Usually ships in 3-12 days

0

77

Tecumseh 530105

Cartridge Bearing

$11.99

$

Usually ships in 3-12 days

0

78

Tecumseh 510345

Oil Seal

$5.49

$

Usually ships in 3-12 days

0

79

Tecumseh 650844

Screw, 1/4-20 x 3/4"

$1.99

$

Usually ships in 3-12 days

0

89

Tecumseh 611054

Flywheel Key

$1.99

$

In Stock, only 4 left!

0

90

Tecumseh 611180

Flywheel (Reverse fin)

$81.99

$

Usually ships in 3-12 days

0

92

Tecumseh 650848

Belleville Washer

$1.99

$

Usually ships in 3-12 days

0

93

Tecumseh 650849

Flywheel Nut, 3/8-24

$1.99

$

In Stock, only 2 left!

0

100

Tecumseh 611056

Solid State Ignition (Incl. 101)

$74.99

$

In Stock, only 1 left!

0

101

Tecumseh 610118

Spark Plug Cover

$6.49

$

In Stock, only 2 left!

0

103

Tecumseh 650814

Screw, Torx T-15, 10-24 x 1"
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

110

Tecumseh 611128

Ground Wire

$

$

Currently unavailable

110A

Tecumseh 611126

Ground Wire

$

$

Not available

135

Tecumseh 611100

Resistor Spark Plug (RCJ6Y)

$4.49

$

In Stock, Qty 20+

0

177

Tecumseh 650858

Carburetor Mounting Stud

$1.99

$

In Stock, Qty 11

0

178

Tecumseh 650580

Lock Nut, 10-24

$1.49

$

In Stock, Qty 5

0

184

Tecumseh 510327B

Carburetor Gasket

$5.49

$

In Stock, Qty 12

0

186

Tecumseh 490321

Governor Link

$1.99

$

In Stock, only 1 left!

0

187

Tecumseh 570648A

Spacer

$14.99

$

In Stock, Qty 5

0

187A

Tecumseh 570698A

Air Baffle

$7.49

$

In Stock, only 4 left!

0

200

Tecumseh 570700

Speed Control Body

$5.49

$

In Stock, Qty 10

0

203A

Tecumseh 570654

Control Bracket Spring

$5.49

$

In Stock, only 1 left!

0

204

Tecumseh 650952

Screw, 8-32 x 1"
(Superseded to 651042)

$1.99

$

In Stock, Qty 9

0

211

Tecumseh 650837

Screw, 10-32 x 1/4"

$1.99

$

In Stock, only 1 left!

0

216

Tecumseh 570702

R.P.M. Adjusting Lever

$3.99

$

Usually ships in 3-12 days

0

218A

Tecumseh 650847

Screw, 8-32 x 1/2"

$1.99

$

In Stock, only 2 left!

0

230

Tecumseh 570649A

"O" Ring

$1.99

$

In Stock, Qty 10

0

243

Tecumseh 650955

Screw, 10-32 x 29/32"

$3.99

$

In Stock, only 1 left!

0

243A

Tecumseh 650964

Thread Insert

$1.99

$

In Stock, only 2 left!

0

245

Tecumseh 450252

Air Filter (Poly) (also available in Packaged Part #740097 (incl. 450255 & 450257))

$3.99

$

In Stock, only 2 left!

0

250

Tecumseh 450253

Air Cleaner Cover

$10.99

$

In Stock, only 1 left!

0

257

Tecumseh 650867

Screw, 10-24 x 1/2"

$1.99

$

In Stock, only 4 left!

0

258

Tecumseh 350433

Blower Housing Base

$

$

Not available

261

Tecumseh 650850

Screw, 8-32 x 1-9/16"

$1.99

$

Usually ships in 3-12 days

0

262

Tecumseh 650939

Stud

$1.99

$

In Stock, only 1 left!

0

274

Tecumseh 510347

Exhaust Gasket

$3.49

$

In Stock, only 1 left!

0

275

Tecumseh 390329

Muffler (Incl. 274 & 277)

$

$

Currently unavailable

276

Tecumseh 390321

Locking Plate

$3.99

$

Usually ships in 3-12 days

0

277

Tecumseh 650963

Screw, 1/4-20 x 2.469"

$

$

Not available

286

Tecumseh 590570

Starter Screen

$4.99

$

In Stock, only 1 left!

0

290

Tecumseh 410276

Fuel Line
(Superseded to 410246A)

$9.49

$

In Stock, only 2 left!

0

292

Tecumseh 410253

Fuel Line Clamp

$1.99

$

In Stock, Qty 5

0

297

Tecumseh 27261

Washer

$1.99

$

Usually ships in 3-12 days

0

298

Tecumseh 650954

Nut, 8-32

$1.99

$

In Stock, only 4 left!

0

300

Tecumseh 410278

Fuel Tank & Primer Ass'y. Incl. 290, 292, 298, 301, 350, 350A & 370C
(Superseded to 730327)

$144.99

$

Usually ships in 3-12 days

0

301

Tecumseh 410238

Fuel Cap

$12.99

$

Usually ships in 3-12 days

0

325

Tecumseh 570703

Control Spring Clip

$1.99

$

In Stock, only 1 left!

0

326

Tecumseh 570659

Blower Housing Plug

$1.99

$

Usually ships in 3-12 days

0

350

Tecumseh 570704

Primer Ass'y.

$9.99

$

In Stock, only 1 left!

0

350A

Tecumseh 650921

Nut

$1.99

$

In Stock, only 1 left!

0

370C

Tecumseh 550241

Primer Decal

$

$

Not available

370D

Tecumseh 550244

Fuel Mix Decal

$

$

Not available

370B

Tecumseh 550240

Plug Decal

$

$

Not available

380

Tecumseh 632935

Carburetor (Incl. 184) (Refer to Divi sion 5, Section A, page A12-2 or Fich e 24, Grid F-3 for breakdown

$

$

Not available

391

Tecumseh 590614A

Rewind Starter & Housing Ass'y. Refer to Division 5, Section C, page 33 or Fiche 24, Grid G-1 for breakdown

$

$

Not available

399

Tecumseh 510334

Gasket Eliminator (Loctite 515) As re quired

$12.99

$

Usually ships in 3-12 days

0

420

Tecumseh 730227D

2-Cycle Oil with Fuel Stabilizer - 8 oz.

$3.99

$

In Stock, Qty 5

0
