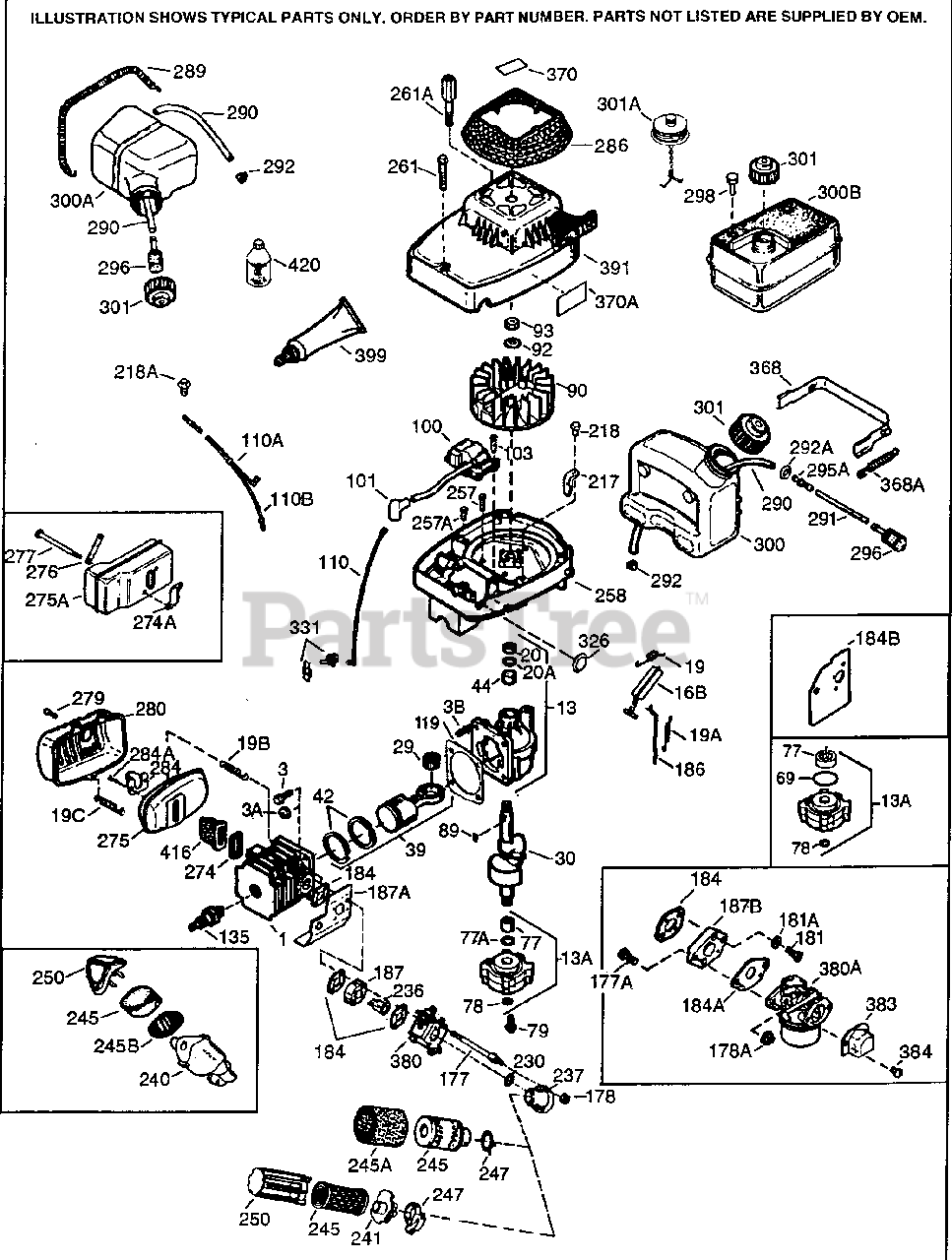

TC200-2012G - Tecumseh Engine Engine Parts List Parts Diagram

Engine

Engine Parts List Parts Diagram

  • Title

1

Tecumseh 250299A

"Cylinder (Incl. 119, 184, 187 & 187A)

$81.99

$

Usually ships in 3-12 days

0

3

Tecumseh 650888

Screw, Torx T-30, 1/4-20 x 43/64"

$1.99

$

In Stock, only 1 left!

0

13

Tecumseh 270288

Crankcase Ass'y. (Incl. 20 & 44)
(Superseded to 270288A)

$51.99

$

Usually ships in 3-12 days

0

13A

Tecumseh 270291

Crankcase Cover Ass'y.(Incl. 77 & 78)

$

$

Not available

16B

Tecumseh 490303

Air Vane

$

$

Not available

19B

Tecumseh 570650

Muffler Spring

$3.99

$

In Stock, only 1 left!

0

19C

Tecumseh 570654

Heat Shield Spring

$5.49

$

In Stock, only 1 left!

0

19A

Tecumseh 570690

Backlash Spring

$1.99

$

In Stock, Qty 5

0

19

Tecumseh 570664

Governor Spring

$3.99

$

Usually ships in 3-12 days

0

20

Tecumseh 510328

Oil Seal

$10.99

$

Usually ships in 3-12 days

0

30

Tecumseh 290620

Crankshaft
(Superseded to 290620A)

$

$

Not available

39

Tecumseh 310286

Piston & Rod Ass'y. (Incl. 42)
(Superseded to 310286A)

$

$

Not available

42

Tecumseh 310271

Ring Set

$

$

Not available

44

Tecumseh 530163

Cartridge Bearing

$17.99

$

Usually ships in 3-12 days

0

77

Tecumseh 530162

Cartridge Bearing

$16.99

$

Usually ships in 3-12 days

0

78

Tecumseh 510329

Oil Seal

$10.99

$

In Stock, only 3 left!

0

79

Tecumseh 650844

Screw, 1/4-20 x 3/4"

$1.99

$

Usually ships in 3-12 days

0

89

Tecumseh 611054

Flywheel Key

$1.99

$

In Stock, only 4 left!

0

90

Tecumseh 611055

Flywheel

$68.99

$

In Stock, only 1 left!

0

92

Tecumseh 650848

Belleville Washer

$1.99

$

Usually ships in 3-12 days

0

93

Tecumseh 650849

Flywheel Nut

$1.99

$

In Stock, only 2 left!

0

100

Tecumseh 611056

Solid State Ignition (Incl. 101)

$74.99

$

In Stock, only 1 left!

0

101

Tecumseh 610118

Spark Plug Cover

$6.49

$

In Stock, only 3 left!

0

103

Tecumseh 650814

Screw, Torx T-15, 10-24 x 1"
(Superseded to 651007)

$1.99

$

In Stock, only 4 left!

0

110

Tecumseh 611166

Ground Wire

$

$

Not available

135

Tecumseh 611049

Resistor Spark Plug (RCJ8Y)

$4.99

$

In Stock, Qty 20+

0

177

Tecumseh 650858

Carburetor Mounting Stud

$1.99

$

In Stock, Qty 11

0

178

Tecumseh 650580

Lock Nut, 10-24

$1.49

$

In Stock, Qty 5

0

184

Tecumseh 510327B

Carburetor Gasket

$5.49

$

In Stock, Qty 12

0

186

Tecumseh 490321

Governor Link

$1.99

$

In Stock, only 1 left!

0

187

Tecumseh 570648A

Spacer

$14.99

$

In Stock, Qty 5

0

187A

Tecumseh 570666A

Air Baffle

$5.49

$

Usually ships in 3-12 days

0

217

Tecumseh 570667A

Control Lever

$1.99

$

Usually ships in 3-12 days

0

218

Tecumseh 650847

Screw, 8-32 x 1/2"

$1.99

$

In Stock, only 2 left!

0

230

Tecumseh 570649

"O" Ring
(Superseded to 570649A)

$1.99

$

In Stock, Qty 11

0

237

Tecumseh 570689

Air Cleaner Adapter

$5.49

$

Usually ships in 3-12 days

0

245

Tecumseh 32972

Air Filter

$13.99

$

Usually ships in 3-12 days

0

247

Tecumseh 33168

Air Cleaner Clamp
(Superseded to 35505)

$1.99

$

In Stock, only 4 left!

0

257

Tecumseh 650867

Screw, 10-24 x 1/2"

$1.99

$

In Stock, only 4 left!

0

258

Tecumseh 350435

Blower Housing Base

$

$

Not available

261

Tecumseh 650850

Screw, 8-32 x 1-9/16"

$1.99

$

Usually ships in 3-12 days

0

274

Tecumseh 510336A

Exhaust Gasket

$1.99

$

Usually ships in 3-12 days

0

275

Tecumseh 390304

Muffler

$

$

Not available

279

Tecumseh 650847

Screw, 8-32 x 1/2"

$1.99

$

In Stock, only 2 left!

0

280

Tecumseh 390299

Heat Shield

$

$

Currently unavailable

286

Tecumseh 590570

Starter Screen

$4.99

$

In Stock, only 1 left!

0

290

Tecumseh 410246A

Fuel Line

$9.49

$

In Stock, only 2 left!

0

291

Tecumseh 410250

Fuel Line

$

$

Not available

292

Tecumseh 410253

Fuel Line Clamp

$1.99

$

In Stock, Qty 5

0

295A

Tecumseh 410251A

Fuel Line Fitting

$10.99

$

Usually ships in 3-12 days

0

296

Tecumseh 410263

Fuel Filter

$

$

Not available

300

Tecumseh 410270

Fuel Tank Incl. 291, 292A, 295A & 296

$

$

Not available

301

Tecumseh 410248

Fuel Cap
(Superseded to 410280)

$7.49

$

In Stock, only 1 left!

0

326

Tecumseh 570659

Blower Housing Plug

$1.99

$

Usually ships in 3-12 days

0

331

Tecumseh 610650B

Toggle Switch

$21.99

$

In Stock, only 1 left!

0

368

Tecumseh 410257

Fuel Tank Strap

$7.49

$

In Stock, only 1 left!

0

368A

Tecumseh 570668

Fuel Tank Strap Spring

$

$

Not available

370

Tecumseh 550237

Instruction Decal

$

$

Not available

380

Tecumseh 632508

Carburetor (Inc. 184)

$

$

Not available

391

Tecumseh 590614A

Rewind Starter & Housing Ass'y.

$

$

Not available

399

Tecumseh 510334

Gasket Eliminator (Loctite 515)

$12.99

$

Usually ships in 3-12 days

0

416

Tecumseh 390301A

Spark Arrestor Kit

$18.99

$

In Stock, only 1 left!

0

420

Tecumseh 730227D

2-Cycle Oil with Fuel Stabilizer - 8 oz.

$3.99

$

In Stock, Qty 5

0
