TC 342 (960510186-00) - Husqvarna 42" Garden Tractor (2018-09) MOWER DECK / CUTTING DECK Parts Diagram

42" Garden Tractor

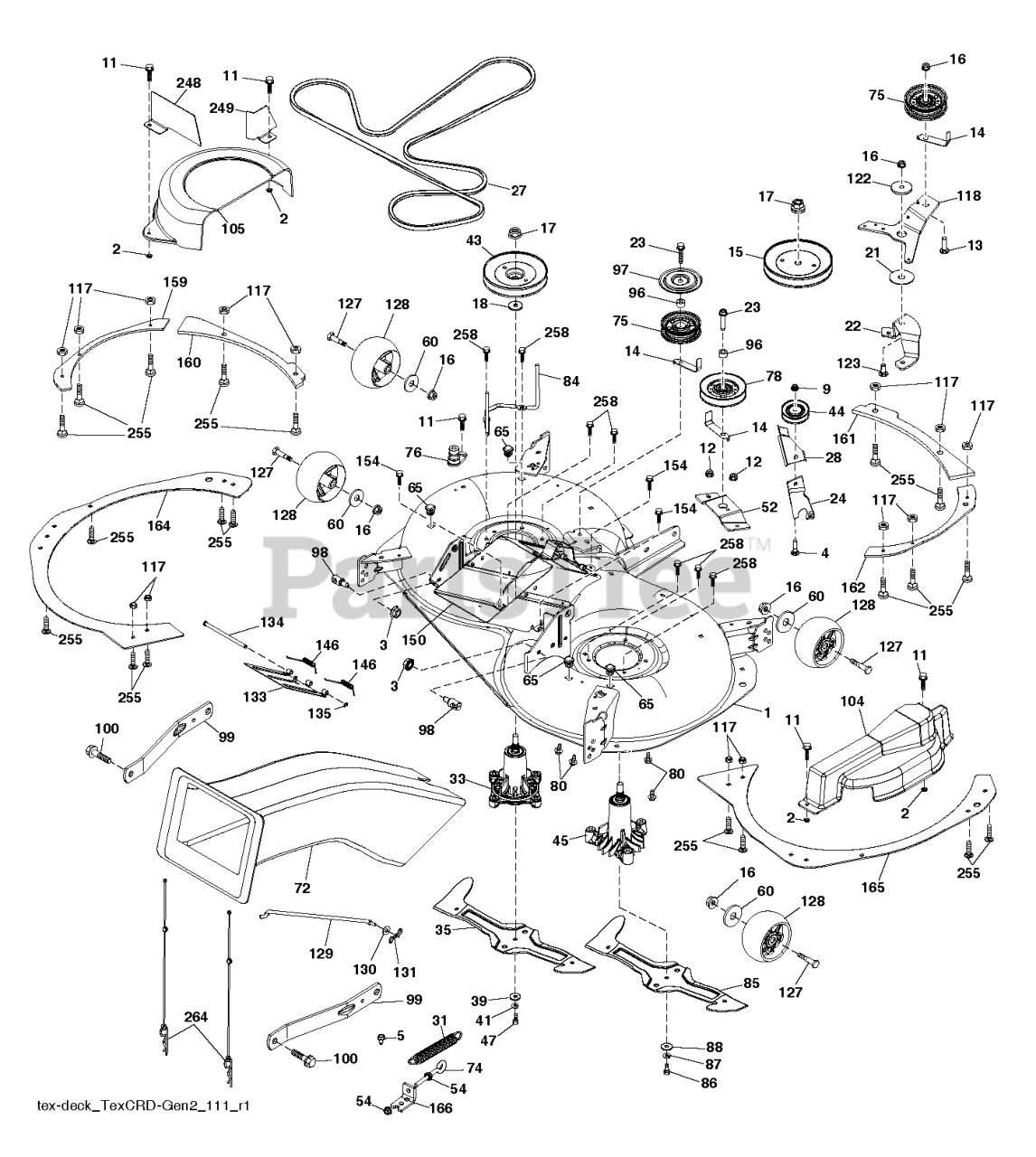

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

44

Husqvarna 532199534

PULLEY.V-IDLER.

$37.99

$

Usually ships in 3-10 days

0

131

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

98

Husqvarna 593824001

STUD.W/"D"ANTI-ROTATION

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 596135701

GSPW Nuts

Note: RH

$3.99

$

In Stock, only 2 left!

0

87

Husqvarna 596238701

Washers

$4.99

$

In Stock, Qty 20+

0

129

Husqvarna 532443237

ROD ROD. SWAY CRD GEN II
(Superseded to 583568101)

$26.99

$

In Stock, only 1 left!

0

28

Husqvarna 592865902

KEEPER 107 CRD ANGLED IDLER KE

$13.99

$

Usually ships in 3-10 days

0

72

Husqvarna 581454103

CHUTE.SLOTTED.HOLES.TEX.CRD.II

$91.99

$

Usually ships in 3-10 days

0

150

Husqvarna 596013002

CHUTE.107TCRD.X-MULCH.CHT.EDIP

$51.99

$

Usually ships in 3-10 days

0

65

Husqvarna 596952201

Plugs

$3.99

$

Usually ships in 3-10 days

0

255

Husqvarna 539109800

RHSNB, 1/4-20 X 1, GR5
(Superseded to 592807801)

$4.99

$

In Stock, only 3 left!

0

76

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 12

0

11

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

23

Husqvarna 596564003

BOLT;HEX_3/8-16 X 1.78.CLRZINC

$3.49

$

Usually ships in 3-10 days

0

128

Husqvarna 589527301

WHEEL.GAUGE.RALLY

$10.99

$

Usually ships in 3-10 days

0

84

Husqvarna 532443235

KEEPER KEEPER. LH MANDREL BELT
(Superseded to 583567901)

$11.99

$

Usually ships in 3-10 days

0

123

Husqvarna 596987501

Bolts

$4.99

$

In Stock, only 3 left!

0

47

Husqvarna 584309301

SCREW.SEMS.7/16-20X1.HEX.HEAD
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

41

Husqvarna 596238901

Washers

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 872110510

BOLT.CARRIAGE.5/16-18

$7.49

$

In Stock, Qty 20+

0

24

Husqvarna 594972903

BRACKET 107 CRD ANGLED V-IDLER

$27.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532180583

BLADE.3N1.LH.CRD

$36.99

$

In Stock, only 1 left!

0

104

Husqvarna 592865701

COVER.MANDRE.107.CRD.VAC.GUARD

$56.99

$

Usually ships in 3-10 days

0

134

Husqvarna 532435861

PIN PIN.HINGE
(Superseded to 583507401)

$8.99

$

Usually ships in 3-10 days

0

5

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

80

Husqvarna 595901601

GSPW Bolts

$3.99

$

In Stock, Qty 20+

0

60

Husqvarna 596134901

GSPH

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 585691301

NUT HEX FLG NYLOCK BLK 5_16-1

$6.99

$

In Stock, Qty 8

0

52

Husqvarna 594972603

BRACKET 107 CRD CENTER V-IDLER

$37.99

$

Usually ships in 3-10 days

0

1

Husqvarna 596762801

KIT.SVC.DECK.WELD.107HP.EL.498

$319.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

17

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

27

Husqvarna 592869301

BELT 107 CRD DECK DRIVE BELT

$68.99

$

Usually ships in 3-10 days

0

258

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

135

Husqvarna 532437988

E-RING.5/16"

$9.49

$

Usually ships in 3-10 days

0

85

Husqvarna 532180584

BLADE.3N1.RH.CRD

$72.99

$

In Stock, only 1 left!

0

88

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0

105

Husqvarna 532444755

COVER.MANDREL.107.LH.GEN.2

$20.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532423062

PALNUT 1/4

$4.99

$

In Stock, only 2 left!

0

31

Husqvarna 587358401

SPRING.EXTN.42.FCS.TR.DECK.DRV
(Superseded to 532197251)

$11.99

$

In Stock, only 2 left!

0

43

Husqvarna 532443239

PULLEY PULLEY MANDREL 5.438 PD
(Superseded to 583568201)

$53.99

$

Usually ships in 3-10 days

0

54

Husqvarna 596039201

GSPW Hardware

$3.99

$

In Stock, Qty 20+

0

165

Husqvarna 587426102

BAFFLE.PNT.107.CRD.PLATE.RT.BK

$39.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

21

Husqvarna 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532195945

PULLEY.MANDREL.5.438.P

$14.99

$

In Stock, Qty 20+

0

45

Husqvarna 532165579

MANDREL ASM.CRD RH 6PT STAR

$91.99

$

Usually ships in 3-10 days

0

117

Husqvarna 873900400

NUT T
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

154

Husqvarna 532199855

SCREW T-30 1/4-20 X
(Superseded to 583254901)

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 581526501

WASHER.7/16.FLAT

$3.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 596762901

CUTTING DECK DECK.SVC.107CRD.E

Note: REPLACEMENT DECK

$1152.99

$

Usually ships in 3-10 days

0

161

Husqvarna 585316005

REINFORCE.PLATE.RH.FRT.X431

$13.99

$

Usually ships in 3-10 days

0

130

Husqvarna 596133201

Washers

$6.99

$

In Stock, only 1 left!

0

249

Husqvarna 589009702

GUARD BELT.CRD.LH.FRNT.ISO X43

$6.99

$

Usually ships in 3-10 days

0

16

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

159

Husqvarna 585309405

REINFORCE.PLATE.LH.FT.X431

$8.99

$

Usually ships in 3-10 days

0

22

Husqvarna 592854702

BRACKET CRD IDLER ARM MOUNT BL

$26.99

$

Usually ships in 3-10 days

0

99

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

248

Husqvarna 589009802

GUARD BELT.CRD.LH.REAR.ISO X43

$7.99

$

Usually ships in 3-10 days

0

166

Husqvarna 592856001

BRACKET CRD ELEC DECK DRIVE TE

$10.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532173438

PULLEY.IDLER.FLAT
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

97

Husqvarna 532182061

PROTECTOR
(Superseded to 583119101)

$6.49

$

Usually ships in 3-10 days

0

78

Husqvarna 532173902

REPL BY 532 1467-63
(Superseded to 532146763)

$

$

Not available

160

Husqvarna 585309505

REINFORCE.PLATE.LHS.BOLT.431

$14.99

$

Usually ships in 3-10 days

0

100

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

118

Husqvarna 592865802

ARM 107 CRD CLUTCHING ARM BLAC

$20.99

$

Usually ships in 3-10 days

0

162

Husqvarna 585316105

REINFORCE.PLAT.RH.SD.BLT.X431

$26.99

$

Usually ships in 3-10 days

0

96

Husqvarna 532400271

SPACER
(Superseded to 583261101)

$6.49

$

Usually ships in 3-10 days

0

74

Husqvarna 596240801

GSPW Bolts

$4.99

$

Usually ships in 3-10 days

0

264

Husqvarna 589392902

Retainers

$4.99

$

Usually ships in 3-10 days

0

164

Husqvarna 589358502

BAFFLE.PLATE.PNT.107CRD.LT.BLK

$51.99

$

Usually ships in 3-10 days

0

86

Husqvarna 532181713

BOLT.3/8-24X1.25GR8. LHTHRD
(Superseded to 583117001)

$4.99

$

In Stock, Qty 11

0

122

Husqvarna 532165723

SPACER.RETAINER.MOWER

$6.99

$

In Stock, only 2 left!

0

133

Husqvarna 532438197

COVER DOOR.107 CM CRD EZ MULCH
(Superseded to 583527801)

$9.49

$

Usually ships in 3-10 days

0

33

Husqvarna 587819701

KIT.MANDREL.NONGREASE.TALL

$56.99

$

In Stock, Qty 20+

0

127

Husqvarna 596434404

Bolts

$5.99

$

In Stock, Qty 20+

0

13

Husqvarna 596136101

GSPW Bolts

$3.99

$

In Stock, Qty 5

0

146

Husqvarna 532445896

SPRING SPRING: EZ MULCH DOOR
(Superseded to 583582001)

$3.49

$

Usually ships in 3-10 days

0
