TC 342 (960510164-00) - Husqvarna 42" Garden Tractor (2017-02) MOWER DECK / CUTTING DECK Parts Diagram

42" Garden Tractor

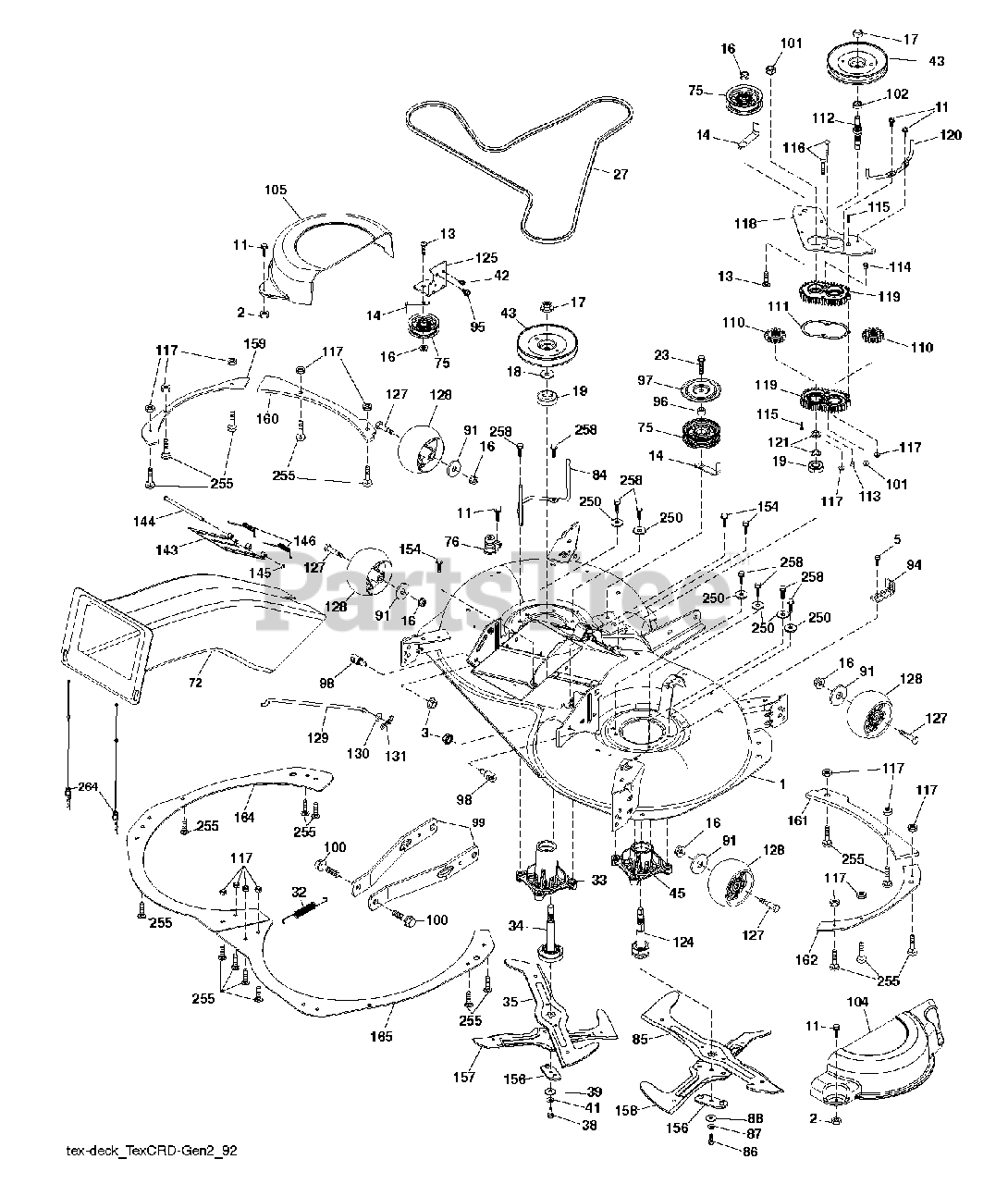

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 580973301

DECK SVC 107HP.EZMUL.498
(Superseded to 581928401)

$319.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532423062

PALNUT 1/4

$4.99

$

In Stock, only 2 left!

0

3

Husqvarna 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 583612701)

Note: RH

$

$

Not available

5

Husqvarna 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 12

0

11

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

13

Husqvarna 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

16

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

18

Husqvarna 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

19

Husqvarna 585323901

BEARING.MANDREL.TOP.EXTENDED

$14.99

$

In Stock, only 2 left!

0

23

Husqvarna 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532445887

BELT.ELECT.MOWER.DRIVE 97.8 EL

$56.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532446205

SPRING 107CM & 97CM ELECTRIC D
(Superseded to 583584001)

$11.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532187281

HOUSING.MANDREL.4PT.
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

34

Husqvarna 587256501

SHAFT ASM.MNDRL.N/GREASEABLE
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

35

Husqvarna 532180583

BLADE.3N1.LH.CRD

$36.99

$

In Stock, only 1 left!

0

38

Husqvarna 590884001

BOLT.BLADE.7/16-20 X 1.5 GR8

$

$

Not available

39

Husqvarna 581526501

Flat Washer, 7/16"

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

42

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

43

Husqvarna 532443239

PULLEY PULLEY MANDREL 5.438 PD
(Superseded to 583568201)

$53.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532137152

HOUSING.MANDREL.44/46" VENT

$40.99

$

In Stock, only 1 left!

0

72

Husqvarna 581454103

CHUTE.SLOTTED.HOLES.TEX.CRD.II

$91.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

76

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 12

0

84

Husqvarna 532443235

KEEPER KEEPER. LH MANDREL BELT
(Superseded to 583567901)

$11.99

$

Usually ships in 3-10 days

0

85

Husqvarna 532180584

BLADE.3N1.RH.CRD

$72.99

$

In Stock, only 1 left!

0

86

Husqvarna 532181713

BOLT.3/8-24X1.25GR8. LHTHRD
(Superseded to 583117001)

$4.99

$

In Stock, Qty 11

0

87

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

88

Husqvarna 532140296

WASHER.BLADE

$6.99

$

In Stock, only 2 left!

0

91

Husqvarna 819132012

WASHER
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

94

Husqvarna 532197250

BRKT.CLUTCH.CABLE

$6.49

$

Usually ships in 3-10 days

0

95

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

96

Husqvarna 532400271

SPACER
(Superseded to 583261101)

$6.49

$

Usually ships in 3-10 days

0

97

Husqvarna 532182061

PROTECTOR
(Superseded to 583119101)

$6.49

$

Usually ships in 3-10 days

0

98

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

99

Husqvarna 532195186

ARM.SUSPENSION.MOWER.R

$17.99

$

Usually ships in 3-10 days

0

100

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

101

Husqvarna 873680900

NUT.CROWNLOCK.9/16 -18.UNC
(Superseded to 583612301)

$4.99

$

Usually ships in 3-10 days

0

102

Husqvarna 532402511

SPACER BEARING

$4.99

$

In Stock, only 1 left!

0

104

Husqvarna 581714001

COVER.MANDREL.107.RH.GEN.2

$24.99

$

Usually ships in 3-10 days

0

105

Husqvarna 532444755

COVER.MANDREL.107.LH.GEN.2

$20.99

$

Usually ships in 3-10 days

0

110

Husqvarna 587934801

CRD.SPUR.GEAR

$13.99

$

Usually ships in 3-10 days

0

111

Husqvarna 532436979

GASKET GASKET GEARCASE
(Superseded to 583514001)

$6.49

$

Usually ships in 3-10 days

0

112

Husqvarna 532443852

SHAFT SHAFT. CRD GEARCASE ADAP
(Superseded to 583571601)

$17.99

$

In Stock, only 1 left!

0

113

Husqvarna 532438533

PLUG PLUG OIL
(Superseded to 583533001)

$4.99

$

Usually ships in 3-10 days

0

114

Husqvarna 588170501

VENT.BREATHER.1/8 NPT

$10.99

$

Usually ships in 3-10 days

0

115

Husqvarna 818031016

SCREW
(Superseded to 583608901)

$4.99

$

Usually ships in 3-10 days

0

116

Husqvarna 872110414

BOLT.CARIGE.SS.1/4-20X1.75GR5
(Superseded to 583611101)

$

$

Not available

117

Husqvarna 873900400

NUT T
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

118

Husqvarna 532443232

ARM ARM. CLUTCHING 107 TEX CRD
(Superseded to 583567701)

$20.99

$

Usually ships in 3-10 days

0

119

Husqvarna 532438166

GEARCASE GEARCASE SUBASM
(Superseded to 583527601)

$74.99

$

Usually ships in 3-10 days

0

120

Husqvarna 532443236

KEEPER KEEPER. RH MANDREL BELT
(Superseded to 583568001)

$15.99

$

Usually ships in 3-10 days

0

121

Husqvarna 532436985

WASHER WASHER
(Superseded to 583514101)

$4.99

$

Usually ships in 3-10 days

0

124

Husqvarna 532436986

MANDREL SHAFT NON/GREASE
(Superseded to 583514201)

$43.99

$

In Stock, only 4 left!

0

125

Husqvarna 532436994

BRACKET BRACKET IDLER CHASSES
(Superseded to 583514801)

$10.99

$

Usually ships in 3-10 days

0

127

Husqvarna 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

128

Husqvarna 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

129

Husqvarna 532443237

ROD ROD. SWAY CRD GEN II
(Superseded to 583568101)

$26.99

$

In Stock, only 1 left!

0

130

Husqvarna 819131312

WASHER
(Superseded to 734117201)

$3.49

$

Usually ships in 3-10 days

0

131

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

143

Husqvarna 532438197

COVER DOOR.107 CM CRD EZ MULCH
(Superseded to 583527801)

$9.49

$

Usually ships in 3-10 days

0

144

Husqvarna 532435861

PIN PIN.HINGE
(Superseded to 583507401)

$8.99

$

Usually ships in 3-10 days

0

145

Husqvarna 532437988

E-RING.5/16"

$9.49

$

Usually ships in 3-10 days

0

146

Husqvarna 532445896

SPRING SPRING: EZ MULCH DOOR
(Superseded to 583582001)

$3.49

$

Usually ships in 3-10 days

0

154

Husqvarna 532199855

SCREW T-30 1/4-20 X
(Superseded to 583254901)

$4.99

$

Usually ships in 3-10 days

0

156

Husqvarna 532446995

ADAPTER ADAPTER.CROSSBLADE.107
(Superseded to 583588901)

$6.99

$

Usually ships in 3-10 days

0

157

Husqvarna 532446993

BLADE 107CM.CROSS.BLADE

$

$

Not available

158

Husqvarna 532180425

BLADE.CROSS.RH.CRD.107

$45.99

$

Usually ships in 3-10 days

0

159

Husqvarna 585309405

REINFORCE.PLATE.LH.FT.X431

$8.99

$

Usually ships in 3-10 days

0

160

Husqvarna 585309505

REINFORCE.PLATE.LHS.BOLT.431

$14.99

$

Usually ships in 3-10 days

0

161

Husqvarna 585316005

REINFORCE.PLATE.RH.FRT.X431

$13.99

$

Usually ships in 3-10 days

0

162

Husqvarna 585316105

REINFORCE.PLAT.RH.SD.BLT.X431

$26.99

$

Usually ships in 3-10 days

0

164

Husqvarna 589358502

BAFFLE.PLATE.PNT.107CRD.LT.BLK

$51.99

$

Usually ships in 3-10 days

0

165

Husqvarna 587426102

BAFFLE.PNT.107.CRD.PLATE.RT.BK

$39.99

$

Usually ships in 3-10 days

0

250

Husqvarna 819111212

WASHER

$8.99

$

Usually ships in 3-10 days

0

255

Husqvarna 539109800

RHSNB, 1/4-20 X 1, GR5
(Superseded to 592807801)

$4.99

$

In Stock, only 3 left!

0

258

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

264

Husqvarna 589392901

RETAINER.ASM.UPPERCHU

$

$

Not available

--

Husqvarna 589643101

Mower Deck Assembly

Note: REPLACEMENT DECK

$1025.99

$

Usually ships in 3-10 days

0

--

Husqvarna 587253301

MANDREL.NONGREASEABLE.TALL
(Superseded to 587819701)

Note: Mandrel Assembly Tall (Includes Housing (key 33) Shaft Assembly (key 34) and Bearing Only (key 19)- Pulley /Nut /Washer and Blade Bolt /Washers Not Included)

$56.99

$

In Stock, Qty 20+

0

--

Husqvarna 532448132

KIT.CRD.GEABOX.SVC

Note: Gear Case Kit Use 75 oz Shell 460 Oil (Include Gear Output (key 110) Gasket Gearcase (key 111) Shaft Gearcase (key 112) Plug Oil (key 113) Vent Breather 1 /8 NPT (key 114) Screw Torx (key 115) Gearcase Subasm (key 119)

$

$

Not available
