TC 342 (960510138-00) - Husqvarna 42" Garden Tractor (2015-03) ELECTRICAL Parts Diagram

42" Garden Tractor

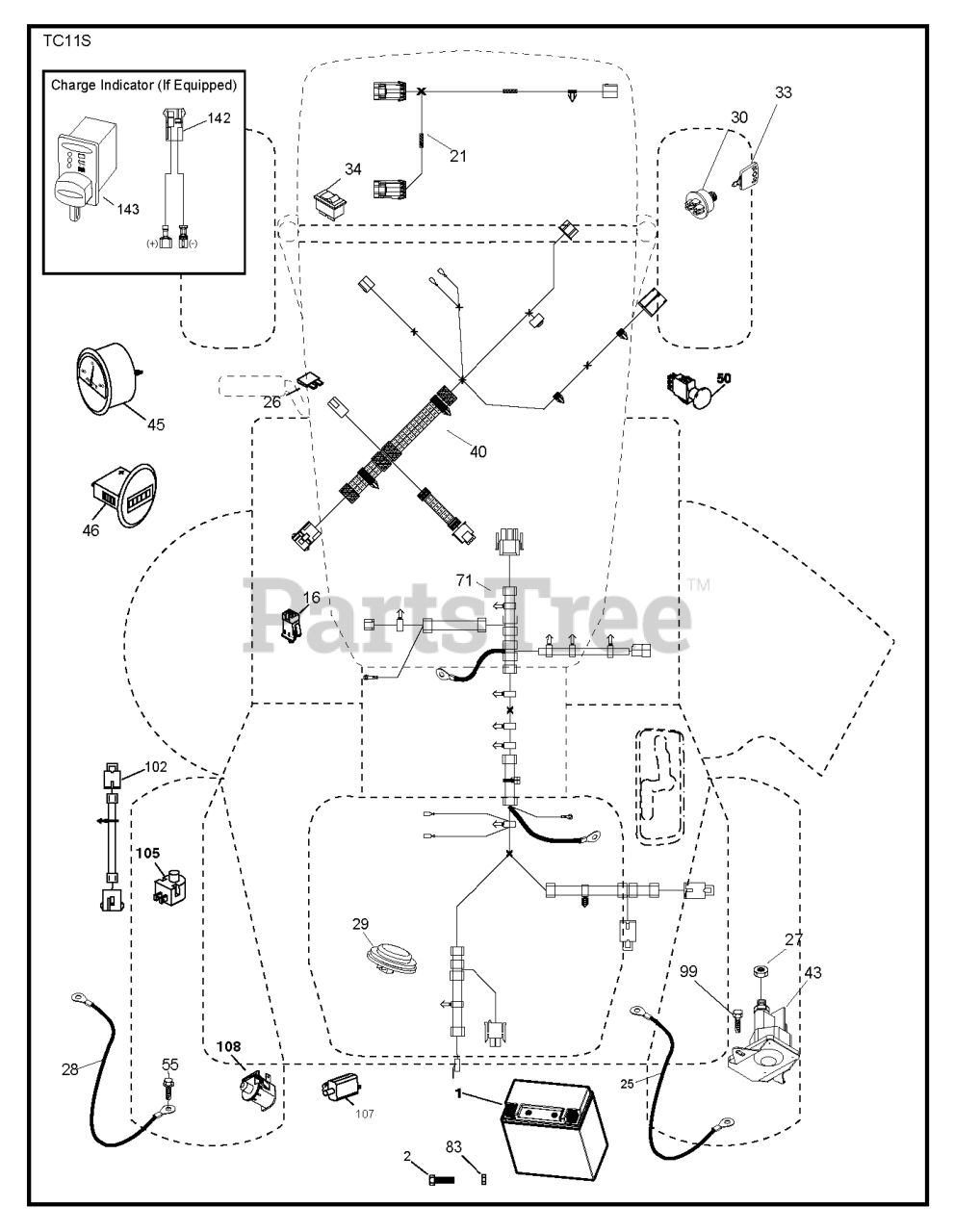

ELECTRICAL Parts Diagram

  • Title

34

Husqvarna 532110712

SWITCH LT

$9.49

$

In Stock, only 4 left!

0

21

Husqvarna 585436401

HARNESS LIGHT ASSY TRACTOR,

$26.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532193350

SWITCH.IGN.DELTA.W.LGH.ROS

$22.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532401545

SWITCH.SEAT.DELTA.OPC.

$39.99

$

In Stock, Qty 6

0

99

Husqvarna 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 14

0

83

Husqvarna 532436774

NUT NUT SQUARE
(Superseded to 594086501)

$2.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532440923

SCREW.HEX.HEAD.CAP.M6 X1.12W

$

$

Not available

26

Husqvarna 532175158

FUSE 20AMP

$7.49

$

In Stock, only 2 left!

0

107

Husqvarna 532180379

.WITCH.FULL BAGGER.INDICATOR
(Superseded to 583100701)

$15.99

$

In Stock, only 1 left!

0

16

Husqvarna 532176138

SWITCH INTERLOOK PUSH-IN

$22.99

$

In Stock, Qty 9

0

45

Husqvarna 587553903

GAUGE.AMMETER.SILVER/WHITE

$

$

Not available

33

Husqvarna 532411935

KEY.CHAIN.BLISTER.PACK.GEN.INT

$10.99

$

Usually ships in 3-10 days

0

102

Husqvarna 532441262

HARNESS ASSY
(Superseded to 583555601)

$15.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532192507

SOLENOID.W/BRASS.PLUNGER
(Superseded to 582042802)

$26.99

$

In Stock, Qty 20+

0

71

Husqvarna 532440820

HARNESS
(Superseded to 587268701)

$113.99

$

Usually ships in 3-10 days

0

108

Husqvarna 532421062

SWITCH.SNAPMOUNT.NC

$14.99

$

In Stock, only 2 left!

0

1

Husqvarna 532437157

BATTERY BATTERY 14AH 12V LEOC
(Superseded to 583516701)

$136.99

$

Usually ships in 3-10 days

0

40

Husqvarna 587304801

HARNESS.DASH.TCRD.EL.RND.CH.RS

$79.99

$

Usually ships in 3-10 days

0

46

Husqvarna 587554003

GAUGE.HOUR.METER.SILVER/WHITE

$51.99

$

Usually ships in 3-10 days

0

50

Husqvarna 582107601

SWITCH.PTO.8TERMINAL.STD.BLK

$28.99

$

In Stock, Qty 8

0

28

Husqvarna 532441383

CABLE CABLE.BLACK.20.8AWG.M6.C
(Superseded to 583556501)

$22.99

$

Usually ships in 3-10 days

0

27

Husqvarna 873510400

NUT
(Superseded to 873680400)

$4.99

$

In Stock, Qty 18

0

55

Husqvarna 817060512

SCREW 5/16"
(Superseded to 817490508)

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532441382

CABLE CABLE.RED.20.8AWG.M6.CRD
(Superseded to 583556401)

$18.99

$

Usually ships in 3-10 days

0

105

Husqvarna 532407568

REVERSE SWITCH

$18.99

$

In Stock, only 2 left!

0
