TC 242 TX - Husqvarna 42" Garden Tractor (Original) CHASSIS / FRAME Parts Diagram

42" Garden Tractor

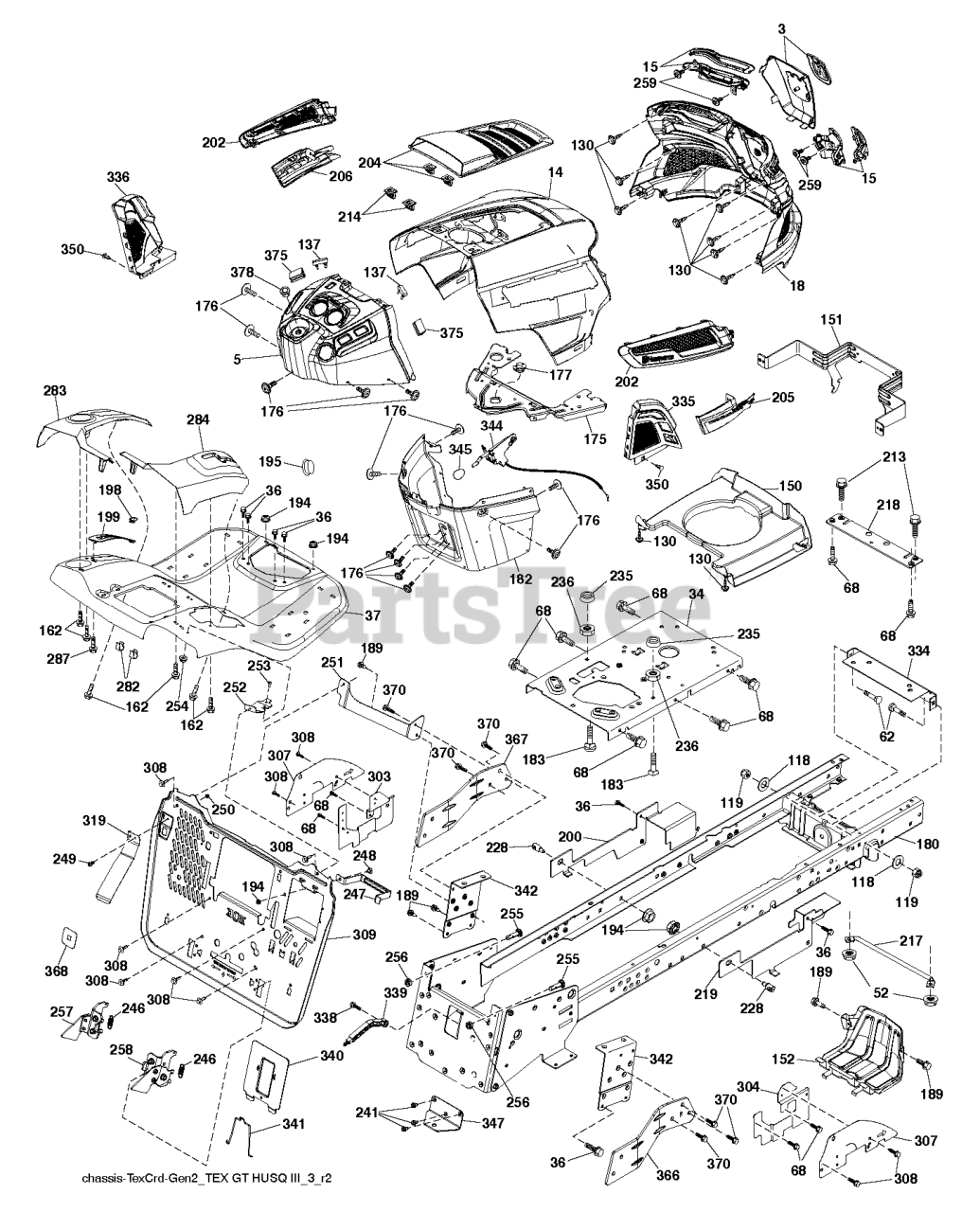

CHASSIS / FRAME Parts Diagram

  • Title

283

Husqvarna 532447212

CONSOLE.DECKLIFT.CRDII.498

$148.99

$

Usually ships in 3-10 days

0

253

Husqvarna 596238401

BOLT CUP HEAD SQUARE NECK BOLT

$3.99

$

Usually ships in 3-10 days

0

68

Husqvarna 596030701

Screws

$3.99

$

In Stock, only 2 left!

0

370

Husqvarna 817120616

SCREW 3/8-16X1

$5.99

$

In Stock, Qty 17

0

18

Husqvarna 597407102

Grilles

$157.99

$

Usually ships in 3-10 days

0

284

Husqvarna 532447220

CONSOLE.PEDAL.HYDRO

$62.99

$

Usually ships in 3-10 days

0

180

Husqvarna 593898801

CHASSIS WELDMENT.CRD2.BKP_BLTS

$227.99

$

Usually ships in 3-10 days

0

341

Husqvarna 582060801

LATCH.BATTERY.DOOR.TCRD

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

152

Husqvarna 532439870

SHIELD.BROWNING.PNT.GT.V2

$17.99

$

In Stock, only 2 left!

0

303

Husqvarna 597723902

Shields

Note: For 96051019300, 96051019301

$17.99

$

Usually ships in 3-10 days

0

259

Husqvarna 596434001

Screws

$3.99

$

Usually ships in 3-10 days

0

176

Husqvarna 532400776

SCREW.#10-24X5/8.RN.QU

$10.99

$

Usually ships in 3-10 days

0

62

Husqvarna 596728201

Bolts

$4.99

$

In Stock, only 1 left!

0

52

Husqvarna 596040501

Hardware

$3.99

$

In Stock, Qty 20+

0

304

Husqvarna 597724002

Shields

Note: For 96051019300, 96051019301

$20.99

$

Usually ships in 3-10 days

0

202

Husqvarna 597867701

Vents

Note: RH

$37.99

$

In Stock, only 2 left!

0

189

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 11

0

248

Husqvarna 596039401

BOLT ROUND HEAD SQUARE NECK BO

$3.99

$

In Stock, Qty 20+

0

344

Husqvarna 583536701

CONTROL.EZ.MULCH.TEX/CRD

$133.99

$

Usually ships in 3-10 days

0

308

Husqvarna 532171877

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

375

Husqvarna 586908201

BUMPER CLIP-ON. DASH 1"

$4.99

$

In Stock, only 2 left!

0

250

Husqvarna 596040801

Hardware

$3.99

$

In Stock, Qty 20+

0

366

Husqvarna 599361602

Brackets

Note: For 96051019900, 96051019301

$34.99

$

Usually ships in 3-10 days

0

119

Husqvarna 596322601

Nuts

$3.99

$

In Stock, only 4 left!

0

198

Husqvarna 532441552

INDICATOR.DECK.LIFT.RED

$15.99

$

Usually ships in 3-10 days

0

256

Husqvarna 596219001

Nuts

$2.49

$

Usually ships in 3-10 days

0

205

Husqvarna 532439730

SIDE.TRIM.RH.GT.HUSQ.II

Note: RH

$14.99

$

Usually ships in 3-10 days

0

- -

Husqvarna 531307007

TRACTOR BUMPER KIT ALL MODELS

Note: For 96051019301

$83.99

$

Usually ships in 3-10 days

0

213

Husqvarna 596030501

SCREW HEXAGON HEAD SCREW 5/16-

$4.99

$

In Stock, Qty 20+

0

319

Husqvarna 581313907

LEVER.PRSNC.BGR.TEX.CRD.GEN2.1

$14.99

$

Usually ships in 3-10 days

0

340

Husqvarna 582552702

BATTERY.DOOR.TCRD.GEN2.5.MS479

$37.99

$

Usually ships in 3-10 days

0

335

Husqvarna 532448204

COVER.LOWER.DASH.RH.BLACK

$37.99

$

In Stock, only 1 left!

0

37

Husqvarna 532441419

FENDER.TEX.SRD.CRD.BASE

$182.99

$

Usually ships in 3-10 days

0

334

Husqvarna 583564401

BRACKET.ENGINE.

$12.99

$

Usually ships in 3-10 days

0

150

Husqvarna 532439774

AIR.DUCT.GTV.BLACK

$53.99

$

Usually ships in 3-10 days

0

350

Husqvarna 532445143

CLIP.X-MAS.TREE

$4.99

$

In Stock, only 1 left!

0

219

Husqvarna 598935002

SHIELD.RH.CHASSIS.MS431

Note: For 96051019300, 96051019301

$31.99

$

Usually ships in 3-10 days

0

118

Husqvarna 596565301

WASHER PLAIN WASHER 3/8 X 0.08

$3.99

$

In Stock, Qty 20+

0

241

Husqvarna 593337601

Screws

$4.99

$

Usually ships in 3-10 days

0

339

Husqvarna 583510301

SUBASM.BAGGER.FULL.LVER.(2 2)

$8.99

$

Usually ships in 3-10 days

0

206

Husqvarna 532439729

SIDE.TRIM.LH.GT.HUSQ.II.GRAY

Note: LH

$17.99

$

In Stock, only 1 left!

0

368

Husqvarna 581424801

FULL.LEVER.BAGGER.TEX.CRD

$6.49

$

Usually ships in 3-10 days

0

177

Husqvarna 532195228

BUSHING STEERING

$5.99

$

Usually ships in 3-10 days

0

307

Husqvarna 587494501

SHIELD.UPPER.CRD.SRD.ISO

Note: For 96051019300, 96051019301

$26.99

$

Usually ships in 3-10 days

0

162

Husqvarna 596134101

Screws

$3.99

$

In Stock, only 3 left!

0

235

Husqvarna 596564201

Spacers

$5.99

$

Usually ships in 3-10 days

0

130

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 15

0

366

Husqvarna 581314602

BRACKET.RH.FRONT.BAGGER.BLACK

Note: For 96051019300

$34.99

$

Usually ships in 3-10 days

0

228

Husqvarna 593824001

STUD.W/"D"ANTI-ROTATION

$4.99

$

In Stock, Qty 20+

0

175

Husqvarna 590607702

PLATE.PNT.CROSSMEMBER.HUSQ/PRE

$37.99

$

Usually ships in 3-10 days

0

217

Husqvarna 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

195

Husqvarna 532404137

PLUG.HOLE.DASH.LOWER.12V.BLK

$6.49

$

Usually ships in 3-10 days

0

204

Husqvarna 597408001

Vents

$22.99

$

Usually ships in 3-10 days

0

194

Husqvarna 596135701

GSPW Nuts

$3.99

$

In Stock, only 2 left!

0

309

Husqvarna 582552502

BACKPLATE.TEXCRD2.5.BAGGER.479

$148.99

$

Usually ships in 3-10 days

0

367

Husqvarna 581314502

BRACKET.LH.FRONT.BAGGER.BLACK

Note: For 96051019300

$34.99

$

Usually ships in 3-10 days

0

14

Husqvarna 587483301

KIT.HOOD.ASM.HUSQ.GT.TEX.668

$85.99

$

Usually ships in 3-10 days

0

15

Husqvarna 597867901

Service Kit

Note: LH

$53.99

$

Usually ships in 3-10 days

0

287

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

Usually ships in 3-10 days

0

218

Husqvarna 532196395

X-PIECE.HOOD.STOP.NON/

$7.99

$

Usually ships in 3-10 days

0

342

Husqvarna 582826802

SUPPORT.PNT.FENDER.CRD.TEX

$20.99

$

Usually ships in 3-10 days

0

336

Husqvarna 532445309

COVER-LH.LOWER.DASH.GT2.BLACK

$37.99

$

In Stock, only 1 left!

0

34

Husqvarna 593944402

Engines

$85.99

$

Usually ships in 3-10 days

0

255

Husqvarna 589392203

Bolts

$4.99

$

Usually ships in 3-10 days

0

214

Husqvarna 532199145

CLIP.RETAINER.TINNER.

$6.49

$

In Stock, only 4 left!

0

338

Husqvarna 594093901

Bolts

$2.49

$

Usually ships in 3-10 days

0

257

Husqvarna 589746602

LATCH.ASM.BGR.LH.GEN2.5.STMPD

$24.99

$

Usually ships in 3-10 days

0

378

Husqvarna 590849801

BUSHING FLANGE; PLASTIC

$4.99

$

In Stock, only 1 left!

0

182

Husqvarna 532406859

DASH.LOWER.COMMON.12V.ADAPTOR

$96.99

$

In Stock, only 2 left!

0

246

Husqvarna 591449001

SPRING.LTCH.BGR.GEN2.5.CRD.TEX

$2.49

$

Usually ships in 3-10 days

0

137

Husqvarna 532407590

BUMPER DASH

$6.49

$

In Stock, Qty 6

0

254

Husqvarna 586668901

NUT HEX_LRG FLG_1_4-20_LOCK

$4.99

$

In Stock, Qty 16

0

3

Husqvarna 597688201

Covers

$31.99

$

Usually ships in 3-10 days

0

183

Husqvarna 595305701

Screws

$4.99

$

In Stock, only 3 left!

0

251

Husqvarna 589318904

BRACKET.PNT.LH.SUPP.BKPLT.EDIP

$14.99

$

Usually ships in 3-10 days

0

5

Husqvarna 590748817

DASH.UPR.GT2.DUAL.RD.PT

$47.99

$

Usually ships in 3-10 days

0

347

Husqvarna 583566701

HITCH.TOW.TEX.CRD.GEN.2

$14.99

$

Usually ships in 3-10 days

0

200

Husqvarna 598934602

SHIELD.LH.CHASSIS.MS431

Note: For 96051019300, 96051019301

$28.99

$

Usually ships in 3-10 days

0

282

Husqvarna 532414110

CLIP.RETAINER.CONSOLE.LT.HUSQ

$6.49

$

In Stock, Qty 15

0

252

Husqvarna 581992204

BRACKET.PNT.RH.SUPP.BKPLT.EDIP

$13.99

$

Usually ships in 3-10 days

0

258

Husqvarna 589746702

LATCH.ASM.BGR.RH.GEN2.5.STMPD

$24.99

$

Usually ships in 3-10 days

0

247

Husqvarna 582552602

STRAP.BATTERY.TCRD.GEN2.5X431

$31.99

$

Usually ships in 3-10 days

0

249

Husqvarna 586936001

SCREW.BUTTONHD.10-24X1/2.(2 2)

$4.99

$

In Stock, only 1 left!

0

367

Husqvarna 599361902

Brackets
(Superseded to 537594001)

Note: For 96051019900, 96051019301

$34.99

$

Usually ships in 3-10 days

0

345

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 6

0

199

Husqvarna 583371401

PLATE.DECKLIFT.SRD

$9.99

$

Usually ships in 3-10 days

0

151

Husqvarna 531077401

SERVICE KIT PIVOT BRACKET BRAC

$43.99

$

In Stock, only 1 left!

0

236

Husqvarna 873930500

NUT.CENTERLOCK.5/16-

$7.49

$

In Stock, only 1 left!

0
