TC 242 T (960510195-00) - Husqvarna 42" Garden Tractor (2019-07) MOWER DECK / CUTTING DECK Parts Diagram

42" Garden Tractor

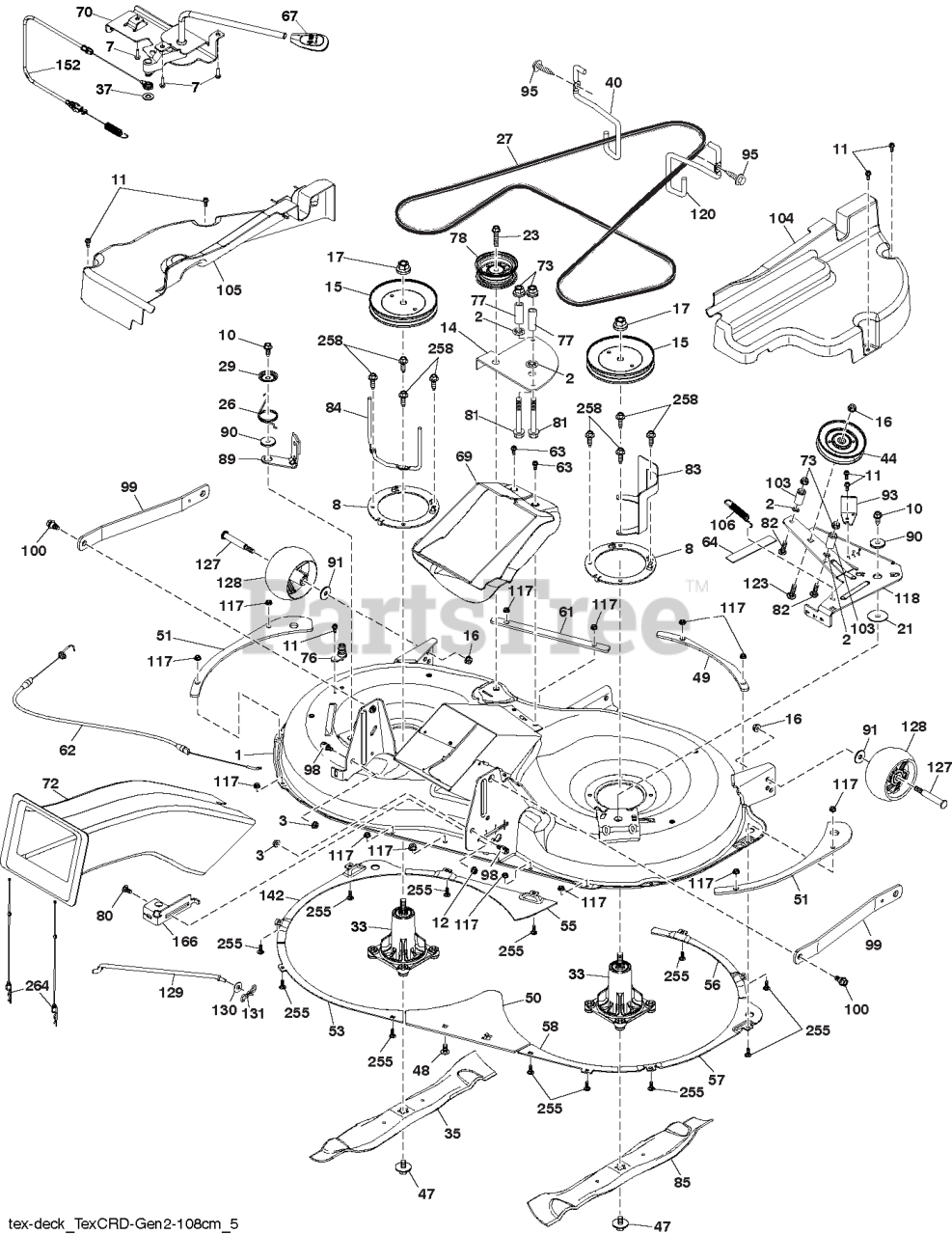

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

77

Husqvarna 599244101

SPACER.KEEPER

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532198410

SPRING.TORSION.BRAKE

$6.49

$

In Stock, Qty 8

0

16

Husqvarna 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

49

Husqvarna 594025102

Plates

$7.99

$

Usually ships in 3-10 days

0

91

Husqvarna 596134901

GSPH

$3.49

$

Usually ships in 3-10 days

0

63

Husqvarna 585517801

HEX.WASHER.HEAD 1/4-20 X .65

$4.99

$

In Stock, only 4 left!

0

255

Husqvarna 596238401

BOLT CUP HEAD SQUARE NECK BOLT

Note: (589109800) BOLT

$3.99

$

Usually ships in 3-10 days

0

62

Husqvarna 594032901

Cables

$24.99

$

Usually ships in 3-10 days

0

80

Husqvarna 595901601

GSPW Bolts

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 532106513

WASHER, WEAR LT (1 2)

$6.99

$

In Stock, only 4 left!

0

95

Husqvarna 817000612

SCREW, 3/8-16X3/4

$4.99

$

Usually ships in 3-10 days

0

57

Husqvarna 597252402

Plates

$13.99

$

Usually ships in 3-10 days

0

23

Husqvarna 596564003

BOLT;HEX_3/8-16 X 1.78.CLRZINC

$3.49

$

Usually ships in 3-10 days

0

128

Husqvarna 589527301

WHEEL.GAUGE.RALLY

$10.99

$

Usually ships in 3-10 days

0

67

Husqvarna 532403012

HANDLE.CLUTCH.CABLE.LT

$12.99

$

In Stock, only 1 left!

0

53

Husqvarna 597252502

Plates

$10.99

$

Usually ships in 3-10 days

0

40

Husqvarna 595533201

Keepers

$13.99

$

Usually ships in 3-10 days

0

152

Husqvarna 594033001

Cables

$31.99

$

Usually ships in 3-10 days

0

37

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

120

Husqvarna 597646801

Keepers

$10.99

$

Usually ships in 3-10 days

0

99

Husqvarna 594928202

Arms

$17.99

$

Usually ships in 3-10 days

0

129

Husqvarna 532443237

ROD ROD. SWAY CRD GEN II
(Superseded to 583568101)

$26.99

$

In Stock, only 1 left!

0

105

Husqvarna 594025801

Covers

$37.99

$

Usually ships in 3-10 days

0

100

Husqvarna 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

51

Husqvarna 594025002

Plates

$17.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532193195

PULLEY.V.IDLER

$66.99

$

In Stock, Qty 10

0

1

Husqvarna 597959201

Decks

Note: 596 76 30-01 Kit SVC Deck Weldment

$512.99

$

Usually ships in 3-10 days

0

98

Husqvarna 593824001

STUD.W/"D"ANTI-ROTATION

$4.99

$

In Stock, Qty 20+

0

127

Husqvarna 596434404

Bolts

$5.99

$

In Stock, Qty 20+

0

83

Husqvarna 595533302

Keepers

$9.49

$

Usually ships in 3-10 days

0

76

Husqvarna 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 10

0

8

Husqvarna 595960202

Plates

$31.99

$

Usually ships in 3-10 days

0

264

Husqvarna 589392902

Retainers

$4.99

$

Usually ships in 3-10 days

0

81

Husqvarna 874760432

BOLT.HEX.FINISHED.1/4-20

$9.49

$

Usually ships in 3-10 days

0

104

Husqvarna 594025901

Covers

$37.99

$

Usually ships in 3-10 days

0

131

Husqvarna 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 596135701

GSPW Nuts

Note: RH

$3.99

$

In Stock, only 2 left!

0

58

Husqvarna 597252602

Plates

$2.49

$

Usually ships in 3-10 days

0

61

Husqvarna 594025202

Plates

$9.49

$

Usually ships in 3-10 days

0

14

Husqvarna 599244002

MOUNTS

$13.99

$

In Stock, Qty 5

0

33

Husqvarna 598856201

Mandrels

$74.99

$

Usually ships in 3-10 days

0

130

Husqvarna 596133201

Washers

$6.99

$

In Stock, only 3 left!

0

2

Husqvarna 532423062

PALNUT 1/4

$4.99

$

In Stock, only 2 left!

0

142

Husqvarna 597252302

Plates

$13.99

$

Usually ships in 3-10 days

0

106

Husqvarna 599698501

SPRINGS

$6.99

$

Usually ships in 3-10 days

0

78

Husqvarna 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$31.99

$

In Stock, only 4 left!

0

69

Husqvarna 597252201

Seals

$13.99

$

Usually ships in 3-10 days

0

90

Husqvarna 532199092

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

118

Husqvarna 594024502

Arms

$12.99

$

Usually ships in 3-10 days

0

17

Husqvarna 596134801

Nuts

$4.99

$

In Stock, Qty 15

0

117

Husqvarna 873900400

NUT T
(Superseded to 873680400)

$4.99

$

In Stock, Qty 16

0

72

Husqvarna 581454104

Chutes

$85.99

$

Usually ships in 3-10 days

0

85

Husqvarna 594024802

NEEDS DESCRIPTION

$34.99

$

Usually ships in 3-10 days

0

84

Husqvarna 589676102

KEEPER.BLT.PNT.MNDRL.PULL.6.25
(Superseded to 589676103)

$7.99

$

In Stock, Qty 12

0

27

Husqvarna 594024901

Belts

$62.99

$

Usually ships in 3-10 days

0

103

Husqvarna 599244102

SPACERS

$7.49

$

Usually ships in 3-10 days

0

73

Husqvarna 582478602

NUT FLG, NYLOCK, 1/4-20 GR G C

$2.49

$

In Stock, Qty 20+

0

12

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

$6.99

$

In Stock, Qty 20+

0

55

Husqvarna 597252702

Plates

$13.99

$

Usually ships in 3-10 days

0

10

Husqvarna 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

- -

Husqvarna 597959301

Decks

Note: "Includes housing, shaft assembly, and bearing only - pulley/nut/washer and blade bolt/washers not included"

$970.99

$

Usually ships in 3-10 days

0

7

Husqvarna 596321701

Screws

$3.99

$

In Stock, Qty 15

0

47

Husqvarna 584309301

SCREW.SEMS.7/16-20X1.HEX.HEAD
(Superseded to 532193003)

$8.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532197256

SRPING.TORSION.RETAINE

$6.49

$

In Stock, Qty 8

0

93

Husqvarna 532199470

RP ARM.BRAKE.MOWER.38"LH.TEX
(Superseded to 532400130)

$18.99

$

In Stock, only 2 left!

0

70

Husqvarna 532199972

CLUTCH.ASM.MANUAL.YT.PREDATORQ

$87.99

$

In Stock, Qty 8

0

64

Husqvarna 532425417

VIBRATION PAD

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532195945

PULLEY.MANDREL.5.438.P

$14.99

$

In Stock, Qty 20+

0

258

Husqvarna 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

166

Husqvarna 594024602

Brackets

$2.49

$

Usually ships in 3-10 days

0

123

Husqvarna 596136101

GSPW Bolts

$3.99

$

In Stock, Qty 5

0

89

Husqvarna 599244202

BRAKE.LEVER.ASM

$15.99

$

Usually ships in 3-10 days

0

35

Husqvarna 594024702

NEEDS DESCRIPTION

$34.99

$

Usually ships in 3-10 days

0

56

Husqvarna 597252802

Plates

$6.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

50

Husqvarna 595839602

Plates

$31.99

$

Usually ships in 3-10 days

0

82

Husqvarna 596134001

BOLT.RDHD.SHRT.NK.1/4-20X1-1/2

$2.49

$

Usually ships in 3-10 days

0

48

Husqvarna 596136001

Bolts

$4.99

$

In Stock, only 1 left!

0
